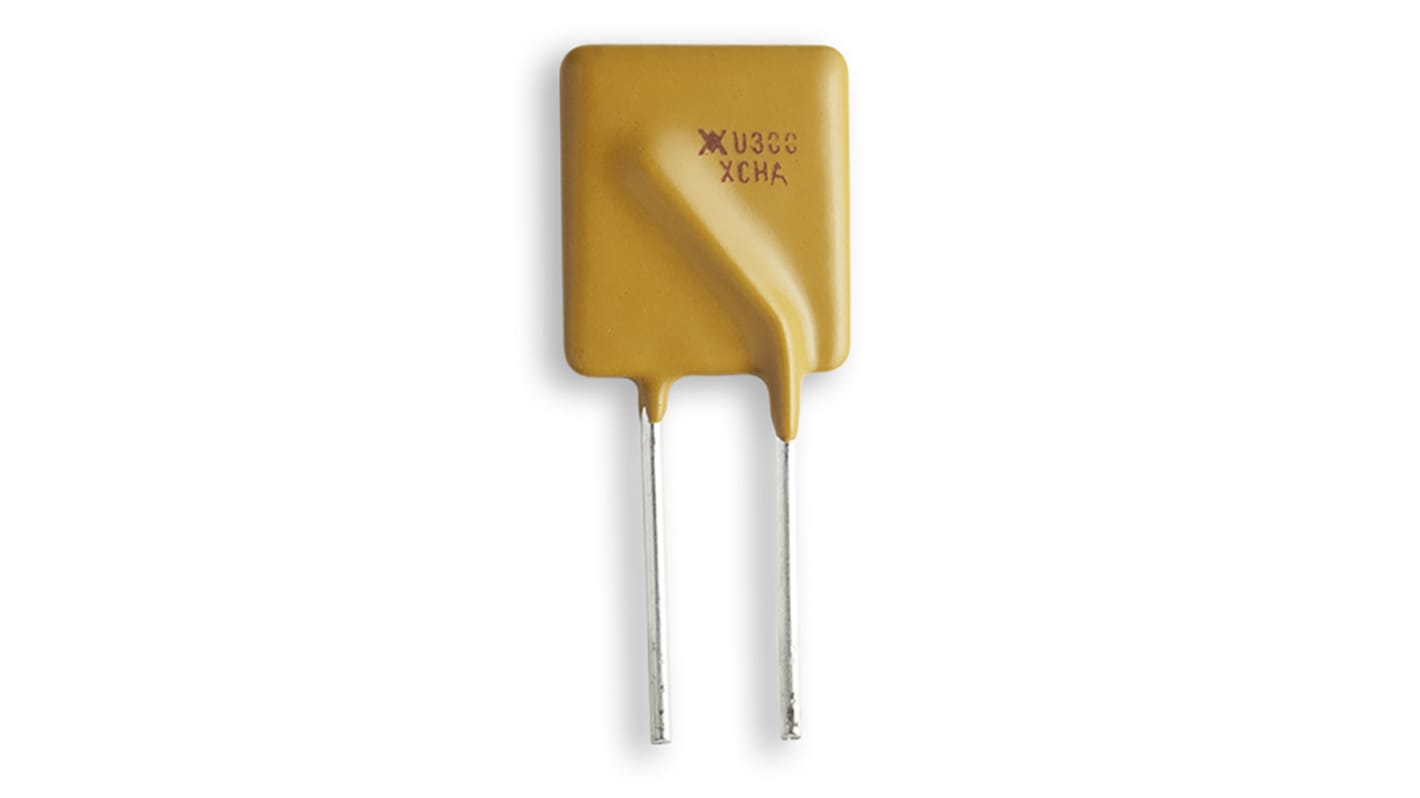

Wickmann 3 A Resettable Fuse, 30 V dc, 30 V ac
- RS Stock No.:
- 174-0830
- Mfr. Part No.:
- RF2611-000
- Brand:
- Wickmann
Subtotal (1 pack of 20 units)*
£5.46
(exc. VAT)
£6.56
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,300 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 20 + | £0.273 | £5.46 |
*price indicative
- RS Stock No.:
- 174-0830
- Mfr. Part No.:
- RF2611-000
- Brand:
- Wickmann
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wickmann | |
| Product Type | Resettable Fuse | |
| Trip Current | 6A | |
| Voltage | 30 V dc, 30 V ac | |
| Time to Trip | 10.8s | |
| Current Rating | 100 A | |
| Hold Current | 3A | |
| Length | 11.4mm | |
| Height | 16.5mm | |
| Width | 3 mm | |
| Minimum Resistance | 0.02Ω | |
| Maximum Resistance | 80mΩ | |
| Minimum Operating Temperature | -40°C | |
| Power Dissipation | 2W | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | TUV, CSA, CQC, UL, RoHS | |
| Series | RUEF | |
| Lead Orientation | Radial | |
| Select all | ||
|---|---|---|
Brand Wickmann | ||
Product Type Resettable Fuse | ||
Trip Current 6A | ||
Voltage 30 V dc, 30 V ac | ||
Time to Trip 10.8s | ||
Current Rating 100 A | ||
Hold Current 3A | ||
Length 11.4mm | ||
Height 16.5mm | ||
Width 3 mm | ||
Minimum Resistance 0.02Ω | ||
Maximum Resistance 80mΩ | ||
Minimum Operating Temperature -40°C | ||
Power Dissipation 2W | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals TUV, CSA, CQC, UL, RoHS | ||
Series RUEF | ||
Lead Orientation Radial | ||
- COO (Country of Origin):
- CN
The Littlefuse Wickmann RUEF Series, 30V DC PolySwitch lead-free radial leaded resettable PPTC device has 6A trip current and 10. 8s trip time. It is generally used in applications like Satellite video receivers, industrial controls, transformers, computer motherboards, modems, USB hubs, ports, battery packs, phones, fax machine, printers, analog and digital line cards.
Resettable and single-use overcurrent device
Wide range of form factor and termination methods
Devices compatible with high-volume electronics assembly
RoHS compliant
Lead-Free and Halogen-Free
