Wickmann Resettable Fuse, 125 V ac, 125V dc
- RS Stock No.:
- 174-0678
- Mfr. Part No.:
- 0251004.MRT1L
- Brand:
- Wickmann
Subtotal (1 pack of 10 units)*
£8.34
(exc. VAT)
£10.01
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 520 unit(s) shipping from 07 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £0.834 | £8.34 |
*price indicative
- RS Stock No.:
- 174-0678
- Mfr. Part No.:
- 0251004.MRT1L
- Brand:
- Wickmann
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wickmann | |
| Product Type | Resettable Fuse | |
| Trip Current | 4A | |
| Voltage | 125, 125V ac | |
| Current Rating | 62, 15mA | |
| Length | 7.11mm | |
| Height | 2.8mm | |
| Width | 2.8mm | |
| Terminal Material | Tin Plated Copper | |
| Minimum Resistance | 0.00446Ω | |
| Minimum Operating Temperature | -55°C | |
| Maximum Resistance | 0.02Ω | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | PSE, CCC, UL 94V-0, MIL-STD-202, TUV, QPL | |
| Body Material | Epoxy Coated, Pure Tin Coated Copper Wire Leads | |
| Fuse Speed | FF | |
| Series | 251 | |
| Package Type | Axial Leaded & Cartridge | |
| Select all | ||
|---|---|---|
Brand Wickmann | ||
Product Type Resettable Fuse | ||
Trip Current 4A | ||
Voltage 125, 125V ac | ||
Current Rating 62, 15mA | ||
Length 7.11mm | ||
Height 2.8mm | ||
Width 2.8mm | ||
Terminal Material Tin Plated Copper | ||
Minimum Resistance 0.00446Ω | ||
Minimum Operating Temperature -55°C | ||
Maximum Resistance 0.02Ω | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals PSE, CCC, UL 94V-0, MIL-STD-202, TUV, QPL | ||
Body Material Epoxy Coated, Pure Tin Coated Copper Wire Leads | ||
Fuse Speed FF | ||
Series 251 | ||
Package Type Axial Leaded & Cartridge | ||

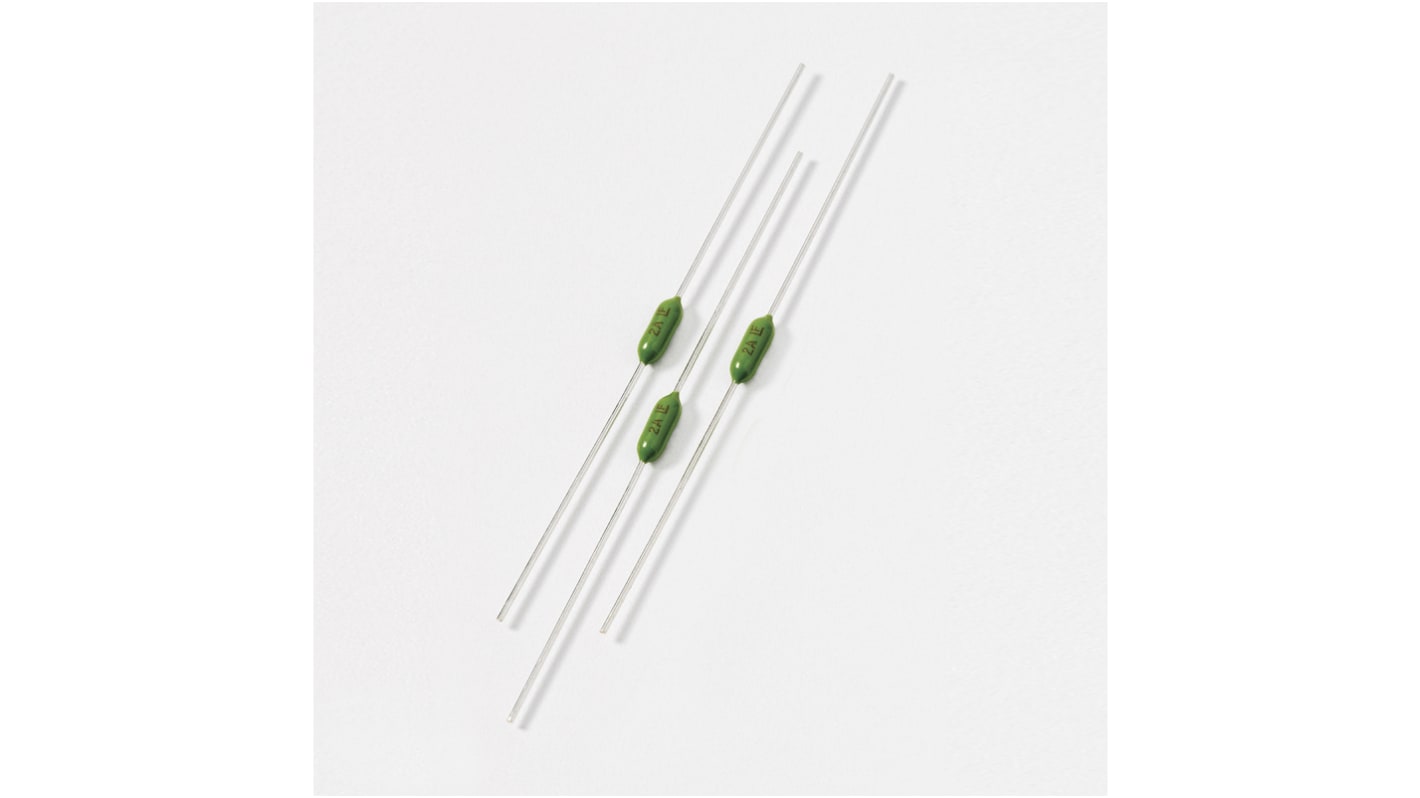

The PICO® II Very Fast-Acting Fuse is designed to meet an extensive array of performance characteristics in a space-saving subminiature package
Very fast-acting
Small size
Wide current rating range (62mA- 15A)
Halogen-free available
Wide operating temperature range
Low temperature rerating
