Wickmann 3A Resettable Fuse, 30V dc
- RS Stock No.:
- 174-0380
- Mfr. Part No.:
- 30R300UU
- Brand:
- Wickmann
Bulk discount available
Subtotal (1 box of 500 units)*
£231.00
(exc. VAT)
£277.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 500 unit(s) ready to ship
- Plus 999,999,000 unit(s) shipping from 18 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 500 - 500 | £0.462 | £231.00 |
| 1000 - 2000 | £0.447 | £223.50 |
| 2500 + | £0.434 | £217.00 |
*price indicative
- RS Stock No.:
- 174-0380
- Mfr. Part No.:
- 30R300UU
- Brand:
- Wickmann
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wickmann | |
| Trip Current | 6A | |
| Voltage Rating | 30V dc | |
| Time to Trip | 10.8s | |
| Hold Current | 3A | |
| Maximum Current | 40 A | |
| Length | 11.4mm | |
| Height | 19.2mm | |
| Width | 3mm | |
| Terminal Material | Tin Plated Copper | |
| Minimum Resistance | 0.02Ω | |
| Maximum Resistance | 80mΩ | |
| Power Dissipation | 2W | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
| Series | 30R | |
| Operating Temperature Range | -40 → +85 °C | |
| Fuse Speed | F | |
| Dimensions | 11.4 x 3 x 19.2mm | |
| Body Material | Polymer | |
Select all | ||
|---|---|---|
Brand Wickmann | ||
Trip Current 6A | ||
Voltage Rating 30V dc | ||
Time to Trip 10.8s | ||
Hold Current 3A | ||
Maximum Current 40 A | ||
Length 11.4mm | ||
Height 19.2mm | ||
Width 3mm | ||
Terminal Material Tin Plated Copper | ||
Minimum Resistance 0.02Ω | ||
Maximum Resistance 80mΩ | ||
Power Dissipation 2W | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Series 30R | ||
Operating Temperature Range -40 → +85 °C | ||
Fuse Speed F | ||
Dimensions 11.4 x 3 x 19.2mm | ||
Body Material Polymer | ||
- COO (Country of Origin):
- CN

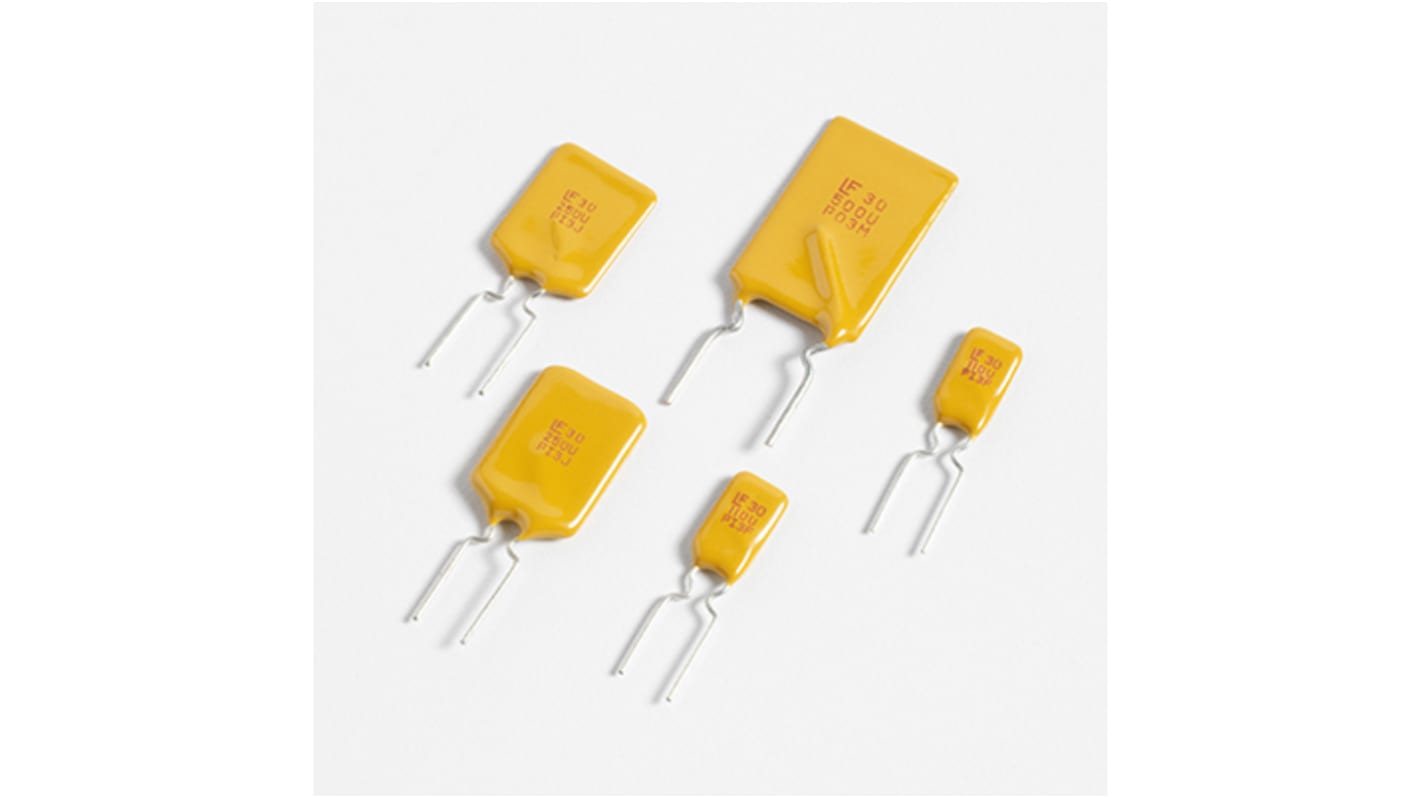

The 30R series radial leaded device is designed to provide overcurrent protection for low voltage (≤30V) applications where space is not a concern and resettable protection is preferred
Lead-free
Fast time-to-trip
Cured, flame retardant expoxy polymer insulating material
Fast time-to-trip
Cured, flame retardant expoxy polymer insulating material
