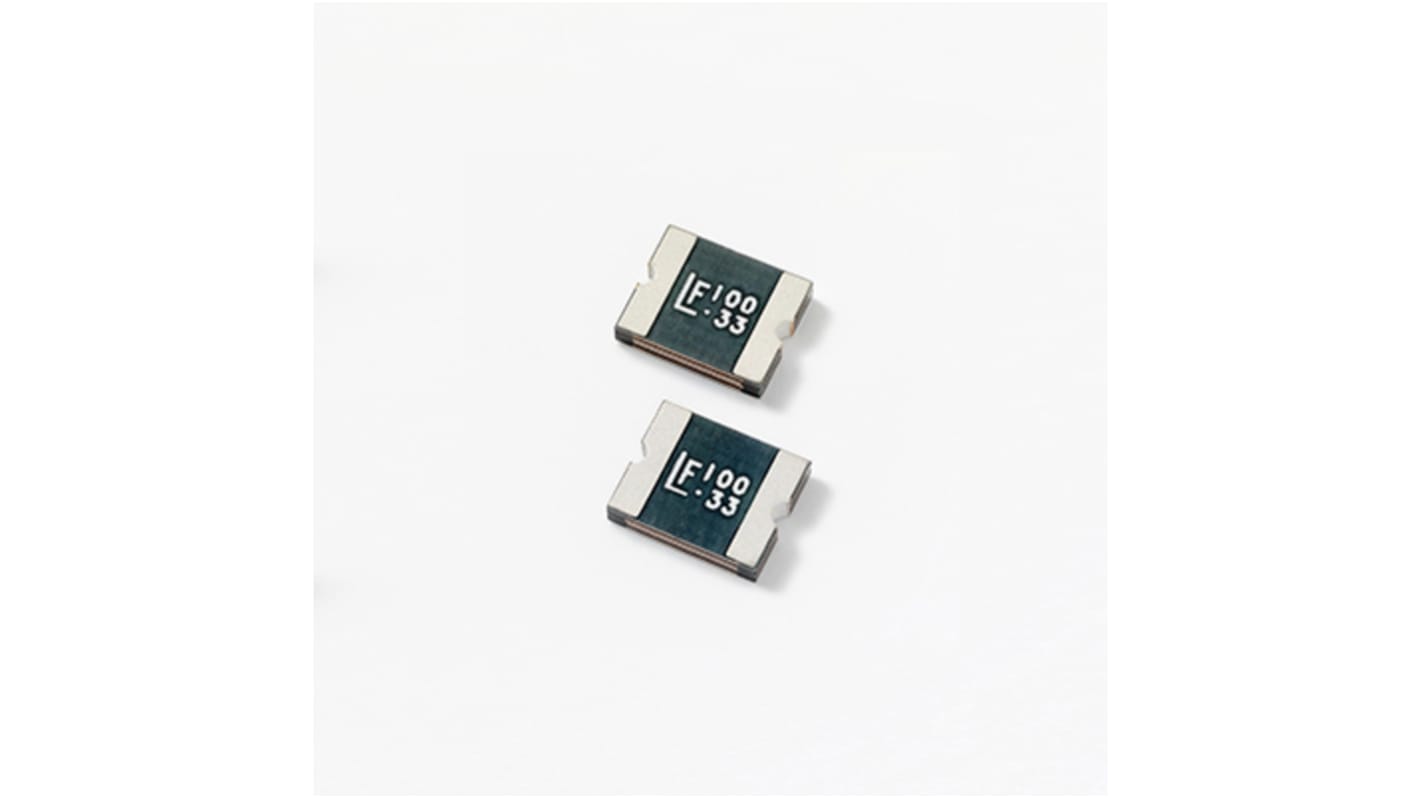

Wickmann 0.75A Resettable Fuse, 60V dc
- RS Stock No.:
- 174-0352
- Mfr. Part No.:
- 2016L075/60MR
- Brand:
- Wickmann
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 174-0352
- Mfr. Part No.:
- 2016L075/60MR
- Brand:
- Wickmann
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wickmann | |
| Trip Current | 1.5A | |
| Voltage Rating | 60V dc | |
| Time to Trip | 0.5s | |
| Hold Current | 0.75A | |
| Maximum Current | 20 A | |
| Length | 5.44mm | |
| Height | 2mm | |
| Width | 4.43mm | |
| Minimum Resistance | 0.13Ω | |
| Maximum Resistance | 900mΩ | |
| Power Dissipation | 1.4W | |
| Minimum Operating Temperature | -40°C | |
| Package Size | 5041 | |
| Maximum Operating Temperature | +85°C | |
| Operating Temperature Range | -40 → +85 °C | |
| Series | 2016L | |
| Dimensions | 5.44 x 4.43 x 2mm | |
| Fuse Speed | F | |
| Select all | ||
|---|---|---|
Brand Wickmann | ||
Trip Current 1.5A | ||
Voltage Rating 60V dc | ||
Time to Trip 0.5s | ||
Hold Current 0.75A | ||
Maximum Current 20 A | ||
Length 5.44mm | ||
Height 2mm | ||
Width 4.43mm | ||
Minimum Resistance 0.13Ω | ||
Maximum Resistance 900mΩ | ||
Power Dissipation 1.4W | ||
Minimum Operating Temperature -40°C | ||
Package Size 5041 | ||
Maximum Operating Temperature +85°C | ||
Operating Temperature Range -40 → +85 °C | ||
Series 2016L | ||
Dimensions 5.44 x 4.43 x 2mm | ||
Fuse Speed F | ||
- COO (Country of Origin):
- CN
The 2016L series device provides surface mount overcurrent protection for low voltage (≤60V) applications where resettable protection is desired.
Features
Lead-free
Fast response to fault currents
High voltage
Low Profile
Compatible with high temperature solders
Lead-free
Fast response to fault currents
High voltage
Low Profile
Compatible with high temperature solders
