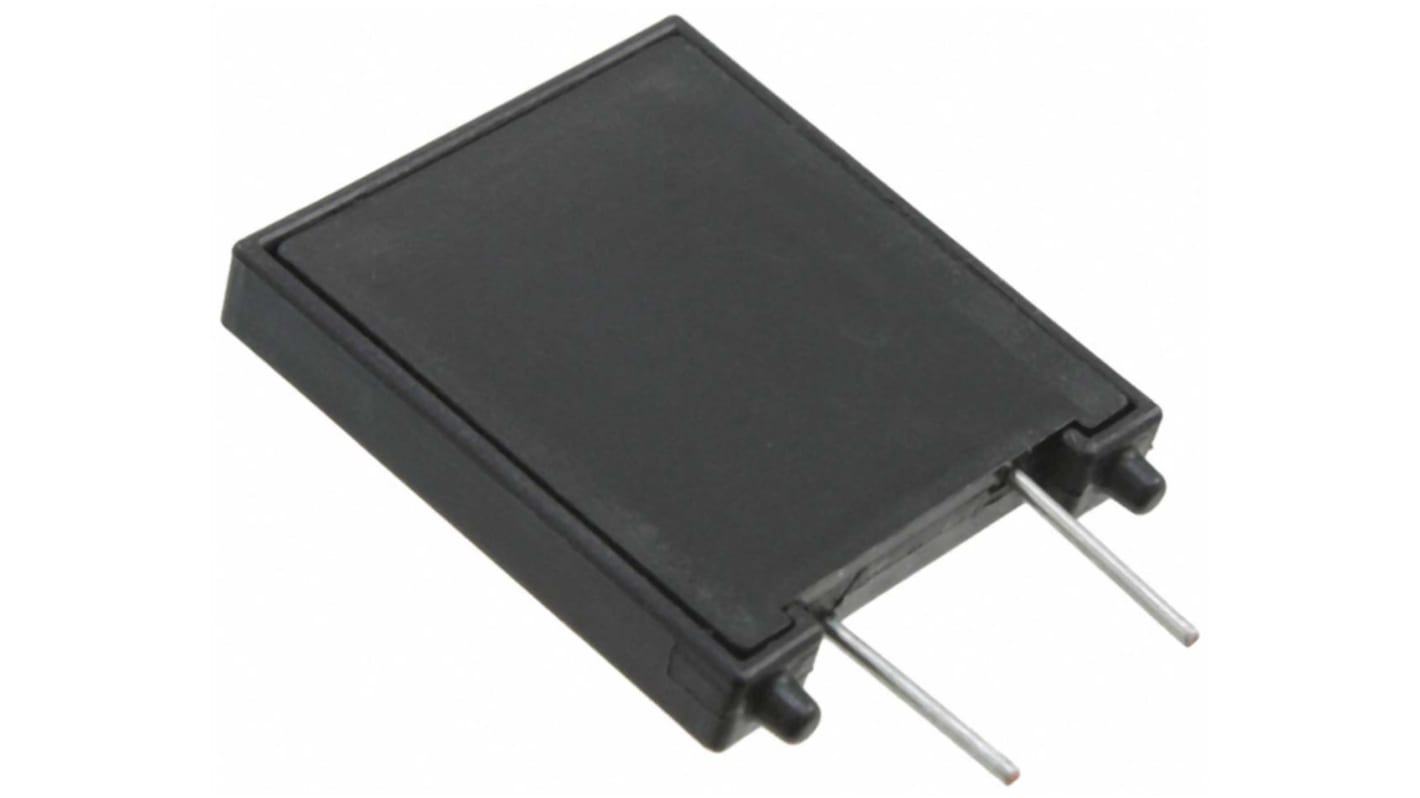

Littelfuse 1.25A Resettable Fuse, 240V ac
- RS Stock No.:
- 164-8198
- Mfr. Part No.:
- LVB125
- Brand:
- Littelfuse
Subtotal (1 bag of 250 units)*
£403.75
(exc. VAT)
£484.50
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Bag* |
|---|---|---|
| 250 + | £1.615 | £403.75 |
*price indicative
- RS Stock No.:
- 164-8198
- Mfr. Part No.:
- LVB125
- Brand:
- Littelfuse
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Trip Current | 2.5A | |
| Voltage Rating | 240V ac | |
| Time to Trip | 5s | |
| Hold Current | 1.25A | |
| Length | 25.2mm | |
| Height | 27.2mm | |
| Width | 4.6mm | |
| Terminal Material | Tin Plated Copper | |
| Minimum Resistance | 0.152Ω | |
| Maximum Resistance | 292mΩ | |
| Power Dissipation | 4W | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
| Lead Orientation | Radial | |
| Dimensions | 25.2 x 27.2 x 4.6mm | |
| Series | LVB | |
| Operating Temperature Range | -40 → +85 °C | |
| Select all | ||
|---|---|---|
Brand Littelfuse | ||
Trip Current 2.5A | ||
Voltage Rating 240V ac | ||
Time to Trip 5s | ||
Hold Current 1.25A | ||
Length 25.2mm | ||
Height 27.2mm | ||
Width 4.6mm | ||
Terminal Material Tin Plated Copper | ||
Minimum Resistance 0.152Ω | ||
Maximum Resistance 292mΩ | ||
Power Dissipation 4W | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Lead Orientation Radial | ||
Dimensions 25.2 x 27.2 x 4.6mm | ||
Series LVB | ||
Operating Temperature Range -40 → +85 °C | ||
