    RF Solutions ELITE-S4 Remote Control System & Kit,869.5MHz

    RF Solutions
    RS Stock No.:
    Mfr. Part No.:
    RF Solutions
    View all Remote Control Systems
    Discontinued product
    RS Stock No.:
    Mfr. Part No.:
    RF Solutions

    Legislation and Compliance

    COO (Country of Origin):

    Product Details

    ELITE-S4 Wireless Remote Control kits

    The ELITE-S4 system is a very robust and easy to use remote control system. Each of the four 230Vac relay outputs on the ELITE remote control receiver can be set to operate in a timed, momentary or latching mode. Two kits are available: the ELITE-S4 comes with an ELITE-T8 short-range (150m) transmitter and the ELITE-XS4 comes with an ELITE-XT6 long-range (1000m) transmitter.

    No of Tx buttons: 4
    No of Rx channels: 4
    RF Carrier frequency: 869.5MHz ISM band
    RF Power Output: +20dBm (ELITE-XS4), +5dBm (ELITE-S4)
    Line-of-Sight Range: 1000m (ELITE-XS4), 250m (ELITE-S4)
    High-security RF protocol
    Receiver outputs: 4 x switched 230Vac
    Transmitter power supply: 3 x AAA battery (ELITE-XS4), CR2032 coin cell (ELITE-S4)
    Receiver power supply: 230Vac
    Operating temperature range: -10 to +50°C
    Transmitter dimensions: 90 x 54 x 27mm (ELITE-XS4), 86 x 54 x 7mm (ELITE-S4)

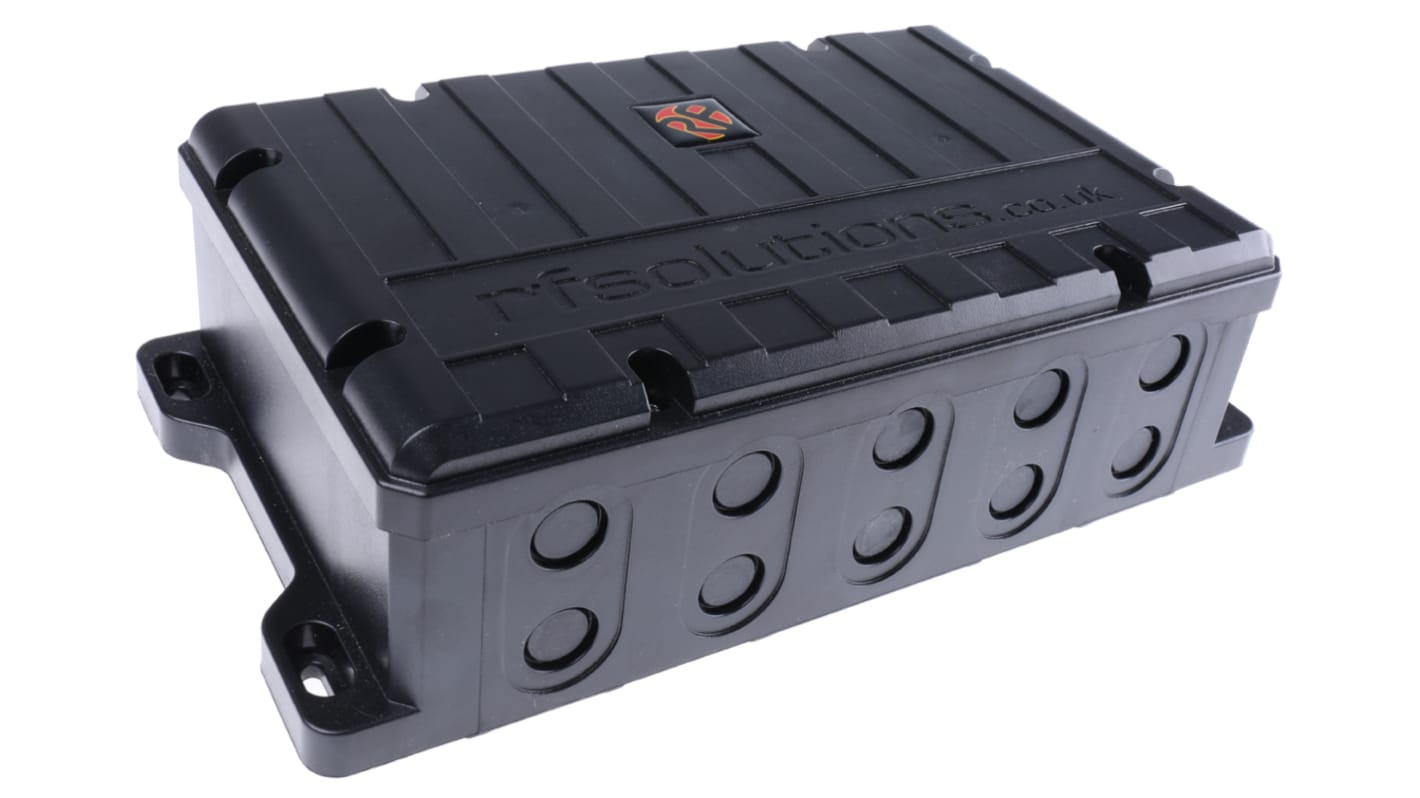

    Receiver dimensions: 267 x 148 x 78mm
    Transmitter enclosure rating: IP68 (ELITE-XS4)
    Receiver enclosure rating: IP68
    Applications: Industrial control, Electric gates, Roller shutter doors, Garage doors

    RS Product Codes
    125-8176 FOBBER-8T6 - Fobber 6 Button, 6 Channel Remote Control Key Fob to use with 793-4420
    860-7270 TRAP-T4 Rugged transmitter, 4-button to use with 793-4424
    793-4446 ELITE-RX Receiver, 4-channel




    Number of Channels4
    Number of Key Fob Buttons6
    Nominal Supply Voltage230 (Receiver) V ac, 3 (Remote) V
    Dimensions267 x 78 x 148 mm (Receiver)/54 x 7 x 86 mm (Remote)
    Depth7 (Remote) mm, 78 (Receiver) mm
    Height148 (Receiver) mm, 86 (Remote) mm
    Maximum Operating Temperature+50°C
    Minimum Operating Temperature-10°C
    Width267 (Receiver) mm, 54 (Remote) mm
