RF Solutions PROFLY16-433F Remote Control System & Kit,433.92MHz
- RS Stock No.:
- 704-3269
- Mfr. Part No.:
- PROFLY16-433F
- Brand:
- RF Solutions
Image representative of range
Discontinued
- RS Stock No.:
- 704-3269
- Mfr. Part No.:
- PROFLY16-433F
- Brand:
- RF Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RF Solutions | |
| Frequency | 433.92MHz | |
| Modulation | FM | |
| Number of Channels | 16 | |
| Dimensions | 315 x 235 x 130mm | |
| Depth | 235mm | |
| Height | 130mm | |
| Maximum Operating Temperature | +55°C | |
| Maximum Supply Voltage | 240V ac | |
| Minimum Operating Temperature | 0°C | |
| Minimum Supply Voltage | 110V ac | |
| Width | 315mm | |
| Select all | ||
|---|---|---|
Brand RF Solutions | ||
Frequency 433.92MHz | ||
Modulation FM | ||
Number of Channels 16 | ||
Dimensions 315 x 235 x 130mm | ||
Depth 235mm | ||
Height 130mm | ||
Maximum Operating Temperature +55°C | ||
Maximum Supply Voltage 240V ac | ||
Minimum Operating Temperature 0°C | ||
Minimum Supply Voltage 110V ac | ||
Width 315mm | ||
- COO (Country of Origin):
- GB

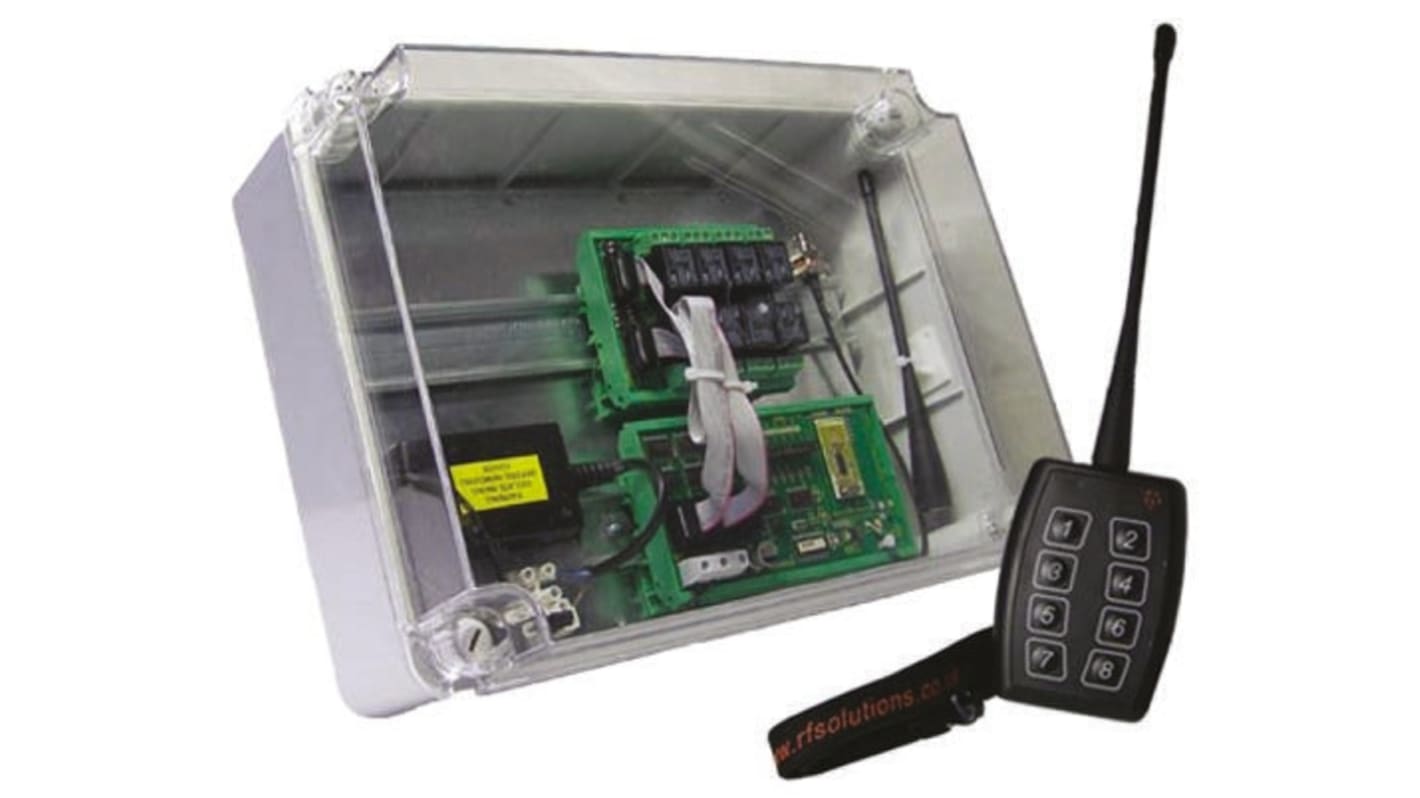

PROFLY Industrial Wireless Remote Control Kit
The PROFLY Remote Control System is designed for the rugged industrial environment with enclosures rated at IP65. Each of the 8 or 16 outputs on the PROFLY remote control system can be set to operate in a timed, momentary or latching mode.
No of channels: 8 (PROFLY8x) or 16 (PROFLY16x)
Carrier frequency: 434.92MHz ISM Band
Modulation: FM
Secure transmission protocol
Range: up to 100m (line-of-sight)
Transmitter power supply: CR2032 coin cell
Receiver power supply: 12/24Vac/dc (PROFLYx), 110/240Vac (PROFLYxF)
Receiver outputs: 8 x relays rated 12A @ 230Vac (PROFLY8), 16 x relays rated 12A @ 230Vac (PROFLY16)
Receiver fitted with interchangeable modules on industrial standard DIN Rails
Transmitter dimensions: 90 x 54 x 27mm
Receiver dimensions: 315 x 235 x 130mm
Receiver enclosure rating: IP65
Operating temperature range: 0 to +55°C
Applications: Wireless lighting control, Remote outdoor switching, Industrial control, Conveyors, Plant equipment
RS Product Codes
872-8975 PROFLY16 Remote control kit
704-3265 PROFLY8F-433 Remote control kit
704-3269 PROFLY16F-433 Remote control kit
Carrier frequency: 434.92MHz ISM Band
Modulation: FM
Secure transmission protocol
Range: up to 100m (line-of-sight)
Transmitter power supply: CR2032 coin cell
Receiver power supply: 12/24Vac/dc (PROFLYx), 110/240Vac (PROFLYxF)
Receiver outputs: 8 x relays rated 12A @ 230Vac (PROFLY8), 16 x relays rated 12A @ 230Vac (PROFLY16)
Receiver fitted with interchangeable modules on industrial standard DIN Rails
Transmitter dimensions: 90 x 54 x 27mm
Receiver dimensions: 315 x 235 x 130mm
Receiver enclosure rating: IP65
Operating temperature range: 0 to +55°C
Applications: Wireless lighting control, Remote outdoor switching, Industrial control, Conveyors, Plant equipment
RS Product Codes
872-8975 PROFLY16 Remote control kit
704-3265 PROFLY8F-433 Remote control kit
704-3269 PROFLY16F-433 Remote control kit
Approvals
CE
