The SABRE Remote Control System is designed for the rugged industrial environment with enclosures rated at IP68. Each of the four outputs on the SABRE remote control system can be set to operate in a timed, momentary or latching mode.

No of channels (buttons): 1 to 8
Carrier frequency: 869.5MHz ISM Band
RF Power Output: +20dBm
Modulation: FM
Range: up to 4000m (line-of-sight)
Transmitter power supply: 4 x AAA battery
Receiver power supply: 12/24Vac/dc or 230Vac
Receiver outputs: 4 x relays rated 6A @ 230Vac
Transmitter dimensions: 154 x 85 x 48mm
Receiver dimensions: 112 x 42 x 130mm
Enclosure rating: IP68
One touch ’easy-learn’ process
Operating temperature range: -10 to +50°C
Applications: Wireless lighting control, Remote outdoor switching, Industrial control, Conveyors, Plant equipment

RS Product Codes
793-4430 SABRE-S4L Remote control kit
793-4474 SABRE-T1 Rugged transmitter, 1-button
793-4483 SABRE-T3 Rugged transmitter, 3-button
793-4486 SABRE-T4 Rugged transmitter, 4-button

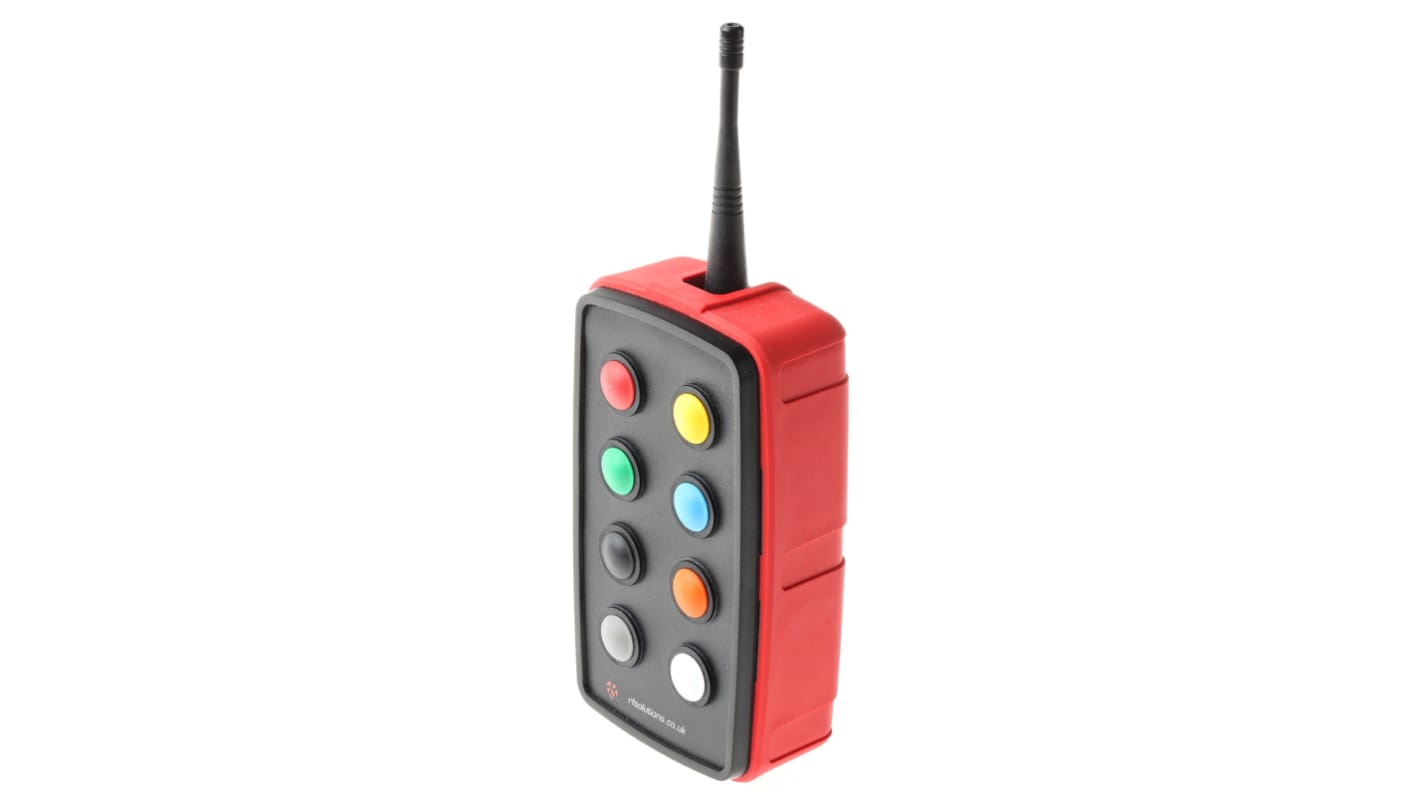

793-4480 SABRE-T8 Rugged transmitter, 8-button
793-4442 ELITE-RXL Rugged receiver, 4-channel

CE

Kit: SABRE-T4 transmitter, ELITE-RXL receiver
