RF Solutions Remote Control Base Station FIREFLY-TX2, Transmitter, 433.92MHz, FM
- RS Stock No.:
- 482-281
- Mfr. Part No.:
- FIREFLY-TX2
- Brand:
- RF Solutions
View this category
21 In stock - FREE next working day delivery available
6 available from Europe for delivery within 1 working day(s).
Price Each
£50.95
(exc. VAT)
£61.14
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £50.95 |
| 5 + | £48.41 |
- RS Stock No.:
- 482-281
- Mfr. Part No.:
- FIREFLY-TX2
- Brand:
- RF Solutions
- COO (Country of Origin):
- GB
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

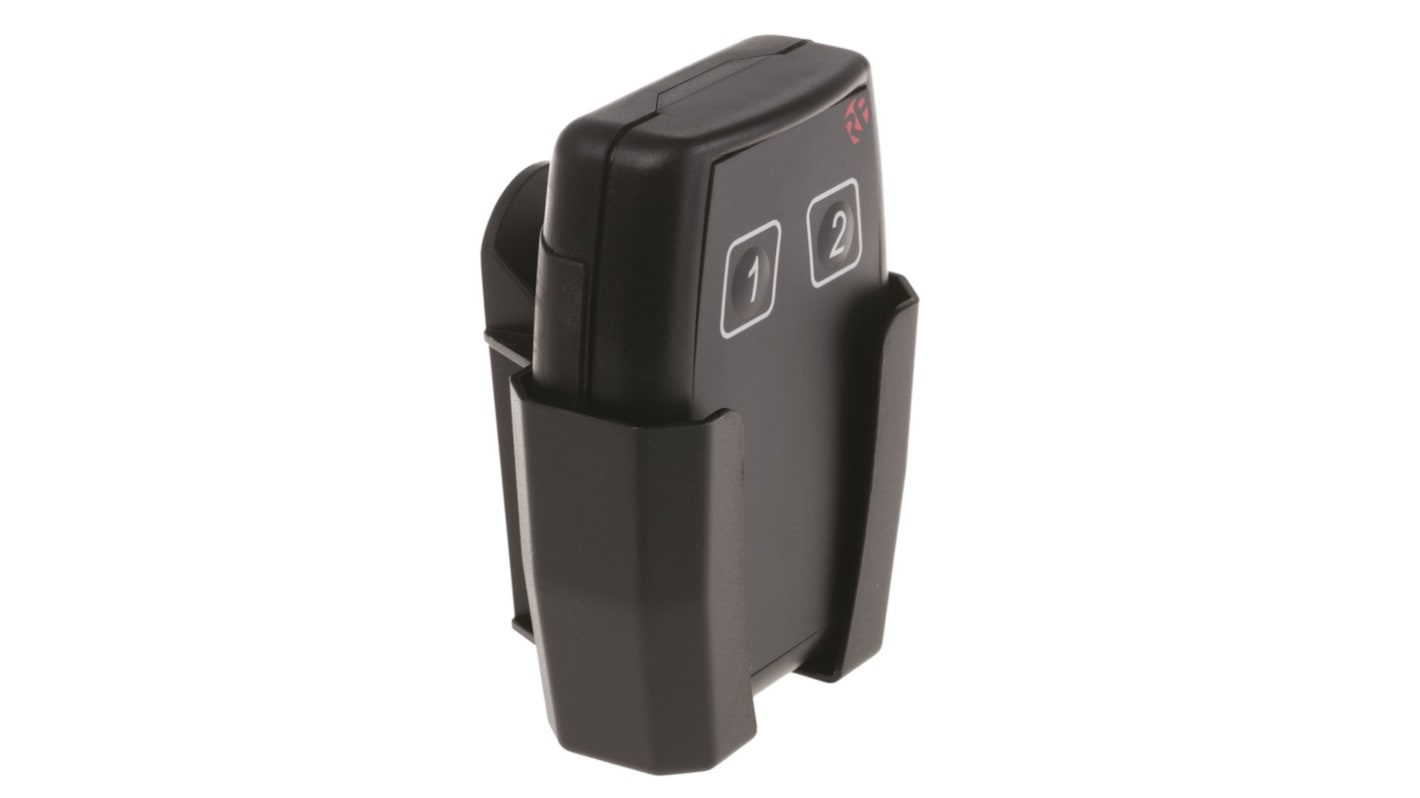

FIREFLY-TX Wireless Remote Control Transmitter
FIREFLY-TXn remote control transmitters are available in 1-, 2- and 4-button versions and are compatible with the VIPER remote control system. An optional sealing kit makes the unit weatherproof to IP67 standard.
No of Tx buttons: up to 4
Carrier frequency: 433.92MHz ISM band
RF Power Output: +5dBm
Modulation: FM
High-security RF protocol
Power supply: CR2032 coin cell
Operating temperature range: -10 to +50°C
Dimensions: 90 x 54 x 27mm
Enclosure rating: IP67 with optional sealing kit
Applications: Wireless lighting control, Electric gates, Roller shutter doors, Garage doors
RS Product Codes
482-291 FIREFLY-TX1 Transmitter, 1-Button
482-281 FIREFLY-TX2 Transmitter, 2-Button
482-285 FIREFLY-TX4 Transmitter, 4-Button
482-269 FIREFLY-TX-IPKIT Transmitter Sealing Kit to provide IP67 weatherproofing
672-9038 VIPER-S1 System 1-Button kit
672-9031 VIPER-S2 System 2-Button kit
672-9035 VIPER-S4 System 4-Button kit
Carrier frequency: 433.92MHz ISM band
RF Power Output: +5dBm
Modulation: FM
High-security RF protocol
Power supply: CR2032 coin cell
Operating temperature range: -10 to +50°C
Dimensions: 90 x 54 x 27mm
Enclosure rating: IP67 with optional sealing kit
Applications: Wireless lighting control, Electric gates, Roller shutter doors, Garage doors
RS Product Codes
482-291 FIREFLY-TX1 Transmitter, 1-Button
482-281 FIREFLY-TX2 Transmitter, 2-Button
482-285 FIREFLY-TX4 Transmitter, 4-Button
482-269 FIREFLY-TX-IPKIT Transmitter Sealing Kit to provide IP67 weatherproofing
672-9038 VIPER-S1 System 1-Button kit
672-9031 VIPER-S2 System 2-Button kit
672-9035 VIPER-S4 System 4-Button kit
Supplied with
Transmitters: Lanyard, Wall-Holster. Sealing Kit: Belt Clip
Specifications
| Attribute | Value |
| Type | Transmitter |
| Frequency | 433.92MHz |
| Modulation | FM |
| Number of Channels | 2 |
| Nominal Supply Voltage | 3V |
| Dimensions | 90 x 54 x 27mm |
| Depth | 54mm |
| Height | 27mm |
| Maximum Operating Temperature | +55°C |
| Minimum Operating Temperature | 0°C |
| Width | 90mm |
