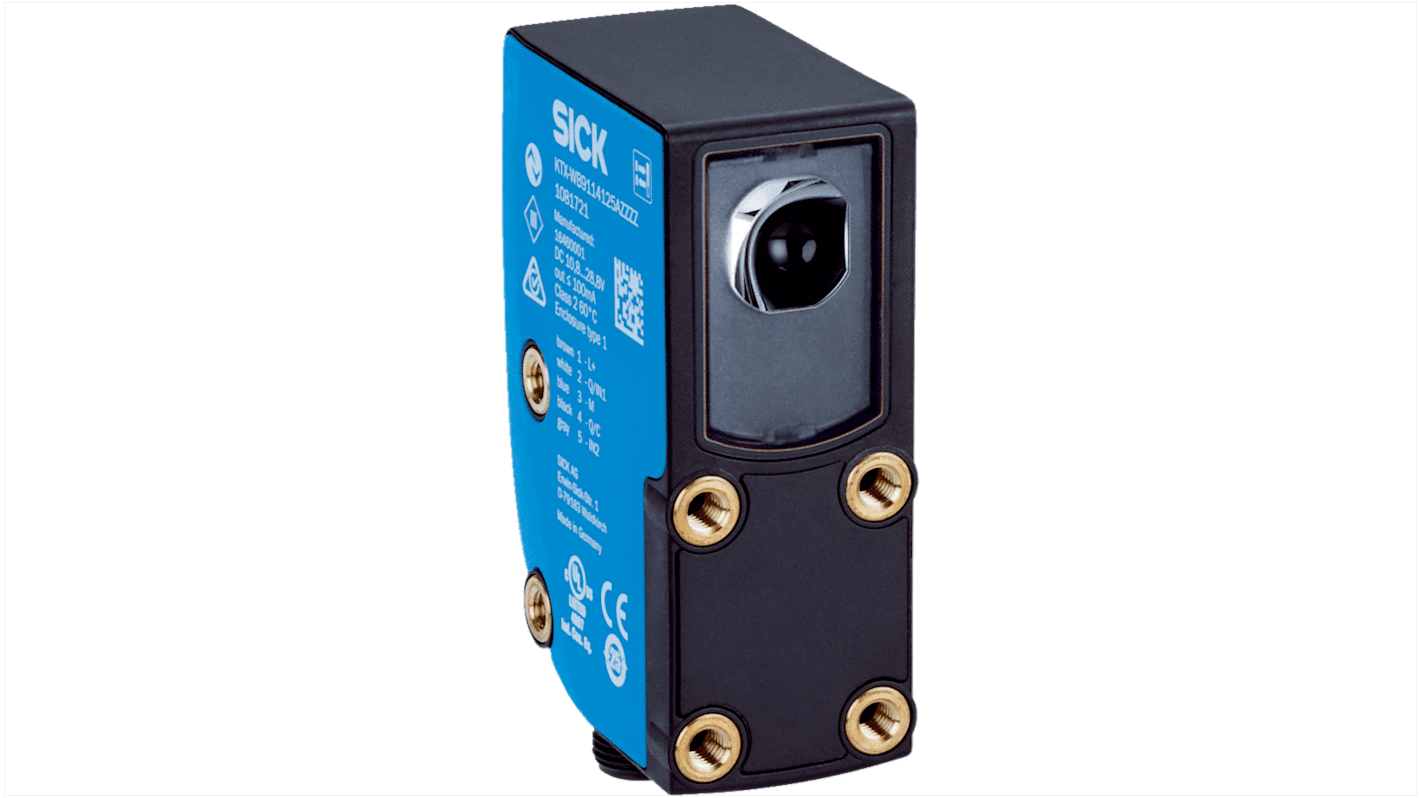

SICK Contrast Sensor RGB LED 13 mm, PNP, 100 mA, IP67 28.8V

View all Registration Sensors

Subtotal (1 unit)*

£489.19

(exc. VAT)

£587.03

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later
Units
Per unit
1 +£489.19

*price indicative

RS Stock No.:
285-9633
Mfr. Part No.:
KTX-WP92141252ZZZZ
Brand:
SICK
Find similar products by selecting one or more attributes.
Select all

Brand

SICK

Product Type

Contrast Sensor

Light Source

RGB LED

Output Type

PNP

Maximum Current

100mA

Switching Frequency

50kHz

Terminal Type

M12 Connector

LED Status Display

Yes

Maximum Supply Voltage

28.8V

Series

KTX

Housing Material

Vistal

IP Rating

IP67

Maximum Detection

13mm

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

60°C

Standards/Approvals

CE, cULus, UKCA

SICK KTX Series Contrast Sensor, 13mm Maximum Detection, IP67 - KTX-WP92141252ZZZZ


This contrast sensor is a Compact device designed to detect contrast differences in industrial environments. It operates across a wide temperature range and is intended for integration via a standard connector, providing identifiable status via an integral LED. Built for continuous use in automation and electronics contexts, it offers a small-footprint sensing solution with robust environmental protection.

Features and Benefits:


• RGB LED status display for immediate signal recognition
• PNP output enabling easy positive-switching interface
• 50 kHz switching frequency for high-speed detection capability
• 13mm maximum detection range for close-quarters sensing
• IP67 ingress protection for use in washdown or dusty areas
• 100 mA maximum current consumption for low-power integration

Applications


• Suitable for print and label edge detection on automated lines
• Ideal for colour-contrast inspection on assembly conveyors
• Used with machine-vision pre-sorting to trigger downstream actions
• Can be used for material presence checks in Compact enclosures
• Used for robotics end-effector feedback where space is limited

What connector type is used to integrate the device into control systems?


It connects via an M12 connector, which simplifies wiring to PLCs and I/O modules.

How does the sensor handle thermal extremes during continuous operation?


It operates reliably between -20 °C and 60 °C to suit cold storage and heated production zones.

What housing material aids durability in industrial settings?


The body is MADE from Vistal, providing a resilient enclosure against mechanical and environmental stress.
