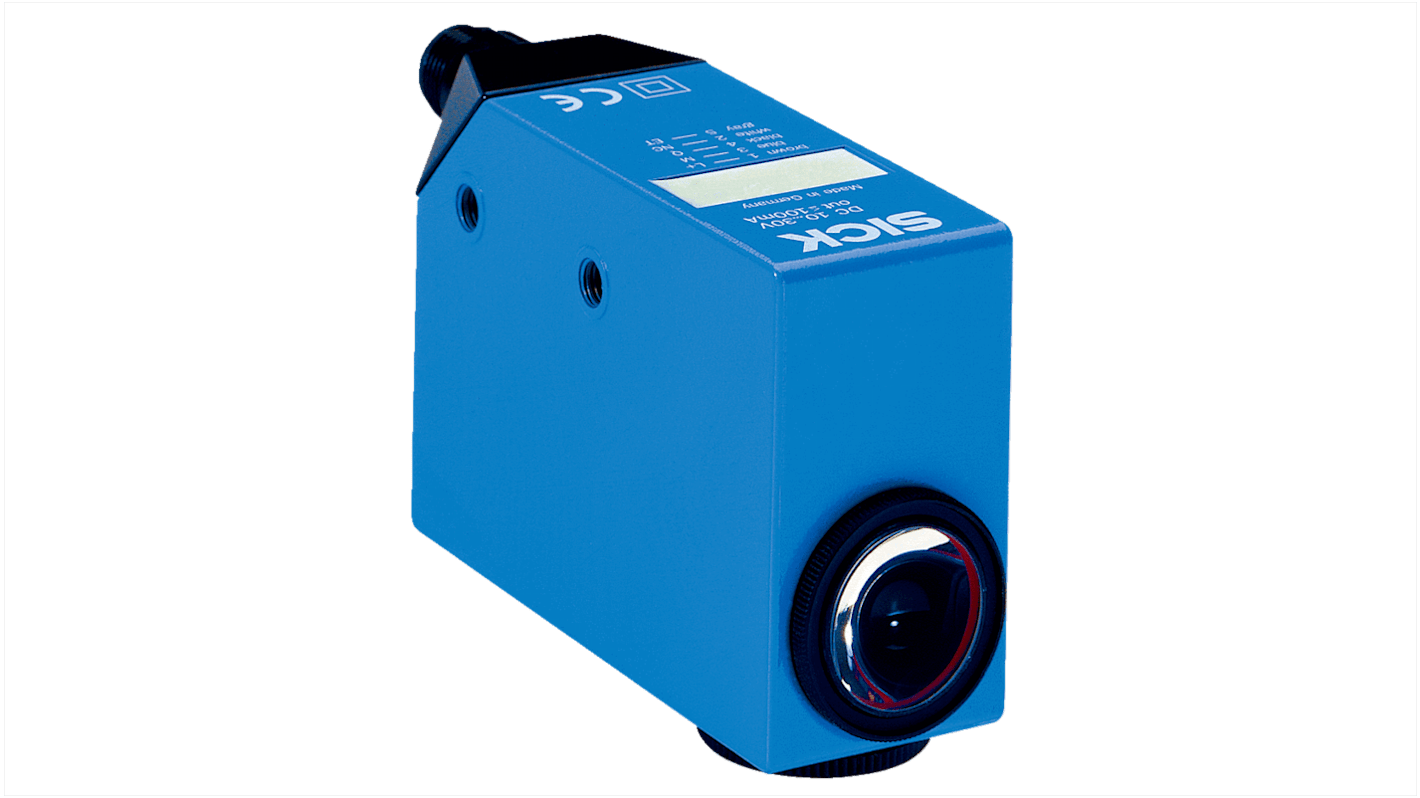

SICK Colour Sensors 12.5 mm, RGB LED, PNP, 120 mA, 10 → 30 V dc, IP67

View all Registration Sensors
Unavailable
RS will no longer stock this product.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
SICK Colour Sensors 13 m, LED IO-Link, Push Pull, 100 mA, 28.8 V dc, IP67
RS Stock No.
445-837

Each

£815.80

(exc. VAT)

£978.96

(inc. VAT)

RS Stock No.:
285-1062
Mfr. Part No.:
CS84-P1112
Brand:
SICK
Find similar products by selecting one or more attributes.
Select all

Brand

SICK

Detection Range

12.5 mm

Light Source

RGB LED

Output Type

PNP

Maximum Current

120 mA

Switching Frequency

1 kHz, 3.5 kHz, 500 Hz

Electrical Connection

Male Connector M12

Supply Voltage

10 → 30 V dc

LED Status Display

Yes

Terminal Type

M12

Housing Material

Die Cast Zinc

Series

CS84

IP Rating

IP67

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

+55°C

Mounting Type

PCB Mount

COO (Country of Origin):
DE

Overview


The CS8 Color sensors offers High-performance color sensing. The ability to teach up to four colors can lead to faster changeovers and shorter downtime. The CS8 series offers high switching speeds as fast as 6 kHz (85 μsec) – enabling higher throughput. And, the sensor maintains the extreme precision of the light spot

this sharp, well-defined spot provides tighter process control and more consistent object detection.

A bar graph display enables easy setup and provides information about the color quality and detection reliability.

At a glance


One (CS8-1) or four (CS8-4) colors can be saved
12.5 mm or 60 mm sensing distance
Fast response time up to 85 μs
High resolution color
Bar graph display shows the correlation of the colors
Extremely precise light spot and high resolution
Metal housing with two light exits (interchangeable)

Your Benefit


Identify and store up to four colors. No need to reprogram the sensor for changeovers, reducing downtime.
High resolution colors can be matched exactly for better process reliability
Maintains the extreme precision of the light spot, enabling a consistent object detection
A bar graph display provides information about the color quality and detection reliability, ensuring simple process monitoring
Broad spectrum of color tolerances enables more flexible use
Fast response times at high speeds for reliable detection
Detection reliability is not affected by varying temperatures

Applications
