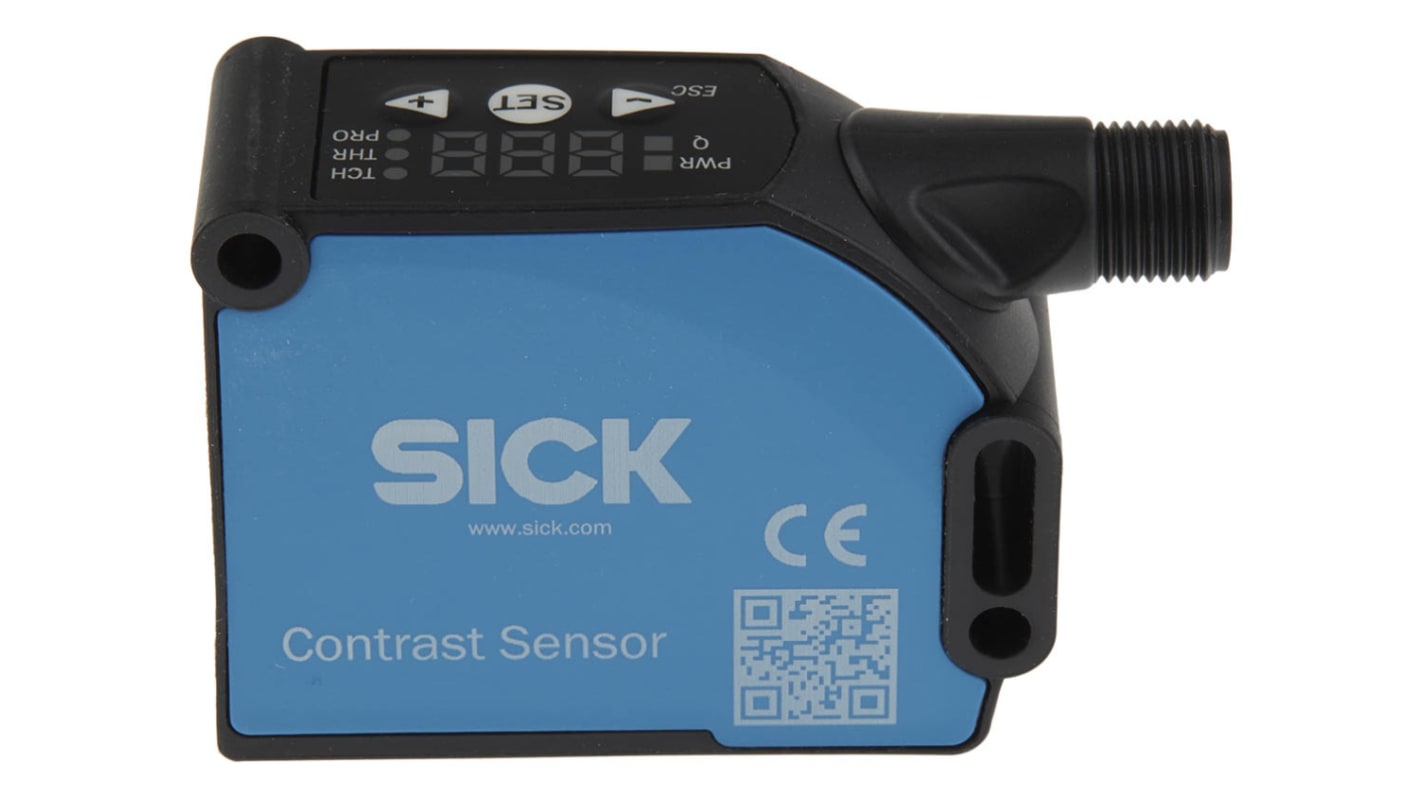

SICK Contrast Sensors 13 mm, RGB LED, Push-Pull, 100 mA, 10.8 → 28.8 V dc, IP67
- RS Stock No.:
- 180-6344
- Mfr. Part No.:
- KTS-WB9114115AZZZZ
- Brand:
- SICK
Subtotal (1 unit)*
£447.16
(exc. VAT)
£536.59
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 3 unit(s) shipping from 26 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £447.16 |
*price indicative
- RS Stock No.:
- 180-6344
- Mfr. Part No.:
- KTS-WB9114115AZZZZ
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SICK | |
Detection Range | 13 mm | |
Light Source | RGB LED | |
Output Type | Push-Pull | |
Maximum Current | 100 mA | |
Switching Frequency | 50 kHz | |
Electrical Connection | M12 Male Connector | |
Supply Voltage | 10.8 → 28.8 V dc | |
LED Status Display | Yes | |
Terminal Type | M12 Male 5-pin Connector | |
Housing Material | Vistal | |
Series | KTS | |
IP Rating | IP67 | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +60°C | |
Mounting Type | Panel Mount | |
Select all | ||
---|---|---|
Brand SICK | ||
Detection Range 13 mm | ||
Light Source RGB LED | ||
Output Type Push-Pull | ||
Maximum Current 100 mA | ||
Switching Frequency 50 kHz | ||
Electrical Connection M12 Male Connector | ||
Supply Voltage 10.8 → 28.8 V dc | ||
LED Status Display Yes | ||
Terminal Type M12 Male 5-pin Connector | ||
Housing Material Vistal | ||
Series KTS | ||
IP Rating IP67 | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +60°C | ||
Mounting Type Panel Mount | ||
- COO (Country of Origin):
- DE
SICK RGB LED Contrast Sensor
The SICK RGB LED contrast sensor is KTS core series with modern twin-eye technology is for better quality, accurate contrast detection and sensing distance with VISTAL housing. This pull-push output type contrast sensor detects even the smallest contrasts such as shiny or transparent surface or greyscale variations at the highest speed. It uses two-point and dynamic teach-in process for sensor and different process setting makes it more flexible and detection steadier. The operating temperature ranges between -20°C and 60°C. It has a high switching frequency up to 50KHZ for a quick machine process.
Features and Benefits
• 7-segment display with flexible format change and process design
• Compact design and easy to install
• High flexibility of detection range is up to 13mm
• I/O link and automation functions
• Ideally emitted light is selected automatically at RGB variants
• Light and dark switching
• M12 male 5-pin connector type
• Manual sensor adjustment for stable material detection with user-friendly operation
• Require supply voltage between 10.8V and 28.8V with a Current rating is 100mA
• Compact design and easy to install
• High flexibility of detection range is up to 13mm
• I/O link and automation functions
• Ideally emitted light is selected automatically at RGB variants
• Light and dark switching
• M12 male 5-pin connector type
• Manual sensor adjustment for stable material detection with user-friendly operation
• Require supply voltage between 10.8V and 28.8V with a Current rating is 100mA
Applications
• Colour control in line protection
• Label alignment on bottles
• Monitoring of wafers
• Printing industry
• Roll end monitoring
• Label alignment on bottles
• Monitoring of wafers
• Printing industry
• Roll end monitoring
Certifications
• IP67 rated
