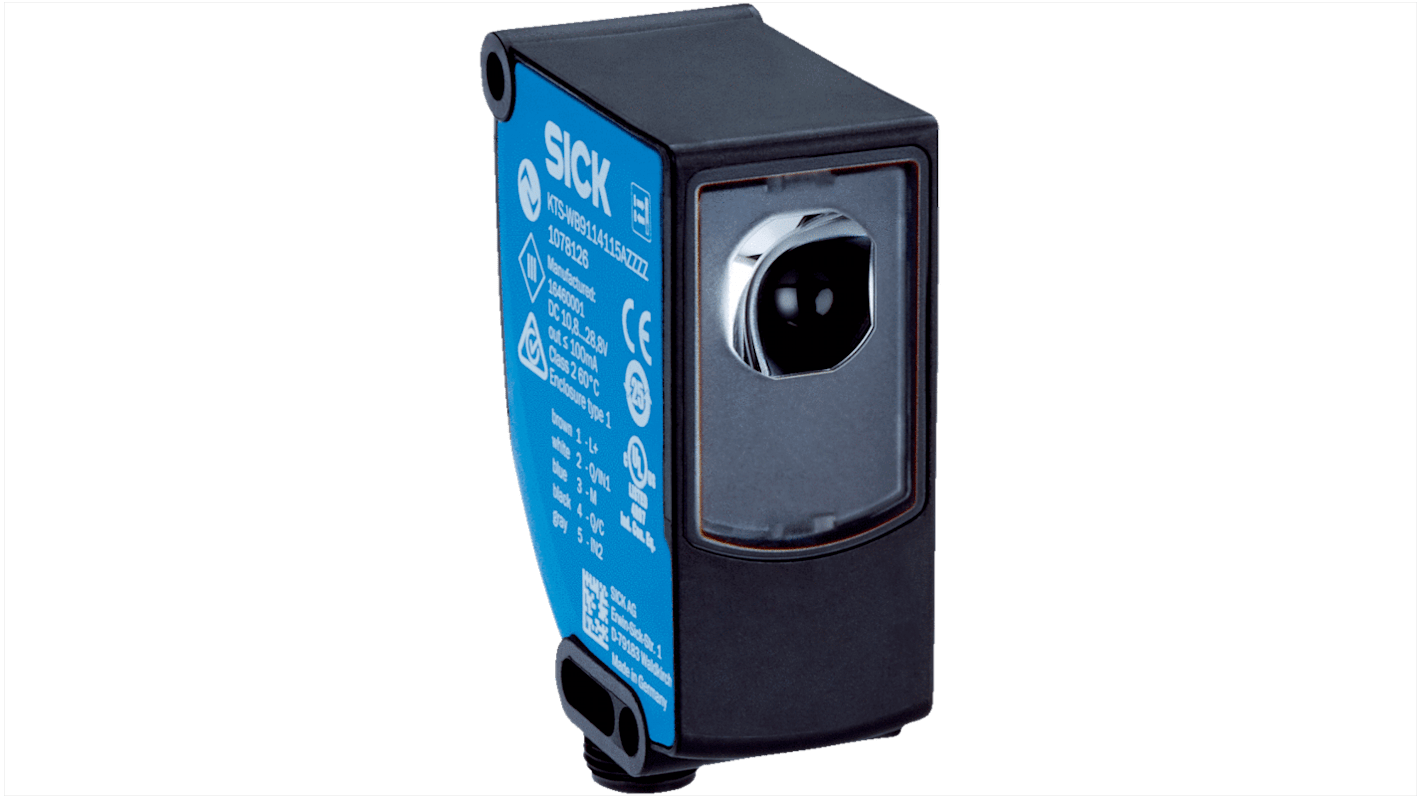

SICK Contrast Sensors 25 mm, RGB LED IO-Link, Digital, 100 mA, 10.8 → 28.8 V dc, IP67
- RS Stock No.:
- 285-2035
- Mfr. Part No.:
- KTS-WB9224115AZZZZ
- Brand:
- SICK
Subtotal (1 unit)*
£442.73
(exc. VAT)
£531.28
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £442.73 |
*price indicative
- RS Stock No.:
- 285-2035
- Mfr. Part No.:
- KTS-WB9224115AZZZZ
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Detection Range | 25 mm | |
| Light Source | RGB LED | |
| Output Type | Digital | |
| Maximum Current | 100 mA | |
| Switching Frequency | 50 kHz | |
| Electrical Connection | M12 Male Connector | |
| Supply Voltage | 10.8 → 28.8 V dc | |
| LED Status Display | Yes | |
| Terminal Type | M12 | |
| Series | KTS | |
| IP Rating | IP67 | |
| Interface | IO-Link | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +60°C | |
Select all | ||
|---|---|---|
Brand SICK | ||
Detection Range 25 mm | ||
Light Source RGB LED | ||
Output Type Digital | ||
Maximum Current 100 mA | ||
Switching Frequency 50 kHz | ||
Electrical Connection M12 Male Connector | ||
Supply Voltage 10.8 → 28.8 V dc | ||
LED Status Display Yes | ||
Terminal Type M12 | ||
Series KTS | ||
IP Rating IP67 | ||
Interface IO-Link | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +60°C | ||
- COO (Country of Origin):
- DE
Overview
Contrast sensors are primarily used in packaging/printing machines for the detection of printed or control marks. SICK's line of KT contrast sensors detects even the smallest contrasts at the highest speeds, such as print marks on foils or packaging. They detect minute grayscale variations between the mark and the background on matte, shiny or transparent surfaces. A variety of device types with different contrast resolution methods and teach-in versions are available to meet wide-ranging requirements.
They detect minute grayscale variations between the mark and the background on matte, shiny or transparent surfaces. A variety of device types with different contrast resolution methods and teach-in versions are available to meet wide ranging requirements.
At a glance
-
Your Benefit
Applications
Factory automation
Print: Contrast mark detection
Print: Detecting print marks
Food and beverage: Precise detection of print marks
Battery: Spliceband detection
Food and beverage: Flexible print mark detection for identification of the cutting position
Co
Print: Contrast mark detection
Print: Detecting print marks
Food and beverage: Precise detection of print marks
Battery: Spliceband detection
Food and beverage: Flexible print mark detection for identification of the cutting position
Co
