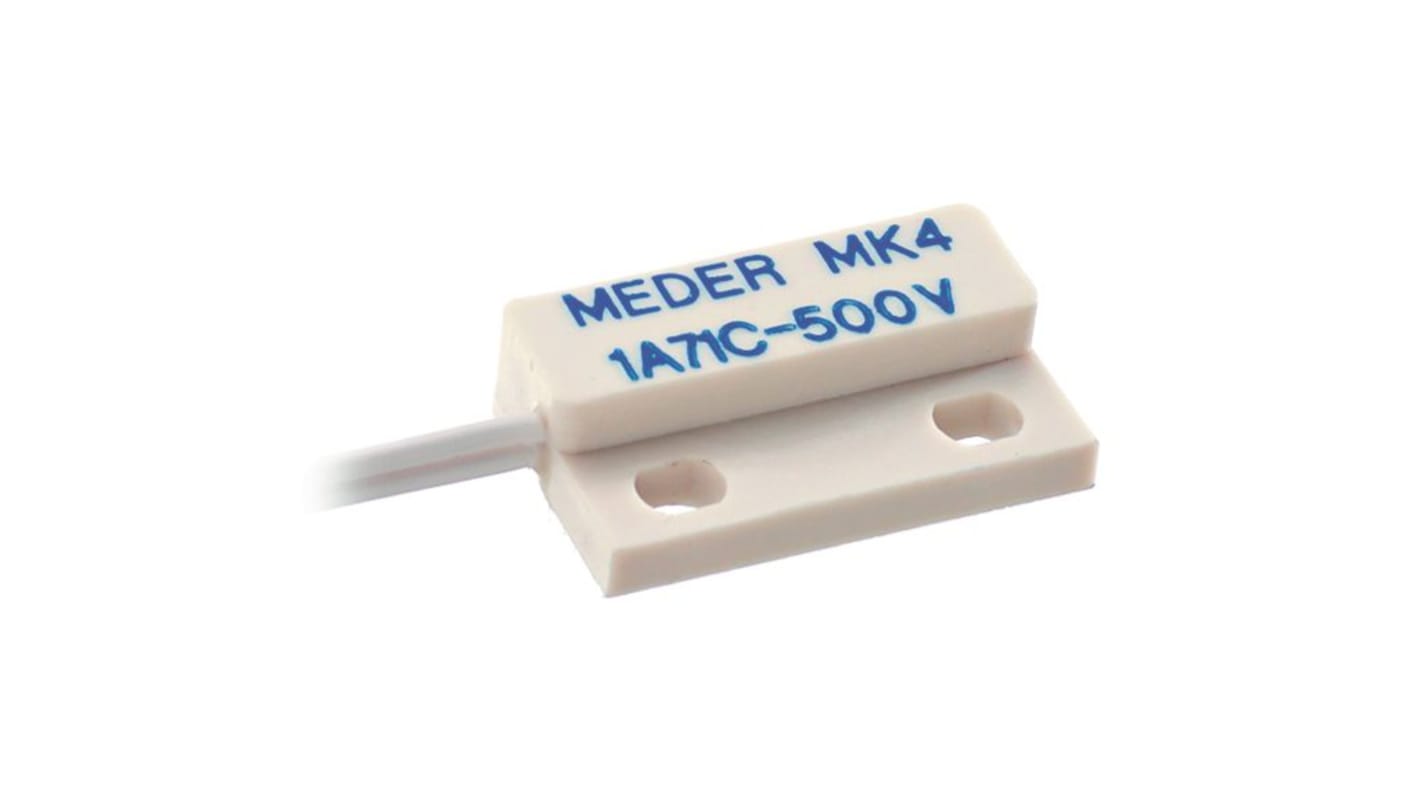

Standex-Meder 1 NO Screw Magnetic Proximity Sensor 500 mA 200 V
- RS Stock No.:
- 283-6297
- Distrelec Article No.:
- 137-56-649
- Mfr. Part No.:
- MK04-1A66C-500W
- Brand:
- Standex-Meder
Subtotal (1 unit)*
£7.95
(exc. VAT)
£9.54
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- 320 left, ready to ship
- Plus 1 left, ready to ship from another location
Units | Per unit |
|---|---|
| 1 + | £7.95 |
*price indicative
- RS Stock No.:
- 283-6297
- Distrelec Article No.:
- 137-56-649
- Mfr. Part No.:
- MK04-1A66C-500W
- Brand:
- Standex-Meder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Standex-Meder | |
| Contact Configuration | 1 NO | |
| Product Type | Magnetic Proximity Sensor | |
| Maximum Switching Current | 500mA | |
| Maximum Switching Power | 10W | |
| Maximum Switching Voltage | 200V | |
| Contact Resistance | 150mΩ | |
| Maximum Release Time | 3ms | |
| Terminal Type | Cable | |
| Mount Type | Screw | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Length | 23mm | |
| Depth | 5.9mm | |
| Series | MK04 | |
| Select all | ||
|---|---|---|
Brand Standex-Meder | ||
Contact Configuration 1 NO | ||
Product Type Magnetic Proximity Sensor | ||
Maximum Switching Current 500mA | ||
Maximum Switching Power 10W | ||
Maximum Switching Voltage 200V | ||
Contact Resistance 150mΩ | ||
Maximum Release Time 3ms | ||
Terminal Type Cable | ||
Mount Type Screw | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
Length 23mm | ||
Depth 5.9mm | ||
Series MK04 | ||
- COO (Country of Origin):
- DE
The sensor is a high-quality sensor with exceptional sensitivity and precise magnetic positioning. It is designed for reliable and accurate performance in various applications.
Provides maximum pull-in distance of 13.0mm and minimum drop-out distance of 9.5mm for efficient magnetic positioning
Sensitivity of over 2.30 mT ensures precise and consistent sensor operation
Ideal for applications requiring fine magnetic position and movement control
Designed for durability and long-term use in industrial environments
Compatible with a range of screw magnets for versatile installation options
