Sensata / Cynergy3 PCB Reed Relay, 24 V dc Coil, SPST, 350 V dc Max, 1 A Max, 1550 Ω
- RS Stock No.:
- 817-2295
- Mfr. Part No.:
- S8-2405
- Brand:
- Sensata / Cynergy3
Bulk discount available
Subtotal (1 unit)*
£13.54
(exc. VAT)
£16.25
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 105 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £13.54 |
| 5 - 9 | £13.01 |
| 10 - 24 | £12.56 |
| 25 + | £12.10 |
*price indicative
- RS Stock No.:
- 817-2295
- Mfr. Part No.:
- S8-2405
- Brand:
- Sensata / Cynergy3
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sensata / Cynergy3 | |
| Product Type | Reed Relay | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Coil Power | 100VA | |
| Coil Resistance | 1550Ω | |
| Terminal Type | PCB Terminal | |
| Switching Power | 100VA | |
| Operating Time | 1ms | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Series | S8 | |
| Standards/Approvals | UR | |
| Length | 30mm | |
| Height | 11.5mm | |
| Isolation Coil To Contact | 7kV | |
| Latching | No | |
| Contact Resistance | 80mΩ | |
| Select all | ||
|---|---|---|
Brand Sensata / Cynergy3 | ||
Product Type Reed Relay | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Coil Power 100VA | ||
Coil Resistance 1550Ω | ||
Terminal Type PCB Terminal | ||
Switching Power 100VA | ||
Operating Time 1ms | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Series S8 | ||
Standards/Approvals UR | ||
Length 30mm | ||
Height 11.5mm | ||
Isolation Coil To Contact 7kV | ||
Latching No | ||
Contact Resistance 80mΩ | ||

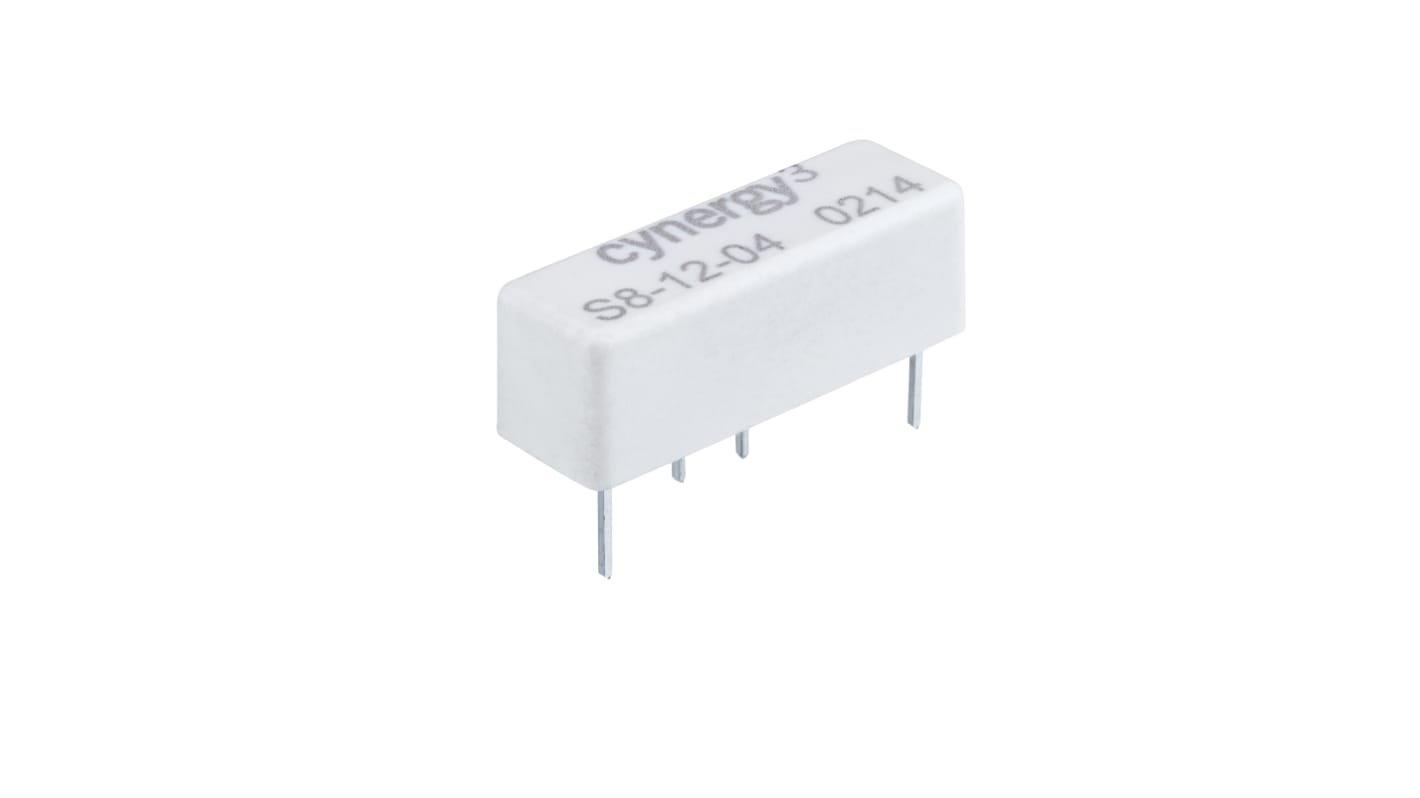

Sensata Cynergy3 Miniature Reed Relay, 24V DC Coil Voltage, 1ms Operating Time - S8 Relay Series - S8-2405
Increase the speed of your circuit switching with this miniature reed relay from Sensata Cynergy3. It has a fast operating time of 1ms, giving you quick reaction times. Thanks to its PCB (printed circuit board) mounting style, you can easily add this switch to new or existing electrical circuitry. The unit's contacts are made from rhodium for low electrical resistance, allowing for the rapid movement of charge. For simple on-off device powering, the product features a basic SPST (single pole single throw) configuration. Reed relays like this one are often used for electronic instruments and testing applications.
Features & Benefits
• Wide operating temperature range of -40°C to +85°C for use in demanding environments
• Long lifespan of one billion dry operations to ensure reliability
• Maximum switching voltage of 300V AC (alternating current) or 350V DC (direct current) for use in high-voltage applications
How large is this reed relay?
This miniature reed relay has highly compact dimensions of 30 (length) x 10 (width) x 11.5mm (height). This makes it a good choice for use in electrical circuits where space is limited.
