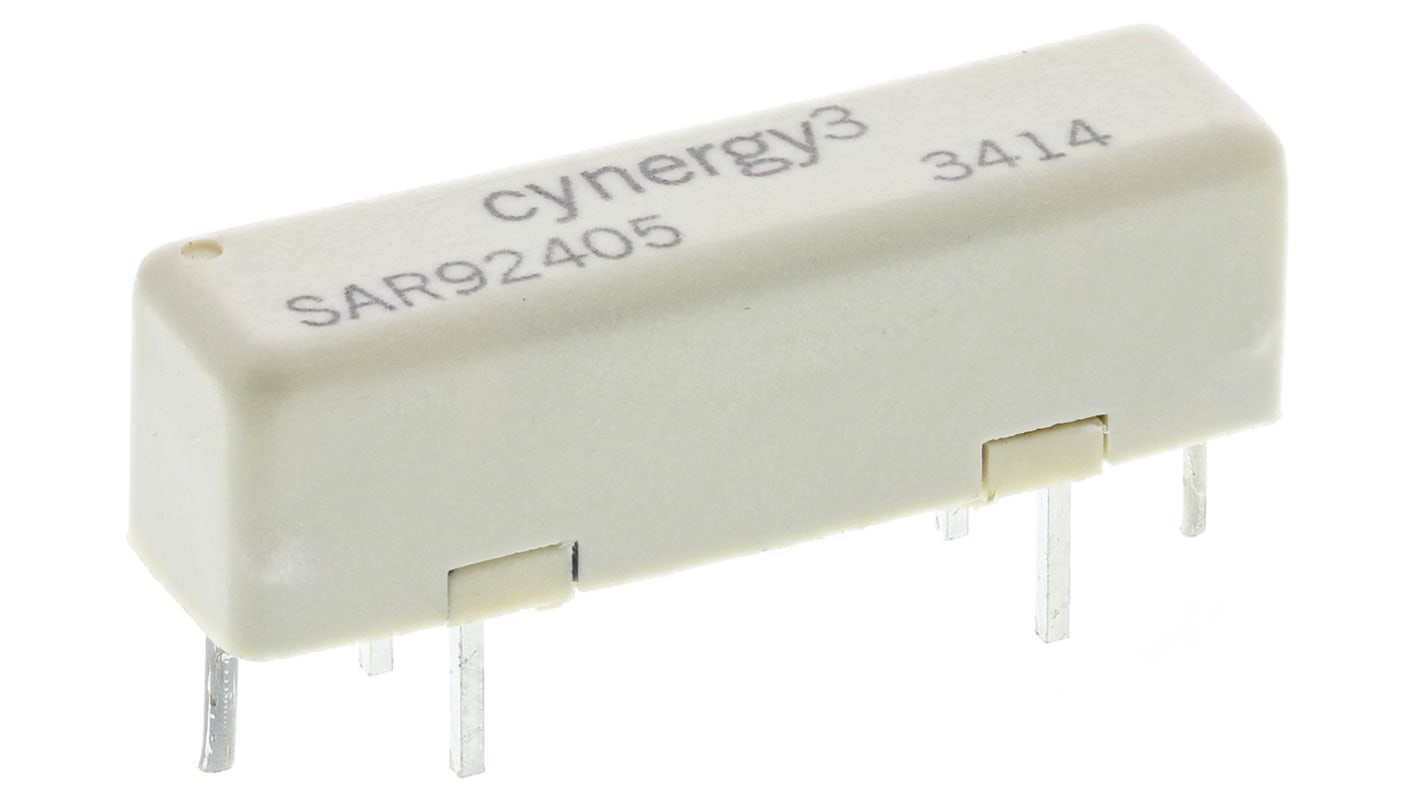

Sensata / Cynergy3 PCB Reed Relay, 24 V dc Coil, SPST, 20 V dc Max, 0.5 A Max, 1000 Ω
- RS Stock No.:
- 712-1195
- Mfr. Part No.:
- SAR92405
- Brand:
- Sensata / Cynergy3
Bulk discount available
Subtotal (1 unit)*
£30.93
(exc. VAT)
£37.12
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 467 unit(s) shipping from 04 May 2026
- Plus 38 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £30.93 |
| 10 - 49 | £29.68 |
| 50 - 99 | £27.90 |
| 100 + | £27.37 |
*price indicative
- RS Stock No.:
- 712-1195
- Mfr. Part No.:
- SAR92405
- Brand:
- Sensata / Cynergy3
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sensata / Cynergy3 | |
| Contact Configuration | SPST | |
| Product Type | Reed Relay | |
| Mount Type | PCB | |
| Coil Power | 10W | |
| Terminal Type | Through Hole | |
| Coil Resistance | 1000Ω | |
| Minimum Operating Temperature | -20°C | |
| Switching Power | 10W | |
| Operating Time | 1ms | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | UR | |
| Series | SA | |
| Length | 27.6mm | |
| Height | 8.5mm | |
| Isolation Coil To Contact | 5kV ac/dc | |
| Latching | No | |
| Contact Resistance | 30mΩ | |
| Select all | ||
|---|---|---|
Brand Sensata / Cynergy3 | ||
Contact Configuration SPST | ||
Product Type Reed Relay | ||
Mount Type PCB | ||
Coil Power 10W | ||
Terminal Type Through Hole | ||
Coil Resistance 1000Ω | ||
Minimum Operating Temperature -20°C | ||
Switching Power 10W | ||
Operating Time 1ms | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals UR | ||
Series SA | ||
Length 27.6mm | ||
Height 8.5mm | ||
Isolation Coil To Contact 5kV ac/dc | ||
Latching No | ||
Contact Resistance 30mΩ | ||
Sensata Cynergy3 Reed Relay, PCB Mounting, 24V DC Coil Voltage - S Series - SAR92405
Add high-voltage switching capabilities to your PCB with this reed relay from Sensata Cynergy3. Thanks to its compact size of 27.6 (length) x 7.3 (width) x 8.5mm (height), it helps to maximise packing efficiency on your PCB. Its switching voltage of 20V AC/DC makes it a good choice for use in low-power systems. The rhodium contacts have a maximum resistance of 80mΩ to ensure reliable switching. It's commonly found in applications such as testing equipment and medical devices.
Features & Benefits
• Contact isolation voltage of 5kV for protection against electrical damage in the event of a surge
• Fast operating time of 1ms for rapid switching and increased efficiency
• Long lifespan of one billion dry switching operations or one million operations at 10W switching for long-term performance
• Light weight of 3.1g to minimise strain on your PCB
Can I use this reed relay in extreme temperatures?
Yes, this reed relay has a broad operating temperature range of -20°C to +70°C, making it a good choice for use in demanding conditions.
