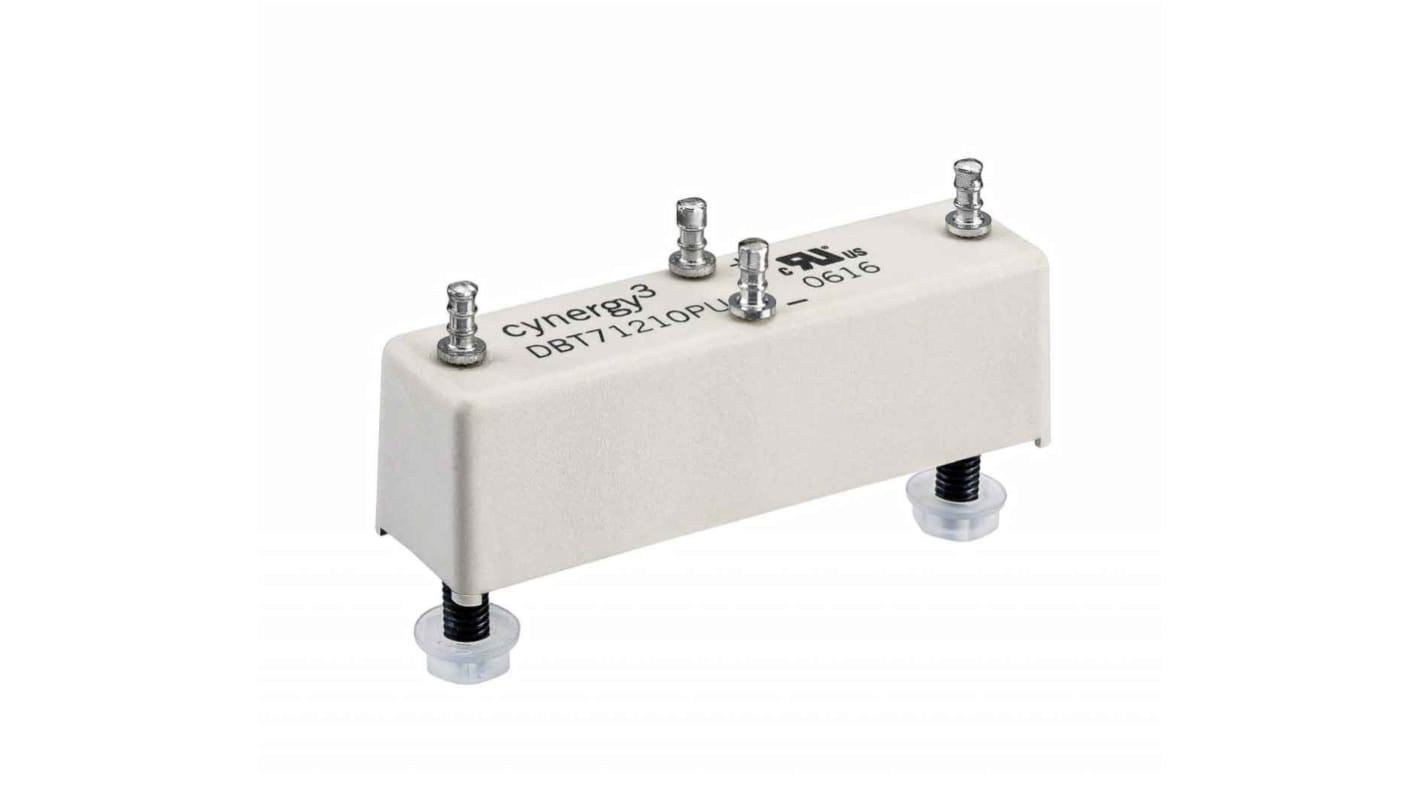

Sensata Cynergy3 Panel Mount Reed Relay, 24V dc Coil, SPST, 7000V Max, 2 A Max, 780Ω

RS Stock No.:: 189-2240
Mfr. Part No.:: DAT72475PU
Brand:: Sensata / Cynergy3

Sensata Cynergy3 Panel Mount Reed Relay, 24V dc Coil, SPST, 7000V Max, 2 A Max, 780Ω

View all Reed Relays

Subtotal (1 box of 20 units)*

£942.29

(exc. VAT)

£1,130.75

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 20 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Box(es)	Per Box	Per unit*
1 +	£942.29	£47.115

*price indicative

RS Stock No.:: 189-2240
Mfr. Part No.:: DAT72475PU
Brand:: Sensata / Cynergy3

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Sensata / Cynergy3
	Contact Configuration	SPST
	Coil Voltage	24V dc
	Mounting Type	Panel Mount
	Maximum Switching Current AC	2 A
	Maximum Switching Current DC	2 A
	Maximum Switching Voltage AC	7000V
	Maximum Switching Voltage DC	7000V
	Coil Resistance	780Ω
	Length	60mm
	Height	18.5mm
	Depth	15.8mm
	Dimensions	60 x 15.8 x 18.5mm
	Isolation Coil To Contact	17kV
	Operating Time Including Bounce	3ms
	Terminal Type	Wire Wrap
	Maximum Operating Temperature	+70°C
	Contact Material	Tungsten
	Contact Resistance	250 mΩ
	Special Features	7.5kV or 5kV Isolation, Choice of 10kV, Excellent AC Characteristics, Low Contact Resistance, PCB or Panel mΩunt
	Minimum Operating Temperature	-20°C
	Maximum Switching Power DC	50 W
	Relay Switching Classification	General Purpose Relay
	Number of Poles	1
	Operating Temperature Range	-20 → +70°C
	Life	10^6 (50W Switching) cycles, 10^9 (Dry Switching) cycles
	Electrical Life	10^6 (50W Switching) cycles, 10^9 (Dry Switching) cycles

	Select all
	Brand Sensata / Cynergy3
	Contact Configuration SPST
	Coil Voltage 24V dc
	Mounting Type Panel Mount
	Maximum Switching Current AC 2 A
	Maximum Switching Current DC 2 A
	Maximum Switching Voltage AC 7000V
	Maximum Switching Voltage DC 7000V
	Coil Resistance 780Ω
	Length 60mm
	Height 18.5mm
	Depth 15.8mm
	Dimensions 60 x 15.8 x 18.5mm
	Isolation Coil To Contact 17kV
	Operating Time Including Bounce 3ms
	Terminal Type Wire Wrap
	Maximum Operating Temperature +70°C
	Contact Material Tungsten
	Contact Resistance 250 mΩ
	Special Features 7.5kV or 5kV Isolation, Choice of 10kV, Excellent AC Characteristics, Low Contact Resistance, PCB or Panel mΩunt
	Minimum Operating Temperature -20°C
	Maximum Switching Power DC 50 W
	Relay Switching Classification General Purpose Relay
	Number of Poles 1
	Operating Temperature Range -20 → +70°C
	Life 10^6 (50W Switching) cycles, 10^9 (Dry Switching) cycles
	Electrical Life 10^6 (50W Switching) cycles, 10^9 (Dry Switching) cycles

Datasheet DAT72475PU

Sensata Cynergy3 High-Voltage Reed Relay, 24V DC, 2A - DA(UL) Series - DAT72475PU

This reed relay from Sensata Cynergy3 is designed to control the operation of equipment that requires a high-voltage power supply. Its tungsten contacts can withstand high levels of heat and a high maximum switching voltage of 7,000V AC/DC. This means it's suitable for use with machinery where reliability is essential, such as cardiac defibrillators and testing equipment. Its long electrical lifespan of 1,000,000,000 dry switching cycles makes it a long-lasting choice.

Features & Benefits

• Wide operating temperature range of -20°C to +70°C for use in hot and cold environments
• Compact dimensions of 60 (length) x 15.8 (depth) x 18.5mm (height) for installation in tight spaces
• Wire wrap terminals for a durable electrical connection

What's the switching speed of this reed relay?

This reed relay has a fast switching speed of 3ms, giving you an almost instant reaction time.

How does a reed relay work?

A reed relay uses a simple magnetic field to move its contacts together or apart. Its minimalist technology reduces the risk of wear for more reliable performance.
