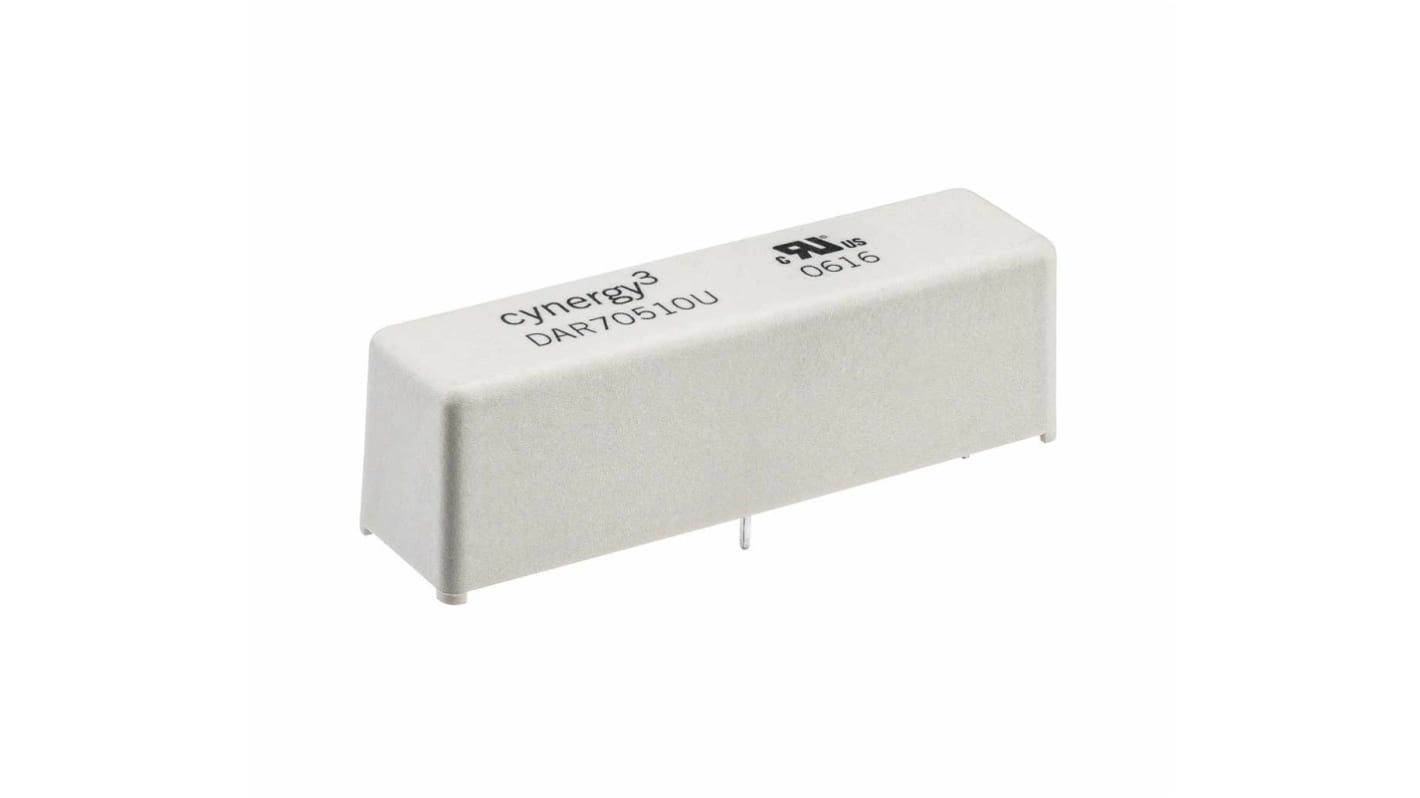

Sensata Cynergy3 PCB Mount Reed Relay, 24V dc Coil, SPST, 7000V Max, 2 A Max, 780Ω

RS Stock No.:: 189-2161
Mfr. Part No.:: DAT72405U
Brand:: Sensata / Cynergy3

Sensata Cynergy3 PCB Mount Reed Relay, 24V dc Coil, SPST, 7000V Max, 2 A Max, 780Ω

View all Reed Relays

Subtotal (1 box of 20 units)*

£632.28

(exc. VAT)

£758.74

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 13 February 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Box(es)	Per Box	Per unit*
1 +	£632.28	£31.614

*price indicative

RS Stock No.:: 189-2161
Mfr. Part No.:: DAT72405U
Brand:: Sensata / Cynergy3

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Sensata / Cynergy3
	Contact Configuration	SPST
	Coil Voltage	24V dc
	Mounting Type	PCB Mount
	Maximum Switching Current AC	2 A
	Maximum Switching Current DC	2 A
	Maximum Switching Voltage AC	7000V
	Maximum Switching Voltage DC	7000V
	Coil Resistance	780Ω
	Length	60mm
	Height	18.5mm
	Depth	15.8mm
	Dimensions	60 x 15.8 x 18.5mm
	Isolation Coil To Contact	17kV
	Operating Time Including Bounce	3ms
	Maximum Switching Power DC	50 W
	Terminal Type	PCB Pin
	Contact Material	Tungsten
	Contact Resistance	250 mΩ
	Special Features	7.5kV or 5kV Isolation, Choice of 10kV, Excellent AC Characteristics, Low Contact Resistance, PCB or Panel mΩunt
	Electrical Life	10^6 (50W Switching) cycles, 10^9 (Dry Switching) cycles
	Relay Switching Classification	General Purpose Relay
	Number of Poles	1
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	+70°C
	Life	10^6 (50W Switching) cycles, 10^9 (Dry Switching) cycles
	Operating Temperature Range	-20 → +70°C

	Select all
	Brand Sensata / Cynergy3
	Contact Configuration SPST
	Coil Voltage 24V dc
	Mounting Type PCB Mount
	Maximum Switching Current AC 2 A
	Maximum Switching Current DC 2 A
	Maximum Switching Voltage AC 7000V
	Maximum Switching Voltage DC 7000V
	Coil Resistance 780Ω
	Length 60mm
	Height 18.5mm
	Depth 15.8mm
	Dimensions 60 x 15.8 x 18.5mm
	Isolation Coil To Contact 17kV
	Operating Time Including Bounce 3ms
	Maximum Switching Power DC 50 W
	Terminal Type PCB Pin
	Contact Material Tungsten
	Contact Resistance 250 mΩ
	Special Features 7.5kV or 5kV Isolation, Choice of 10kV, Excellent AC Characteristics, Low Contact Resistance, PCB or Panel mΩunt
	Electrical Life 10^6 (50W Switching) cycles, 10^9 (Dry Switching) cycles
	Relay Switching Classification General Purpose Relay
	Number of Poles 1
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature +70°C
	Life 10^6 (50W Switching) cycles, 10^9 (Dry Switching) cycles
	Operating Temperature Range -20 → +70°C

Datasheet DAT72405U

Sensata Cynergy3 PCB Mount Reed Relay, 50W Switching Power, 5kV Contact Isolation - DA(UL) Series - DAT72405U

This reed relay from Sensata Cynergy3 is designed to switch power to electrical circuits in a device. Its two contacts are made from a highly conductive tungsten material, making it suitable for use in high-voltage systems. The PCB pin terminals mean it's quick and easy to install on a circuit board. Thanks to its broad operating temperature range between -20°C and +70°C, it's suitable for use in harsh industrial environments. This relay is ideal for use in sensitive applications that need reliable switching, like medical devices and test equipment.

Features & Benefits

• Long service life of one billion dry operations for long-term performance
• Compact dimensions of 60 (length) x 15.8 (width) x 18.5mm (height) to maximise space on a PCB

How does this reed relay work?

When power is applied to the reed relay, its electromagnetic coil sends magnetic energy to the contacts, closing them and activating the electrical circuit.

How quickly does this relay respond?

This reed relay has a fast operating time of just 3ms, helping to ensure rapid switching.
