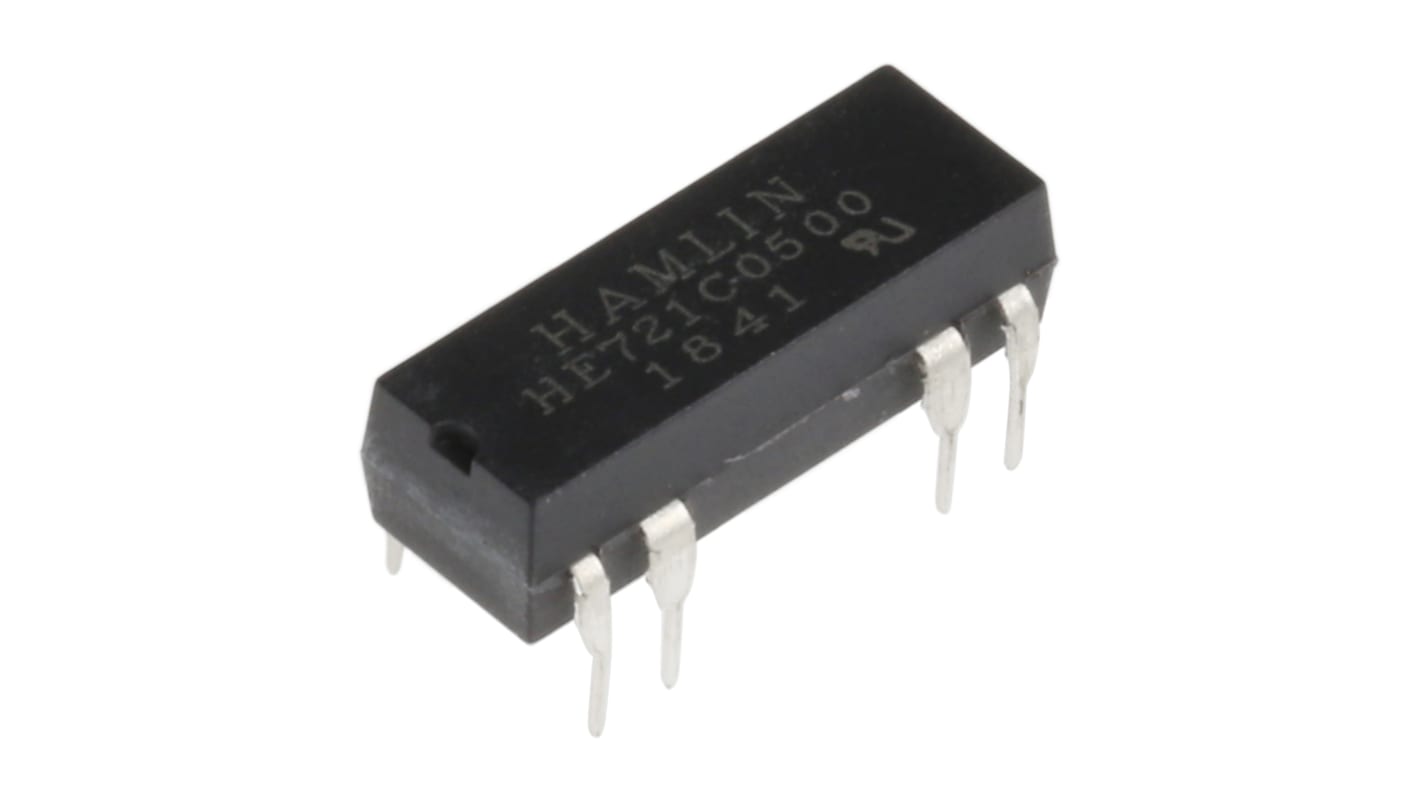

Wickmann PCB Mount Reed Relay, 5V dc Coil, SPDT, 175V Max, 250 mA Max, 200Ω
- RS Stock No.:
- 181-3284
- Mfr. Part No.:
- HE721C0500
- Brand:
- Wickmann
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 181-3284
- Mfr. Part No.:
- HE721C0500
- Brand:
- Wickmann
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wickmann | |
| Contact Configuration | SPDT | |
| Coil Voltage | 5V dc | |
| Mounting Type | PCB Mount | |
| Maximum Switching Current DC | 250 mA | |
| Maximum Switching Voltage DC | 175V | |
| Coil Resistance | 200Ω | |
| Length | 19.05mm | |
| Height | 5.5mm | |
| Depth | 7.22mm | |
| Dimensions | 19.05 x 7.22 x 5.5mm | |
| Isolation Coil To Contact | 500V ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
| Maximum Switching Power DC | 5 W | |
| Terminal Type | PCB Pin | |
| Operating Temperature Range | -40 → +85°C | |
| Contact Resistance | 200 mΩ | |
| Special Features | Diode Suppression Option, External Magnetic Shield Option, Optional Coil Suppression Diode → Protect Coil Drive Circuits | |
| Standards Met | RoHS Compliant | |
| Number of Poles | 1 | |
| Operating Time Including Bounce | 3ms | |
Select all | ||
|---|---|---|
Brand Wickmann | ||
Contact Configuration SPDT | ||
Coil Voltage 5V dc | ||
Mounting Type PCB Mount | ||
Maximum Switching Current DC 250 mA | ||
Maximum Switching Voltage DC 175V | ||
Coil Resistance 200Ω | ||
Length 19.05mm | ||
Height 5.5mm | ||
Depth 7.22mm | ||
Dimensions 19.05 x 7.22 x 5.5mm | ||
Isolation Coil To Contact 500V ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Maximum Switching Power DC 5 W | ||
Terminal Type PCB Pin | ||
Operating Temperature Range -40 → +85°C | ||
Contact Resistance 200 mΩ | ||
Special Features Diode Suppression Option, External Magnetic Shield Option, Optional Coil Suppression Diode → Protect Coil Drive Circuits | ||
Standards Met RoHS Compliant | ||
Number of Poles 1 | ||
Operating Time Including Bounce 3ms | ||
- COO (Country of Origin):
- CN
Miniature reed relay in a dual-in-line (DIL) package with a choice of normally open, normally open high-voltage, normally closed or changeover contacts capable of switching up to 300Vdc at 10W. Available with 5V, 12V and 24V coils and diode suppression. Ideally suited for security, telecom, instrumentation, process control and industrial applications.
Features:
Miniature dual-in-line (DIL) package
Available with normally open contacts
Benefits:
One relay, various contact choices help to reduce space and cost without compromising flexibility
Lower coil power consumption than electromechanical devices
Hermetically sealed switching contacts are immune to their environment
Transfer molded package gives maximum component protection
Applications:
Security systems
Telecom equipment
Process control systems
Industrial equipment
Instrumentation
