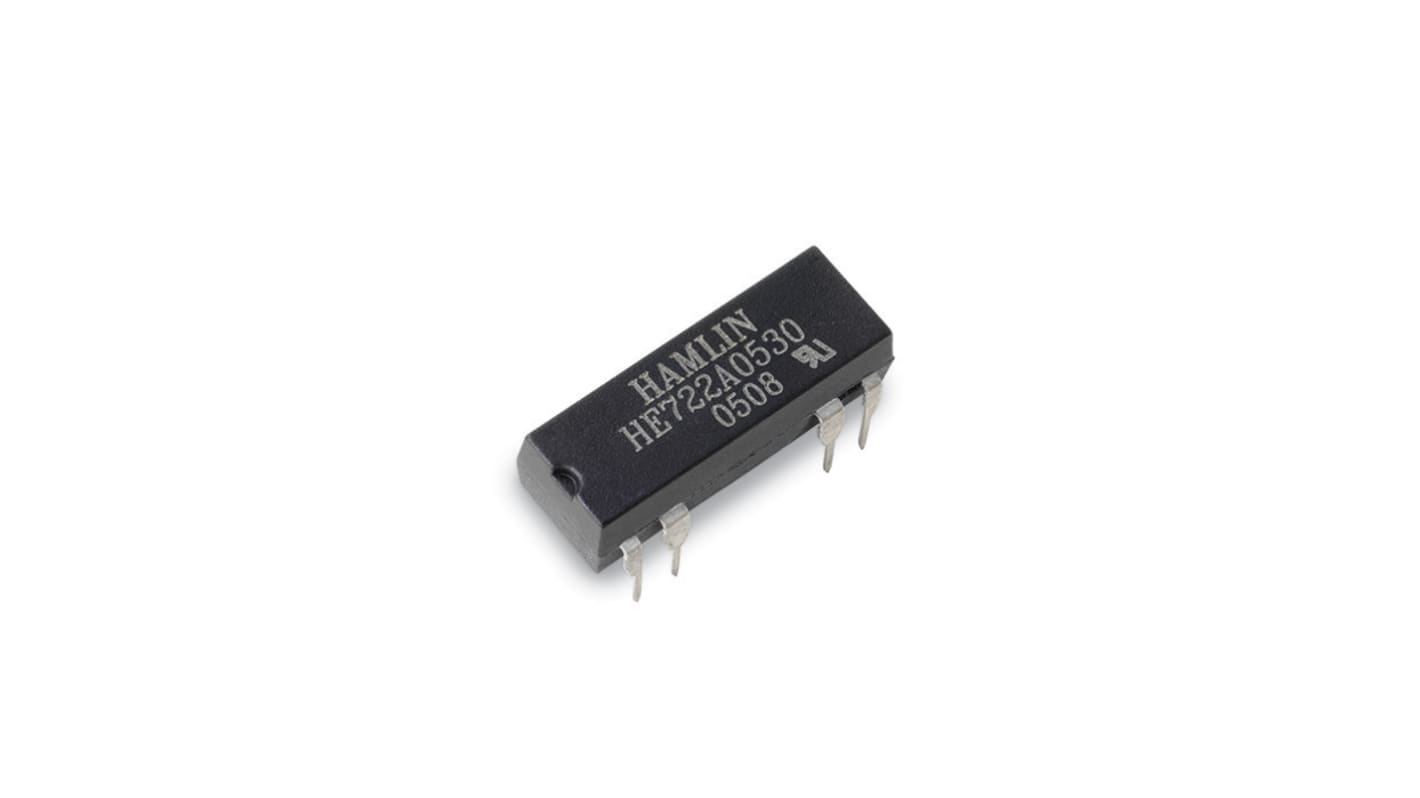

Wickmann PCB Mount Reed Relay, 12V dc Coil, SPST, 200V Max, 500 mA Max, 1000Ω
- RS Stock No.:
- 174-0478
- Mfr. Part No.:
- HE721A1200
- Brand:
- Wickmann
Discontinued
- RS Stock No.:
- 174-0478
- Mfr. Part No.:
- HE721A1200
- Brand:
- Wickmann
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wickmann | |
| Contact Configuration | SPST | |
| Coil Voltage | 12V dc | |
| Mounting Type | PCB Mount | |
| Maximum Switching Current DC | 500 mA | |
| Maximum Switching Voltage DC | 200V | |
| Coil Resistance | 1000Ω | |
| Length | 19.05mm | |
| Height | 5.5mm | |
| Depth | 7.22mm | |
| Dimensions | 19.05 x 7.22 x 5.5mm | |
| Isolation Coil To Contact | 500V ac | |
| Maximum Operating Temperature | +85°C | |
| Special Features | Diode Suppression Option, External Magnetic Shield Option, Optional Coil Suppression Diode → Protect Coil Drive Circuits | |
| Terminal Type | PCB Pin | |
| Minimum Operating Temperature | -40°C | |
| Contact Resistance | 150 mΩ | |
| Operating Time Including Bounce | 1ms | |
| Operating Temperature Range | -40 → +85°C | |
| Number of Poles | 1 | |
| Maximum Switching Power DC | 10 W | |
| Select all | ||
|---|---|---|
Brand Wickmann | ||
Contact Configuration SPST | ||
Coil Voltage 12V dc | ||
Mounting Type PCB Mount | ||
Maximum Switching Current DC 500 mA | ||
Maximum Switching Voltage DC 200V | ||
Coil Resistance 1000Ω | ||
Length 19.05mm | ||
Height 5.5mm | ||
Depth 7.22mm | ||
Dimensions 19.05 x 7.22 x 5.5mm | ||
Isolation Coil To Contact 500V ac | ||
Maximum Operating Temperature +85°C | ||
Special Features Diode Suppression Option, External Magnetic Shield Option, Optional Coil Suppression Diode → Protect Coil Drive Circuits | ||
Terminal Type PCB Pin | ||
Minimum Operating Temperature -40°C | ||
Contact Resistance 150 mΩ | ||
Operating Time Including Bounce 1ms | ||
Operating Temperature Range -40 → +85°C | ||
Number of Poles 1 | ||
Maximum Switching Power DC 10 W | ||
- COO (Country of Origin):
- CN
Miniature reed relay in a dual-in-line (DIL) package with a choice of normally open, normally open high-voltage, normally closed or changeover contacts capable of switching up to 300Vdc at 10W. Available with 5V, 12V and 24V coils and diode suppression. Ideally suited for security, telecom, instrumentation, process control and industrial applications.
Features:
Miniature dual-in-line (DIL) package
Available with normally open contacts
Benefits:
One relay, various contact choices help to reduce space and cost without compromising flexibility
Lower coil power consumption than electromechanical devices
Hermetically sealed switching contacts are immune to their environment
Transfer molded package gives maximum component protection
Applications:
Security systems
Telecom equipment
Process control systems
Industrial equipment
Instrumentation
Miniature dual-in-line (DIL) package
Available with normally open contacts
Benefits:
One relay, various contact choices help to reduce space and cost without compromising flexibility
Lower coil power consumption than electromechanical devices
Hermetically sealed switching contacts are immune to their environment
Transfer molded package gives maximum component protection
Applications:
Security systems
Telecom equipment
Process control systems
Industrial equipment
Instrumentation
