Timeguard Tripfast 13A, BS Fixing, Passive, Single Gang RCD Socket, Surface Mount , Switched, 240 V ac, White
- RS Stock No.:
- 185-003
- Mfr. Part No.:
- TFA02WL
- Brand:
- Theben / Timeguard
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Pack of 5
£46.50
(exc. VAT)
£55.80
(inc. VAT)
- RS Stock No.:
- 185-003
- Mfr. Part No.:
- TFA02WL
- Brand:
- Theben / Timeguard
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Theben / Timeguard | |
| Number of Gangs | 1 | |
| RCD Type | Passive | |
| Series Name | Tripfast | |
| Colour | White | |
| Mounting Style | Surface Mount | |
| Switched | Yes | |
| Trip Speed | 40ms | |
| Faceplate Depth | 20mm | |
| Voltage Rating | 240 V ac | |
| Current Rating | 13A | |
| Earth Terminal | Yes | |
| Colour Family | White | |
| Fixing Standard | BS | |
| Number of Poles | 2 | |
| Faceplate Mounting Type | Screwed | |
| Trip Current | 30mA | |
| Height | 85mm | |
| Series | Tripfast | |
| Switch Style | Rocker | |
| Minimum Box Depth | 25mm | |
| Width | 85mm | |
Select all | ||
|---|---|---|
Brand Theben / Timeguard | ||
Number of Gangs 1 | ||
RCD Type Passive | ||
Series Name Tripfast | ||
Colour White | ||
Mounting Style Surface Mount | ||
Switched Yes | ||
Trip Speed 40ms | ||
Faceplate Depth 20mm | ||
Voltage Rating 240 V ac | ||
Current Rating 13A | ||
Earth Terminal Yes | ||
Colour Family White | ||
Fixing Standard BS | ||
Number of Poles 2 | ||
Faceplate Mounting Type Screwed | ||
Trip Current 30mA | ||
Height 85mm | ||
Series Tripfast | ||
Switch Style Rocker | ||
Minimum Box Depth 25mm | ||
Width 85mm | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN

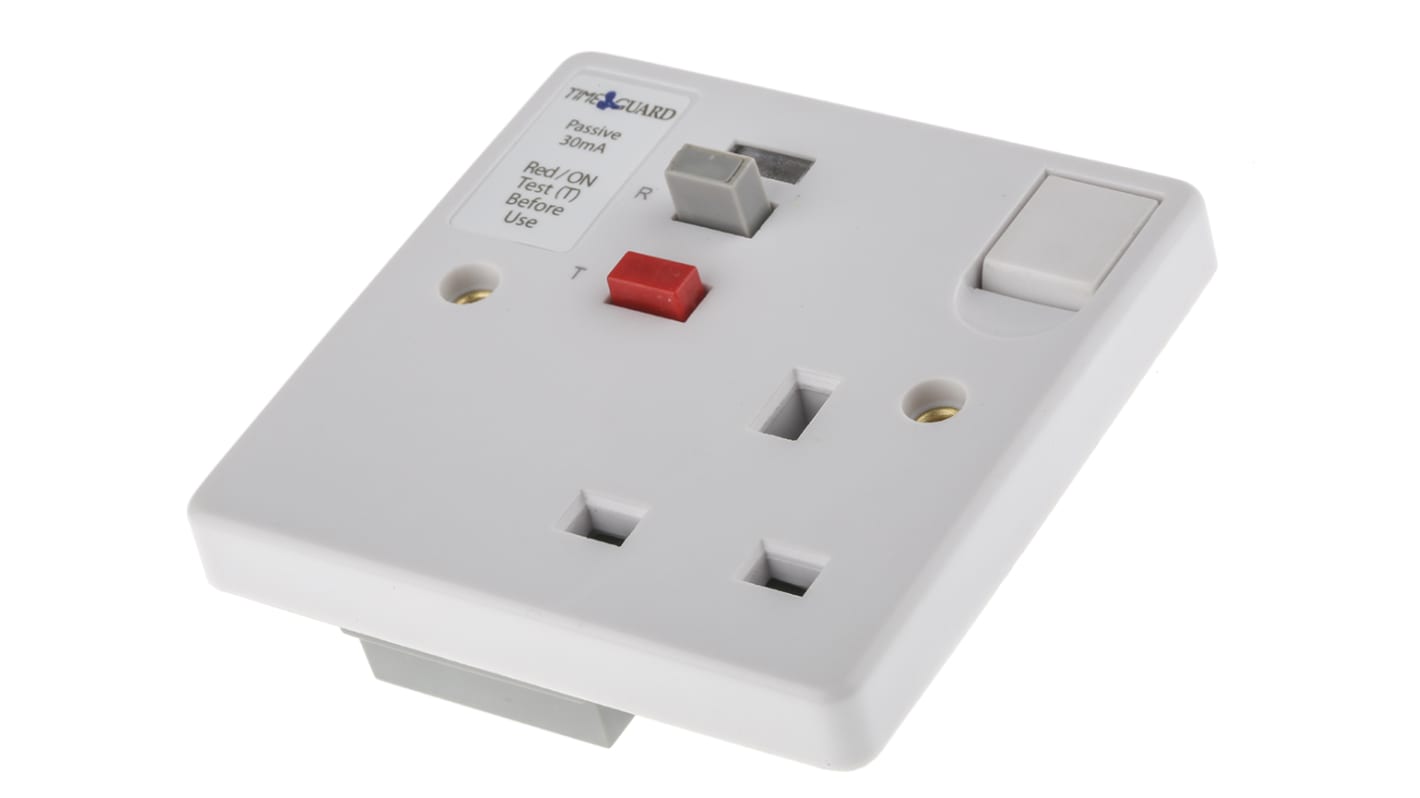

Single Latching White RCD Socket
Disconnects both live and neutral connections leaving earth intact
Fits in place of a single gang socket
Detects lost neutral and pulsating d.c. earth faults
Back box depth required 25mm minimum
Remains latched when the power is temporarily lost
Fits in place of a single gang socket
Detects lost neutral and pulsating d.c. earth faults
Back box depth required 25mm minimum
Remains latched when the power is temporarily lost
Timeguard RCD's
Current Rating 13A
Voltage Rating 220 - 240Vac
Trip Current 30mA
Trip Time 40ms
Conforms to BS1363 and BS7288
Voltage Rating 220 - 240Vac
Trip Current 30mA
Trip Time 40ms
Conforms to BS1363 and BS7288
Designed to provide protection against the risk of electrocution and fire hazards.
Passive circuitry - power is restored immediately after a power failure.
Active circuitry - power is only restored after device has been manually reset, thus protecting against equipment suddenly re-energising.
Passive circuitry - power is restored immediately after a power failure.
Active circuitry - power is only restored after device has been manually reset, thus protecting against equipment suddenly re-energising.
