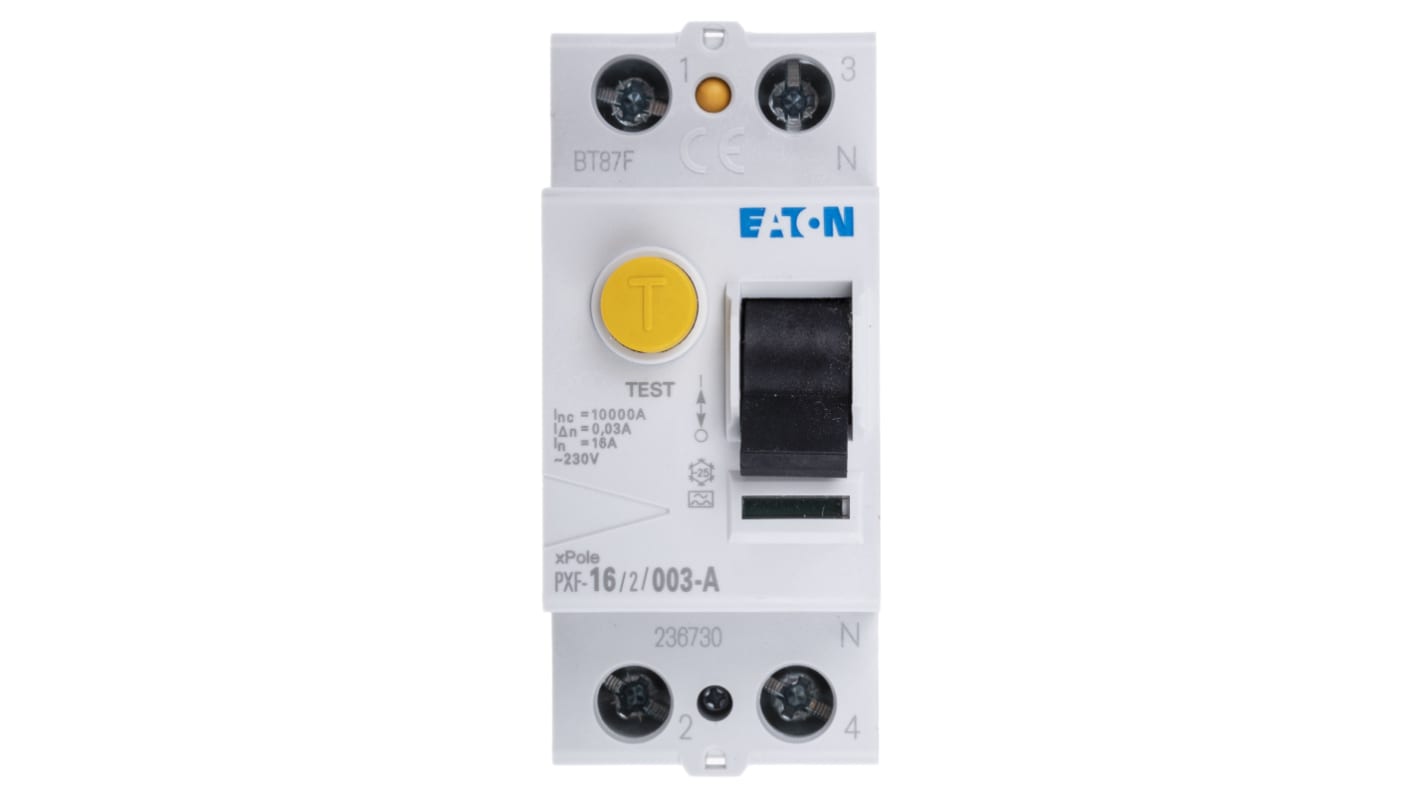

Eaton PXF-A RCCB, 16A, 1+N Pole, 30mA, Type A, 230V ac
- RS Stock No.:
- 490-040
- Mfr. Part No.:
- 236730 PXF-16/2/003-A
- Brand:
- Eaton
Subtotal (1 unit)*
£93.90
(exc. VAT)
£112.68
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
- Plus 12 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £93.90 |
*price indicative
- RS Stock No.:
- 490-040
- Mfr. Part No.:
- 236730 PXF-16/2/003-A
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Circuit Breaker Type | RCCB | |
| Current Rating | 16A | |
| Number of Poles | 1+N | |
| Range | PXF | |
| Trip Sensitivity | 30mA | |
| Tripping Characteristics | Type A | |
| Voltage Rating | 230V ac | |
| Series | PXF-A | |
| Terminal Contact Type | Quick Connect | |
| Overall Width | 45mm | |
| Overall Length | 80mm | |
| Breaking Capacity at Maximum Voltage Rating | 500 A | |
| Rated AC Voltage | 230V | |
| Overall Depth | 45mm | |
| Mounting Style | DIN Rail Mount | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Circuit Breaker Type RCCB | ||
Current Rating 16A | ||
Number of Poles 1+N | ||
Range PXF | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type A | ||
Voltage Rating 230V ac | ||
Series PXF-A | ||
Terminal Contact Type Quick Connect | ||
Overall Width 45mm | ||
Overall Length 80mm | ||
Breaking Capacity at Maximum Voltage Rating 500 A | ||
Rated AC Voltage 230V | ||
Overall Depth 45mm | ||
Mounting Style DIN Rail Mount | ||
RoHS Status: Exempt
- COO (Country of Origin):
- RS
Eaton Type A RCD Switch, 1P+N, 30mA Trip Sensitivity - PXF-A Series - 236730PXF-16/2/003-A
Shut down your circuit before residual current becomes hazardous with this RCD switch from Eaton. It has a 30mA trip sensitivity and it immediately breaks the circuit when this level is exceeded to avoid the risk of electrical hazards. The versatile device's type A tripping characteristic means it works with AC and pulsating DC power supplies. Featuring both a protective and a neutral pole, the unit monitors the live and neutral wires to ensure maximum protection.
Features & Benefits
• Current rating of 16A suits many residential and commercial applications
• Touch-proof unit has an IP20 rating, indicating protection against tools and wires over 12mm
• Tolerates impulse voltages up to 4kV to handle electrical surges
• Easily mounts onto a DIN rail using built-in latches for quick and secure installation
• Touch-proof unit has an IP20 rating, indicating protection against tools and wires over 12mm
• Tolerates impulse voltages up to 4kV to handle electrical surges
• Easily mounts onto a DIN rail using built-in latches for quick and secure installation
What's a residual current and why is it dangerous?
Residual current is the difference between the current entering your electrical system and the current leaving it. If there's a fault with your power supply or device and current is held in a circuit even after it's switched off, it can pose a risk of electric shock to operators.
Approvals
DIN VDE 0664 part 10
Standards
IEC / EN 61008
