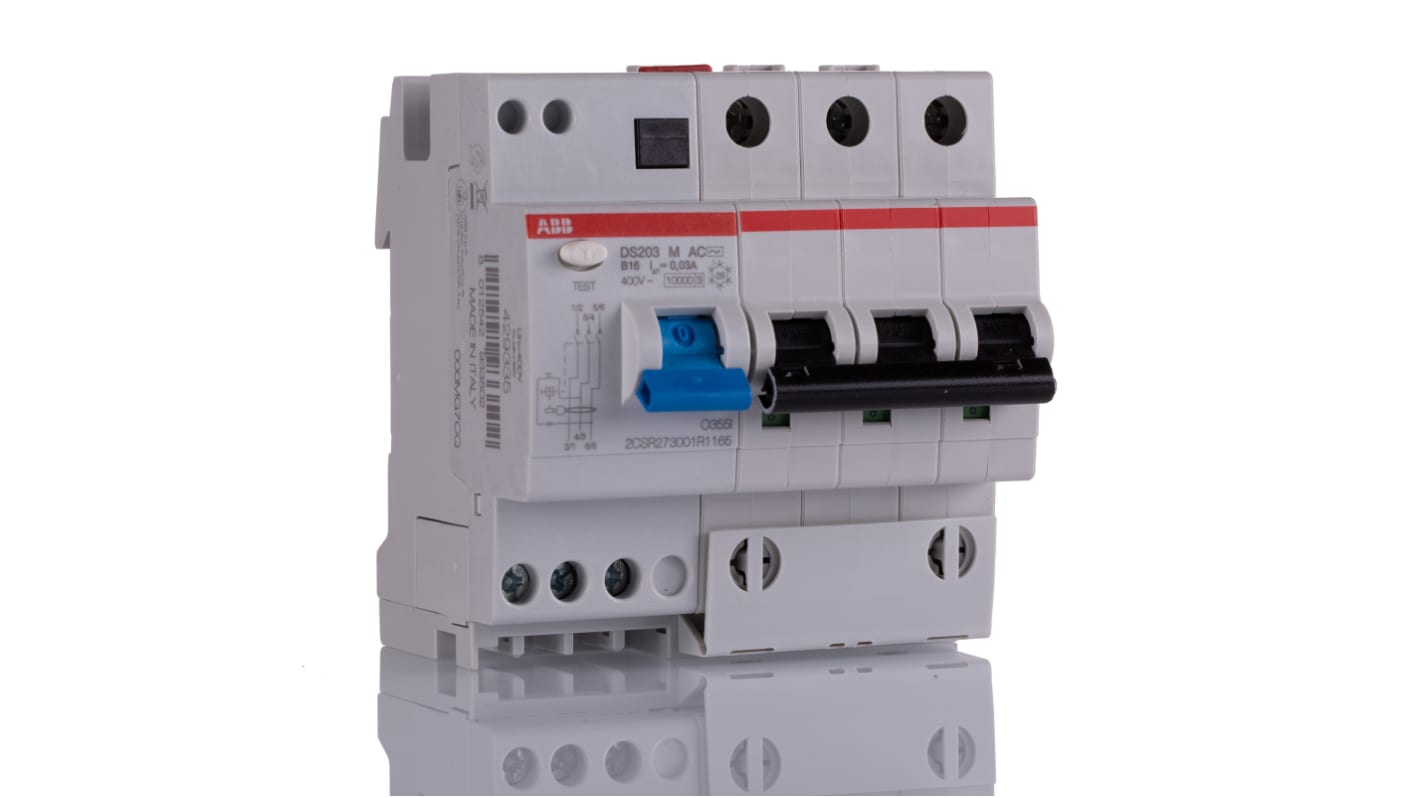

Looking for a compact safety device to use with your commercial equipment? This RCBO from ABB combines overload and residual current detection in one component, giving you convenient circuit protection. With its current leakage sensitivity of 30mA, it trips before any residual current build-up becomes hazardous, which ensures effective operator safety. The unit's instantaneous trip time means it immediately breaks attached circuits, so you can be sure of responsive protection. As a type B device, this breaker trips if the current reaches between 3 and 5 times its 16A rating, minimising the risk of hardware damage.

• 3 protective poles monitor up to 3 circuits at once for efficient system coverage
• Electrical lifespan of 10,000 switching cycles for long-lasting protection
• Short-circuit breaking capacity up to 10kA to withstand electrical surges
• Maximum power loss of 6.6W for energy-efficient protection

• Domestic appliances
• Industrial safety systems
• Plastics processing
• Telecommunications equipment

This RCBO has a wide operating temperature range between -25°C and +55°C, so it's suited to demanding industrial settings.

ABB RCBO's & RCCB's

RCBO's : DIN rail mounting with an operating temperature range of -25 to +55 °C. Optimum frequency range of 50 to 60Hz
