- RS Stock No.:
- 237-5085
- Mfr. Part No.:
- 2CSR253101R1254
- Brand:
- ABB
Available to back order for despatch 18/06/2024
Added
Price Each
£264.21
(exc. VAT)
£317.05
(inc. VAT)
| Units | Per unit |
| 1 + | £264.21 |
- RS Stock No.:
- 237-5085
- Mfr. Part No.:
- 2CSR253101R1254
- Brand:
- ABB
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details

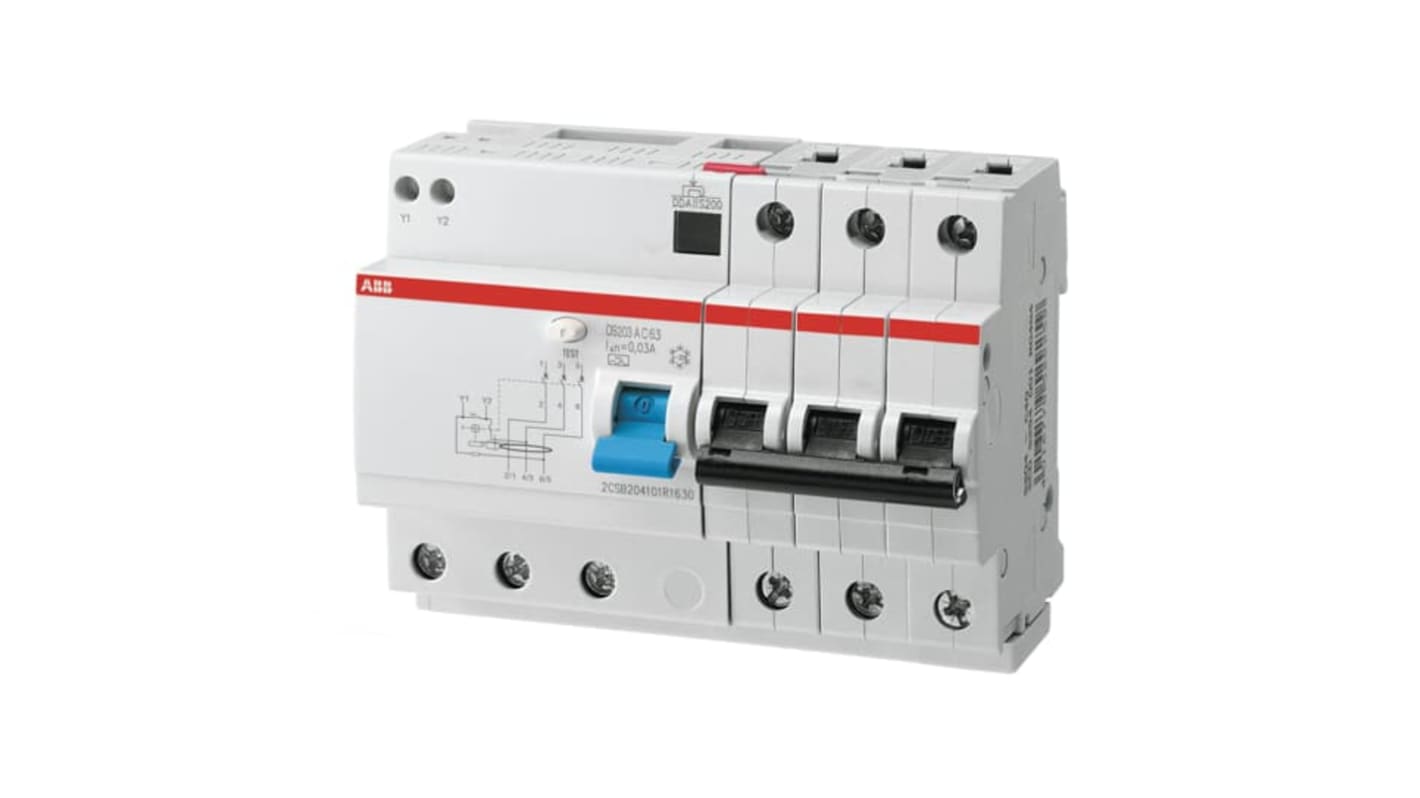

The ABB RCBOs DS200 series has the function to protect against overload and short-circuit currents and protection against the effects of sinusoidal alternating earth fault currents and protection against indirect contacts and additional protection against direct contacts. Number of poles is 3 and rated current is 25A.
Standards : IEC/EN 60947-2
IEC/EN 61009-1
Operating Characteristic : Instantaneous
Type of Residual Current is A type
Ambient Air Temperature: Operation -25 ... +55 °C
Storage -40 ... +70 °C
IEC/EN 61009-1
Operating Characteristic : Instantaneous
Type of Residual Current is A type
Ambient Air Temperature: Operation -25 ... +55 °C
Storage -40 ... +70 °C
Specifications
Attribute | Value |
|---|---|
| Current Rating | 25A |
| Number of Poles | 3 |
| Tripping Characteristics | Type C |
| Circuit Breaker Type | RCBO |
| Series | DS200 |
| Rated AC Voltage | 400V |
