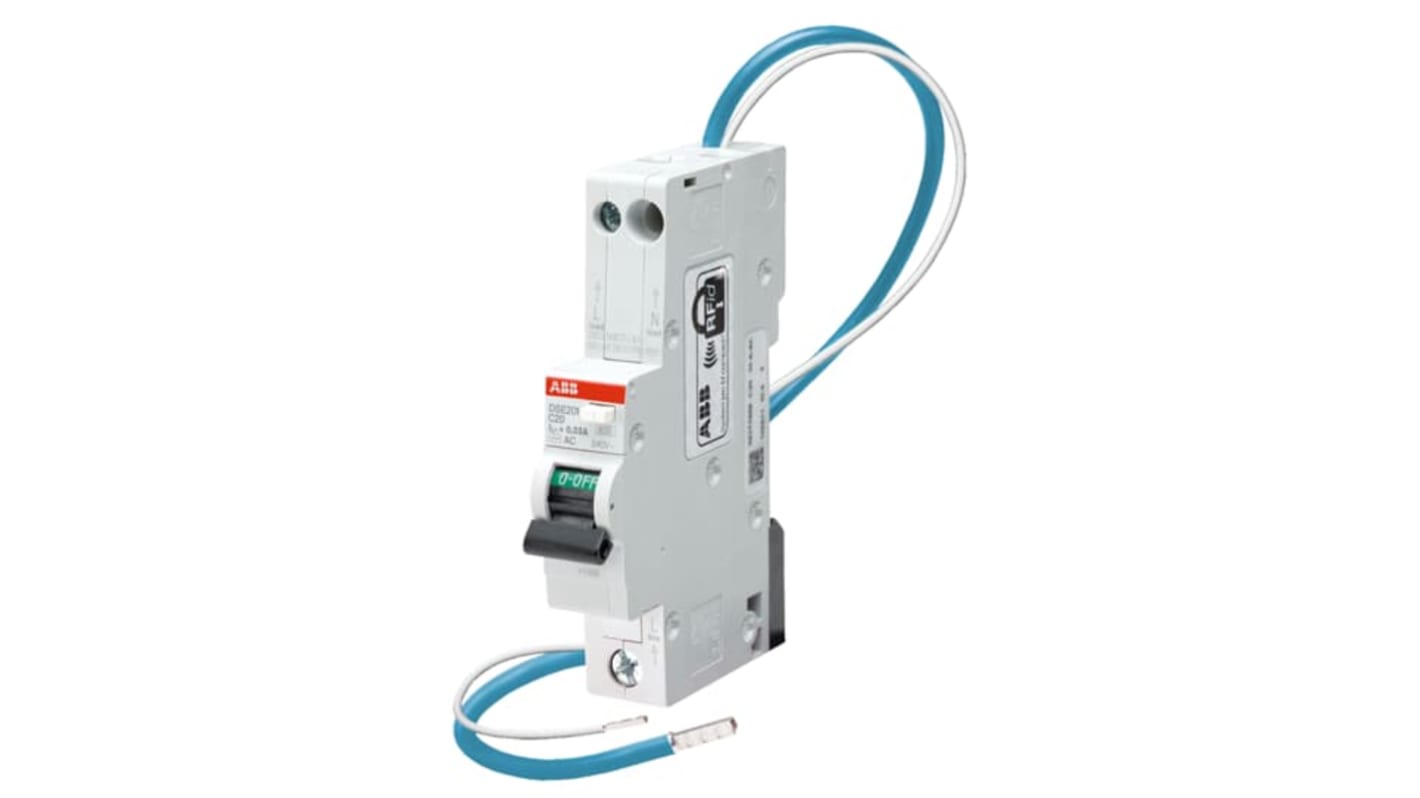

ABB RCBO, 16A Current Rating, 2P Poles, 30mA Trip Sensitivity, Type C

RS Stock No.:: 231-9933
Mfr. Part No.:: 2CSR255151R1164 DSE201 C16 A30
Brand:: ABB

ABB RCBO, 16A Current Rating, 2P Poles, 30mA Trip Sensitivity, Type C

View all RCBOs

Subtotal (1 unit)*

£62.73

(exc. VAT)

£75.28

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

8 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£62.73

*price indicative

RS Stock No.:: 231-9933
Mfr. Part No.:: 2CSR255151R1164 DSE201 C16 A30
Brand:: ABB

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB
	Current Rating	16A
	Number of Poles	2
	Trip Sensitivity	30mA
	Tripping Characteristics	Type C
	Circuit Breaker Type	RCBO
	Series	DSE201
	Rated AC Voltage	240V
	Mounting Style	DIN Rail Mount
	Break Time	Instantaneous
	Overall Depth	69mm
	Overall Length	69mm
	Terminal Contact Type	Screw
	Special Features	Short Circuit Protection
	Breaking Capacity at Maximum Voltage Rating	6 kA
	Overall Width	18mm
	Reset Actuator Type	Toggle Switch

	Select all
	Brand ABB
	Current Rating 16A
	Number of Poles 2
	Trip Sensitivity 30mA
	Tripping Characteristics Type C
	Circuit Breaker Type RCBO
	Series DSE201
	Rated AC Voltage 240V
	Mounting Style DIN Rail Mount
	Break Time Instantaneous
	Overall Depth 69mm
	Overall Length 69mm
	Terminal Contact Type Screw
	Special Features Short Circuit Protection
	Breaking Capacity at Maximum Voltage Rating 6 kA
	Overall Width 18mm
	Reset Actuator Type Toggle Switch

ABB DSE201 Series RCBO, 16A Current Rating, 30mA Trip Sensitivity - 2CSR255151R1164 DSE201 C16 A30

This RCBO is a compact electrical safety device designed for effective overcurrent and earth fault current protection. The 2 Pole design ensures reliable operation in domestic and industrial applications. With a current rating of 16A and a trip sensitivity of 30 mA, this device is suitable for a wide range of circuits and is designed to be mounted on a DIN rail, measuring 69mm x 18mm x 69mm.

Features & Benefits

• Instantaneous tripping for immediate fault response
• Short circuit protection enhances electrical safety
• 2 Pole configuration for versatile circuit applications
• Type C characteristics ideal for motor protection
• Rated breaking capacity of 6 kA for robust performance
• Screw terminal connections simplify installation and maintenance

Applications

• Used for protecting circuits in residential and commercial settings
• Ideal for requiring short circuit protection
• Suitable for installations where earth fault currents need monitoring
• Employed in automation and electrical distribution systems
• Utilised in mechanical systems requiring reliable overload protection

What type of mounting does this device use?

It is designed for DIN rail mounting, allowing for straightforward installation within distribution boards and consumer units.

What are the key advantages of using a 30 mA trip sensitivity?

The 30 mA trip sensitivity provides essential protection against electric shocks, making it suitable for applications where direct contact is possible.

How does this RCBO ensure protection against overload?

The built-in overcurrent protection monitors the electrical load, automatically tripping the circuit when excessive current is detected, thus preventing damage.

What is the significance of the 6 kA breaking capacity?

The 6 kA breaking capacity ensures that the device can effectively interrupt heavy fault currents without sustaining damage, maintaining system integrity.

How does the Type C characteristic enhance operational reliability?

The Type C tripping characteristic allows the device to handle inrush currents typically associated with motor starts, providing robust protection without unnecessary nuisance tripping.
