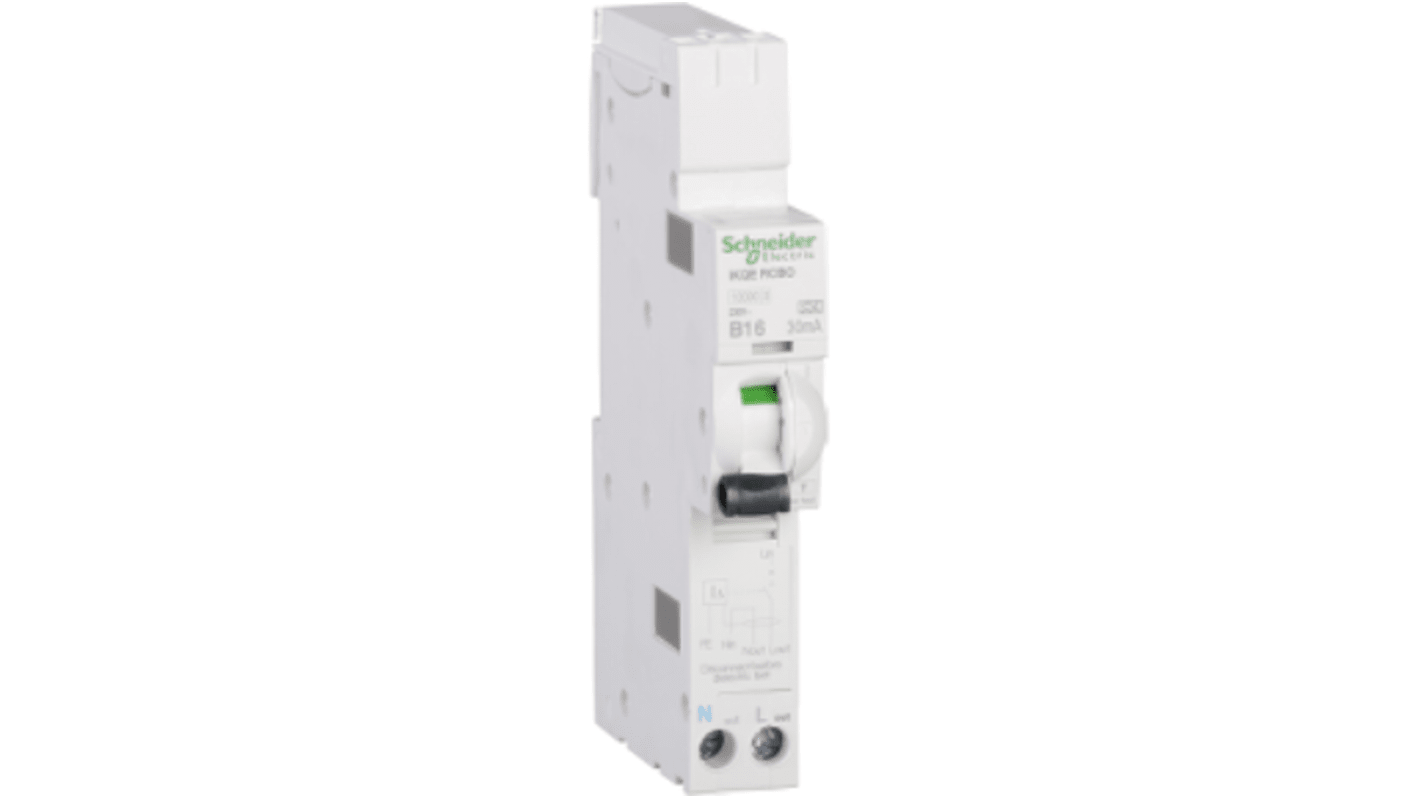

Schneider Electric RCBO, 16A Current Rating, 1P Poles, 30mA Trip Sensitivity, Type B, Acti9 Range

RS Stock No.:: 222-8512
Mfr. Part No.:: SEE116B03
Brand:: Schneider Electric

Schneider Electric RCBO, 16A Current Rating, 1P Poles, 30mA Trip Sensitivity, Type B, Acti9 Range

Subtotal (1 unit)*

£137.42

(exc. VAT)

£164.90

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

17 unit(s) ready to ship
Plus 3 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£137.42

*price indicative

RS Stock No.:: 222-8512
Mfr. Part No.:: SEE116B03
Brand:: Schneider Electric

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Current Rating	16A
	Number of Poles	1
	Range	Acti9
	Trip Sensitivity	30mA
	Circuit Breaker Type	RCBO
	Series	IC60N
	Tripping Characteristics	Type B
	Rated AC Voltage	400V
	Mounting Style	DIN Rail Mount
	Earth Leakage Protection Type	A
	Standards Met	IEC
	Special Features	Short Circuit Protection
	Overall Dimensions	18 x 117 x 70mm
	Application	Distribution
	Tripping Mechanism	Thermal-Magnetic
	Breaking Capacity at Maximum Voltage Rating	10 kA
	Terminal Contact Type	Screw
	Overall Width	117mm
	Overall Depth	70mm
	Break Time	Instantaneous
	Overall Length	18mm

	Select all
	Brand Schneider Electric
	Current Rating 16A
	Number of Poles 1
	Range Acti9
	Trip Sensitivity 30mA
	Circuit Breaker Type RCBO
	Series IC60N
	Tripping Characteristics Type B
	Rated AC Voltage 400V
	Mounting Style DIN Rail Mount
	Earth Leakage Protection Type A
	Standards Met IEC
	Special Features Short Circuit Protection
	Overall Dimensions 18 x 117 x 70mm
	Application Distribution
	Tripping Mechanism Thermal-Magnetic
	Breaking Capacity at Maximum Voltage Rating 10 kA
	Terminal Contact Type Screw
	Overall Width 117mm
	Overall Depth 70mm
	Break Time Instantaneous
	Overall Length 18mm

Schneider Electric IC60N Series RCBO, 16A Current Rating, 30mA Trip Sensitivity - SEE116B03

This RCBO is designed for effective earth leakage and overcurrent protection in distribution applications. With a current rating of 16A and a sensitivity of 30mA, this compact model measures 18 x 117 x 70 mm, making it an efficient choice for DIN rail mounting configurations. It features a thermal-magnetic tripping mechanism, ensuring reliability and rapid response to overload and fault conditions.

Features & Benefits

• Incorporates short circuit protection for enhanced safety
• Instantaneous tripping for immediate fault response
• Thermal-magnetic technology ensuring reliable operation
• Compact design optimises space on DIN rail mounts

Applications

• Used for protecting electrical installations in residential buildings
• Ideal for industrial automation systems requiring fault protection
• Suitable for use in commercial environments to safeguard equipment
• Compatible with various distribution blocks for streamlined installation

How does the integrated earth leakage protection function?

The integrated earth leakage protection utilises a voltage-dependent tripping mechanism that detects discrepancies in current flow, ensuring instant disconnection to prevent hazards.

What are the operational temperature limits for this device?

The device can operate effectively within a temperature range of -25°C to 55°C, accommodating various environmental conditions.

What types of terminals can be connected to this RCBO?

It features screw clamp terminals able to accommodate 1 to 16mm² rigid and 1 to 16mm² flexible wires upstream, and 1 to 10mm² for downstream connections.

How does this device indicate operational status?

A local ON/OFF indicator provides clear visual feedback on the operational status, enhancing user awareness.
