Europa RCBO, 16A Current Rating, 1P Poles, 30mA Trip Sensitivity, Type AC, EUC7R Range

View all RCBOs

Subtotal (1 unit)*

£60.76

(exc. VAT)

£72.91

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship
  • Plus 19 unit(s) shipping from 12 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£60.76

*price indicative

RS Stock No.:
210-4739
Mfr. Part No.:
EUC7RC.16/1CA
Brand:
Europa
Find similar products by selecting one or more attributes.
Select all

Brand

Europa

Current Rating

16A

Number of Poles

1

Trip Sensitivity

30mA

Tripping Characteristics

Type AC

Range

EUC7R

Circuit Breaker Type

RCBO

Series

EUC7R

Rated AC Voltage

240V

Mounting Style

DIN Rail Mount

Overall Dimensions

119 x 18 x 66mm

Overall Length

119mm

Overall Width

18mm

COO (Country of Origin):
CN

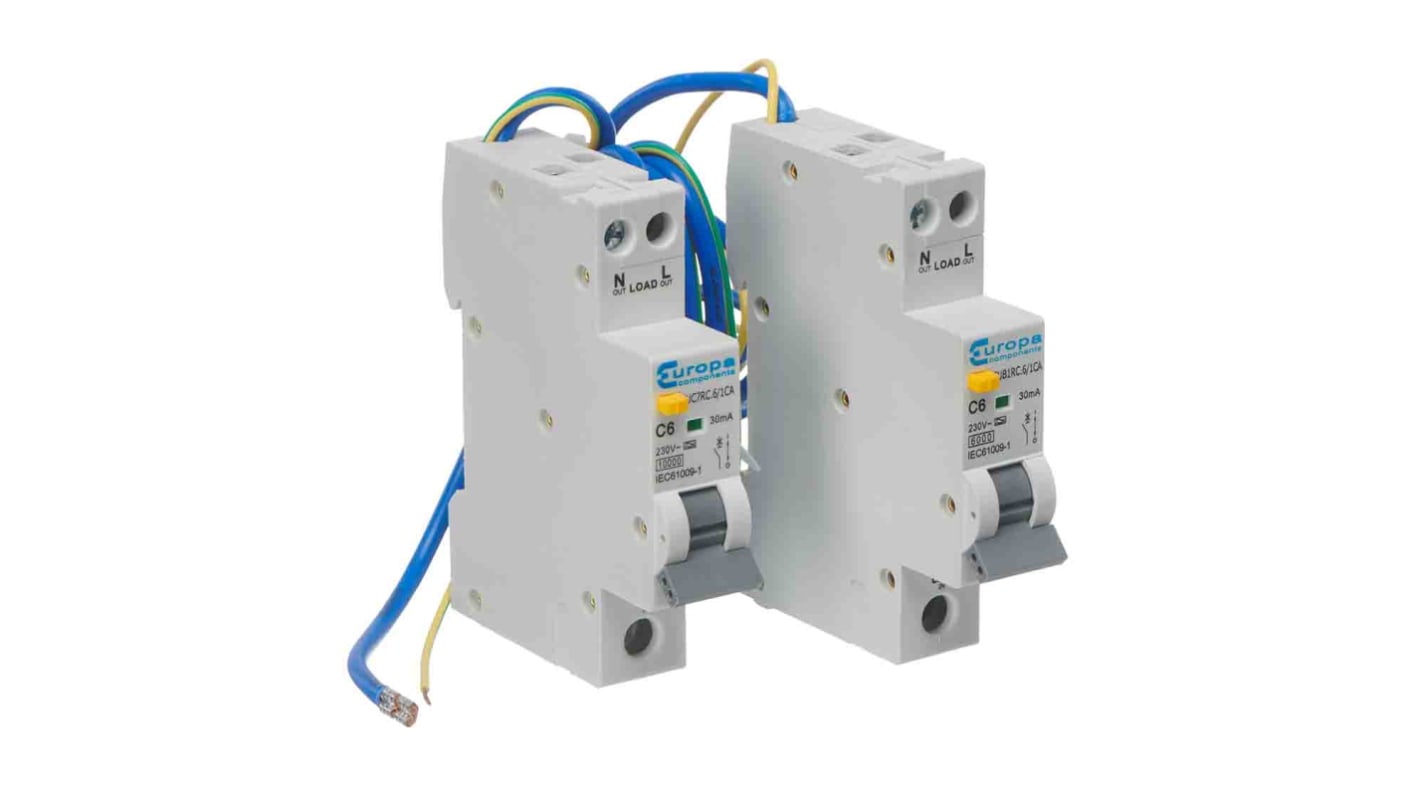

The Europa EUC7R series Type AC RCBO has rated current of 16A and rated residual operating current of 30mA. It has 1 pole and rated short circuit capacity of 10kA. This RCBO has C characteristic curve.

Standard Tripping Time 1 x Iδn: ≤ 300ms
Standard Tripping Time 5 x Iδn: ≤ 40ms
Rated Voltage (Ue): AC 230(240)V
Terminal protection: IP20
