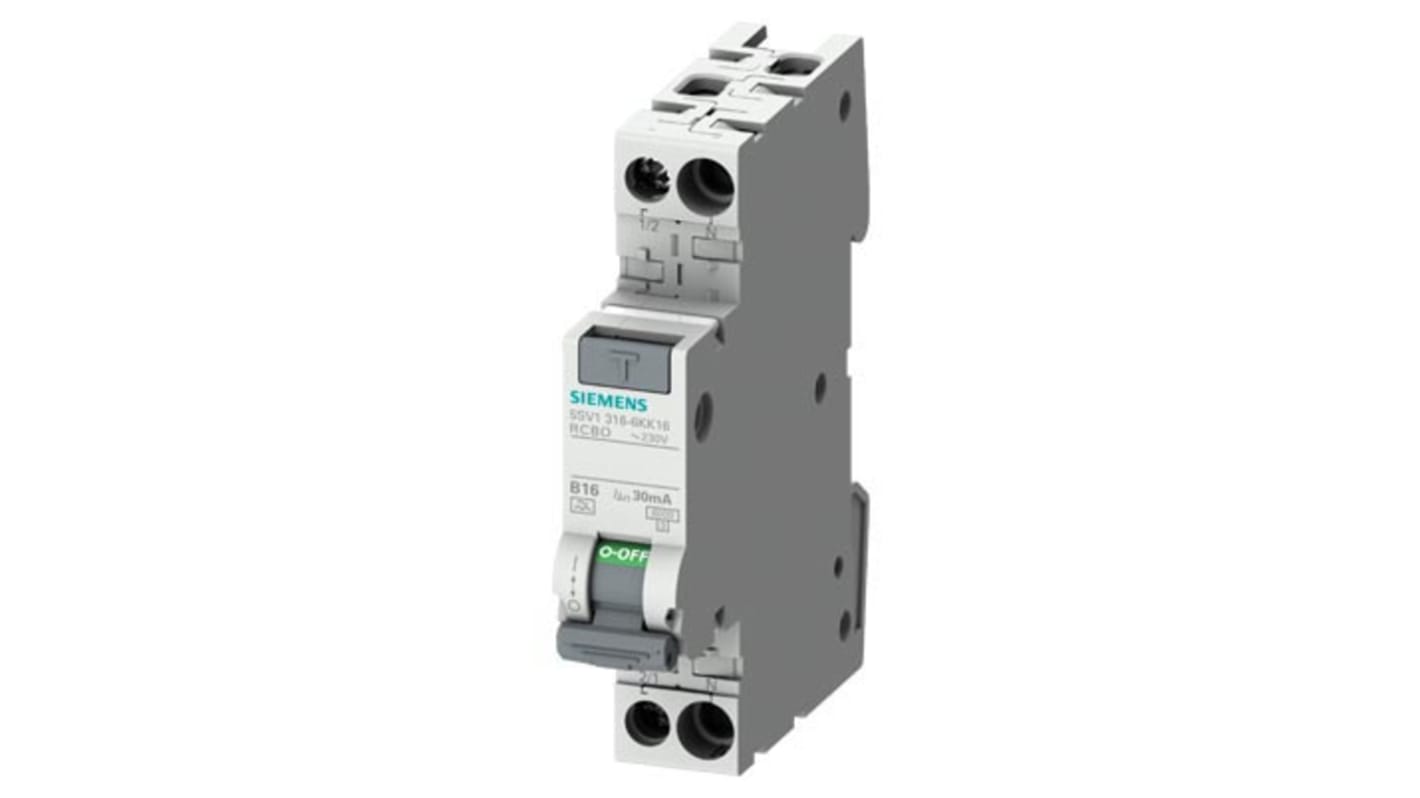

Siemens RCBO, 10A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type A, SENTRON Range
- RS Stock No.:
- 187-3281
- Distrelec Article No.:
- 301-49-280
- Mfr. Part No.:
- 5SV1316-6KK10
- Brand:
- Siemens
Subtotal (1 unit)*
£101.90
(exc. VAT)
£122.28
(inc. VAT)
FREE delivery for orders over £50.00
- 13 unit(s) ready to ship
- Plus 17 unit(s) ready to ship from another location
Units | Per unit |
|---|---|
| 1 + | £101.90 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 187-3281
- Distrelec Article No.:
- 301-49-280
- Mfr. Part No.:
- 5SV1316-6KK10
- Brand:
- Siemens
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Current Rating | 10A | |
| Number of Poles | 1P+N | |
| Range | SENTRON | |
| Circuit Breaker Type | RCBO | |
| Trip Sensitivity | 30mA | |
| Series | 5SV1316 | |
| Tripping Characteristics | Type A | |
| Rated AC Voltage | 195V | |
| Mounting Style | DIN Rail Mount | |
| Earth Leakage Protection Type | A | |
| Better World Product | Yes | |
| Better World Claim | Concentrated or compact solution, Extended product life, Low carbon manufacture | |
| Breaking Capacity at Maximum Voltage Rating | 6 kA | |
| Terminal Contact Type | Screw | |
| Overall Width | 70mm | |
| Standards Met | CE | |
| Break Time | Instantaneous | |
| Overall Length | 17.6mm | |
| Overall Depth | 89.8mm | |
| Overall Dimensions | 17.6 x 70 x 89.8mm | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Current Rating 10A | ||
Number of Poles 1P+N | ||
Range SENTRON | ||
Circuit Breaker Type RCBO | ||
Trip Sensitivity 30mA | ||
Series 5SV1316 | ||
Tripping Characteristics Type A | ||
Rated AC Voltage 195V | ||
Mounting Style DIN Rail Mount | ||
Earth Leakage Protection Type A | ||
Better World Product Yes | ||
Better World Claim Concentrated or compact solution, Extended product life, Low carbon manufacture | ||
Breaking Capacity at Maximum Voltage Rating 6 kA | ||
Terminal Contact Type Screw | ||
Overall Width 70mm | ||
Standards Met CE | ||
Break Time Instantaneous | ||
Overall Length 17.6mm | ||
Overall Depth 89.8mm | ||
Overall Dimensions 17.6 x 70 x 89.8mm | ||
- COO (Country of Origin):
- RO
Siemens SENTRON 5SV1 RCBOs
Compared to more traditional devices requiring 2 modular widths, the 5SV1 offers a space saving of 50%, allowing more protection devices to be installed into an existing distributor.
Features
Can be combined with 5SM6 to provide personal, line and preventative fire protection utilising only 2 module widths
