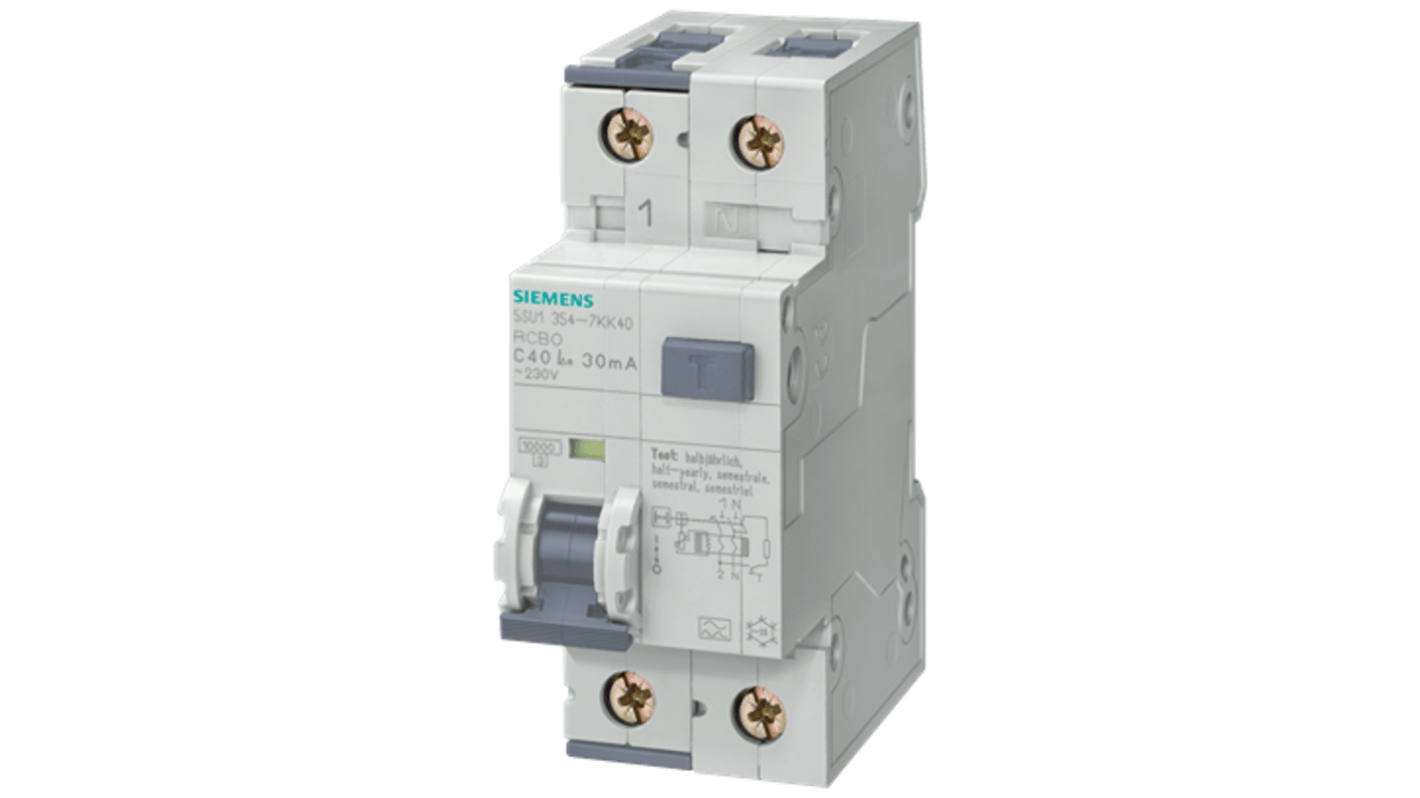

Siemens Residual Current Circuit Breaker with Overload Protection, 6 A Current Rating, 2-Pole, 30 mA Trip Sensitivity,
- RS Stock No.:
- 627-034
- Mfr. Part No.:
- 5SU1354-6GV06
- Brand:
- Siemens
Subtotal (1 pack of 36 units)*
£4,751.89
(exc. VAT)
£5,702.27
(inc. VAT)
Add 1 pack to get free delivery
Temporarily out of stock
- Shipping from 20 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £4,751.89 | £131.997 |
*price indicative
- RS Stock No.:
- 627-034
- Mfr. Part No.:
- 5SU1354-6GV06
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Residual Current Circuit Breaker with Overload Protection | |
| Current Rating | 6 A | |
| Number of Poles | 2 | |
| Range | SENTRON | |
| Series | 5SU1 | |
| Trip Sensitivity | 30mA | |
| Tripping Characteristics | Type B | |
| Rated AC Voltage | 240 V ac | |
| Terminal Type | Screw | |
| Earth Leakage Protection Type | Type A | |
| Depth | 77mm | |
| Width | 36 mm | |
| Height | 90mm | |
| Breaking Capacity | 10kA | |
| Standards/Approvals | EN 61009-1 | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Residual Current Circuit Breaker with Overload Protection | ||
Current Rating 6 A | ||
Number of Poles 2 | ||
Range SENTRON | ||
Series 5SU1 | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 240 V ac | ||
Terminal Type Screw | ||
Earth Leakage Protection Type Type A | ||
Depth 77mm | ||
Width 36 mm | ||
Height 90mm | ||
Breaking Capacity 10kA | ||
Standards/Approvals EN 61009-1 | ||
- COO (Country of Origin):
- RO
The Siemens RCBO (Residual Current Circuit Breaker with Overcurrent Protection) designed for modular low-voltage distribution systems. It combines protection against overload, short circuit, and residual currents in a compact format.
2-pole configuration rated for 6 A with Type A tripping and B6 characteristic, suitable for 230/240 V AC systems
Breaking capacity of 10 kA according to EN 61009-1 and 35 kA according to IEC 60947-2, ensuring high fault tolerance
RoHS-compliant with IP20 protection class, modular width of 2 units, and net weight of 281 g
