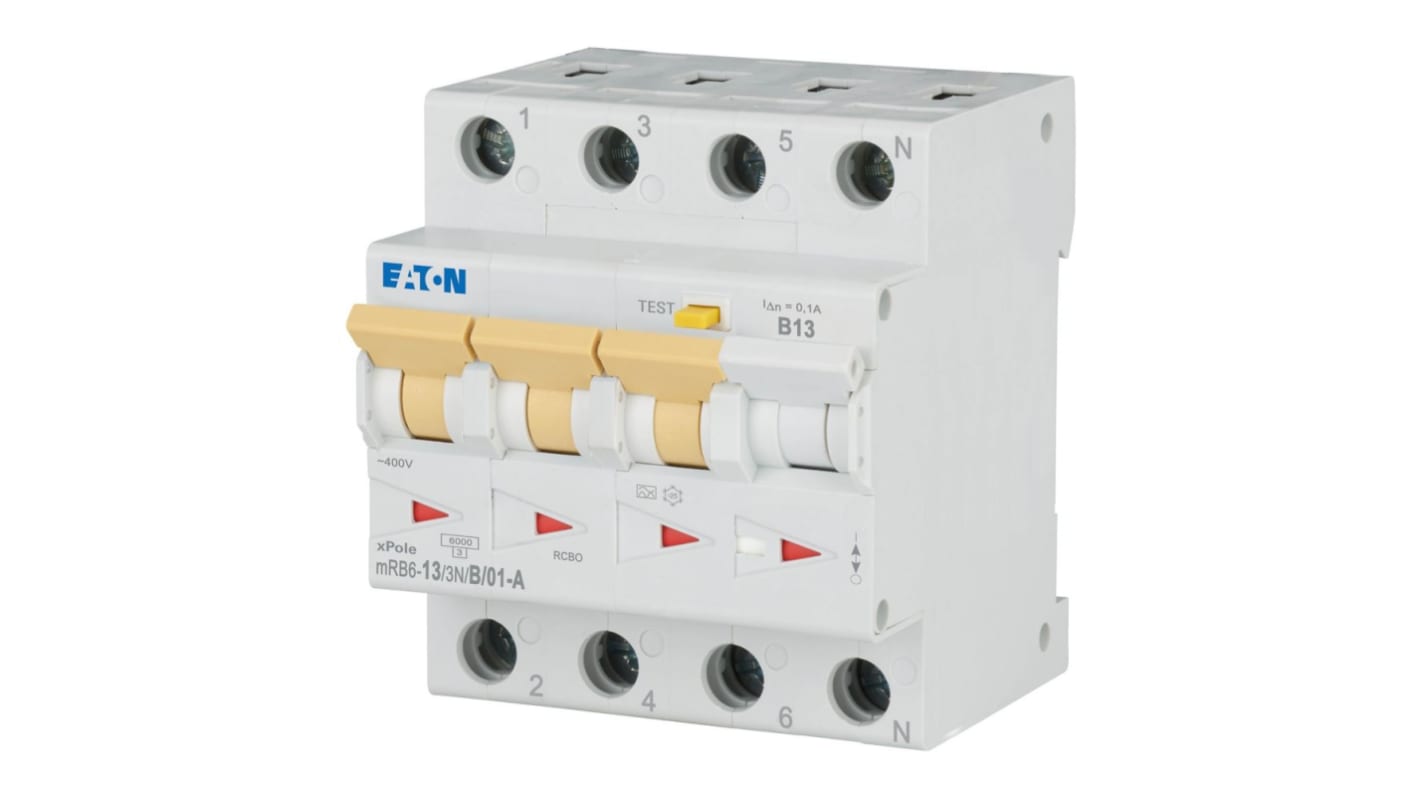

Eaton Residual Current Circuit Breaker with Overload Protection, 13 A Current Rating, 3-Pole, 100 mA Trip Sensitivity,
- RS Stock No.:
- 231-688
- Mfr. Part No.:
- 120653 mRB6-13/3N/B/01-A
- Brand:
- Eaton
Subtotal (1 unit)*
£531.64
(exc. VAT)
£637.97
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 31 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £531.64 |
*price indicative
- RS Stock No.:
- 231-688
- Mfr. Part No.:
- 120653 mRB6-13/3N/B/01-A
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Current Rating | 13 A | |
| Product Type | Residual Current Circuit Breaker with Overload Protection | |
| Number of Poles | 3 | |
| Series | mRB4/6 | |
| Range | xPole | |
| Trip Sensitivity | 100mA | |
| Tripping Characteristics | Type B | |
| Rated AC Voltage | 400 V ac | |
| Terminal Type | Busbar | |
| Width | 75.5 mm | |
| Height | 80mm | |
| Depth | 70mm | |
| Standards/Approvals | CE, RoHS | |
| Breaking Capacity | 0.25kA | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Current Rating 13 A | ||
Product Type Residual Current Circuit Breaker with Overload Protection | ||
Number of Poles 3 | ||
Series mRB4/6 | ||
Range xPole | ||
Trip Sensitivity 100mA | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 400 V ac | ||
Terminal Type Busbar | ||
Width 75.5 mm | ||
Height 80mm | ||
Depth 70mm | ||
Standards/Approvals CE, RoHS | ||
Breaking Capacity 0.25kA | ||
- COO (Country of Origin):
- RO
The Eaton Moeller series xPole - mRB4/6 RCBO is a cutting-edge residual-current circuit breaker that combines overcurrent protection with exceptional reliability. Designed for both residential and commercial applications, this innovative device offers essential protection against electrical faults, ensuring safety and peace of mind. With its robust features, such as a compact design and advanced compliance to international standards, this circuit breaker is tailored to meet the demands of modern electrical installations. Its efficient operation in varying environmental conditions makes it an optimal choice for safeguarding your electrical systems effectively and sustainably.
Offers reliable protection against residual current and overcurrent faults
Compact dimensions facilitate easy installation in limited spaces
Robust design ensures durability and longevity in various applications
Conforms to stringent safety standards for enhanced peace of mind
Dual functionality combines RCD and MCB capabilities in one device
Suitable for both residential and commercial settings
Environmentally friendly, reflecting a commitment to sustainability
