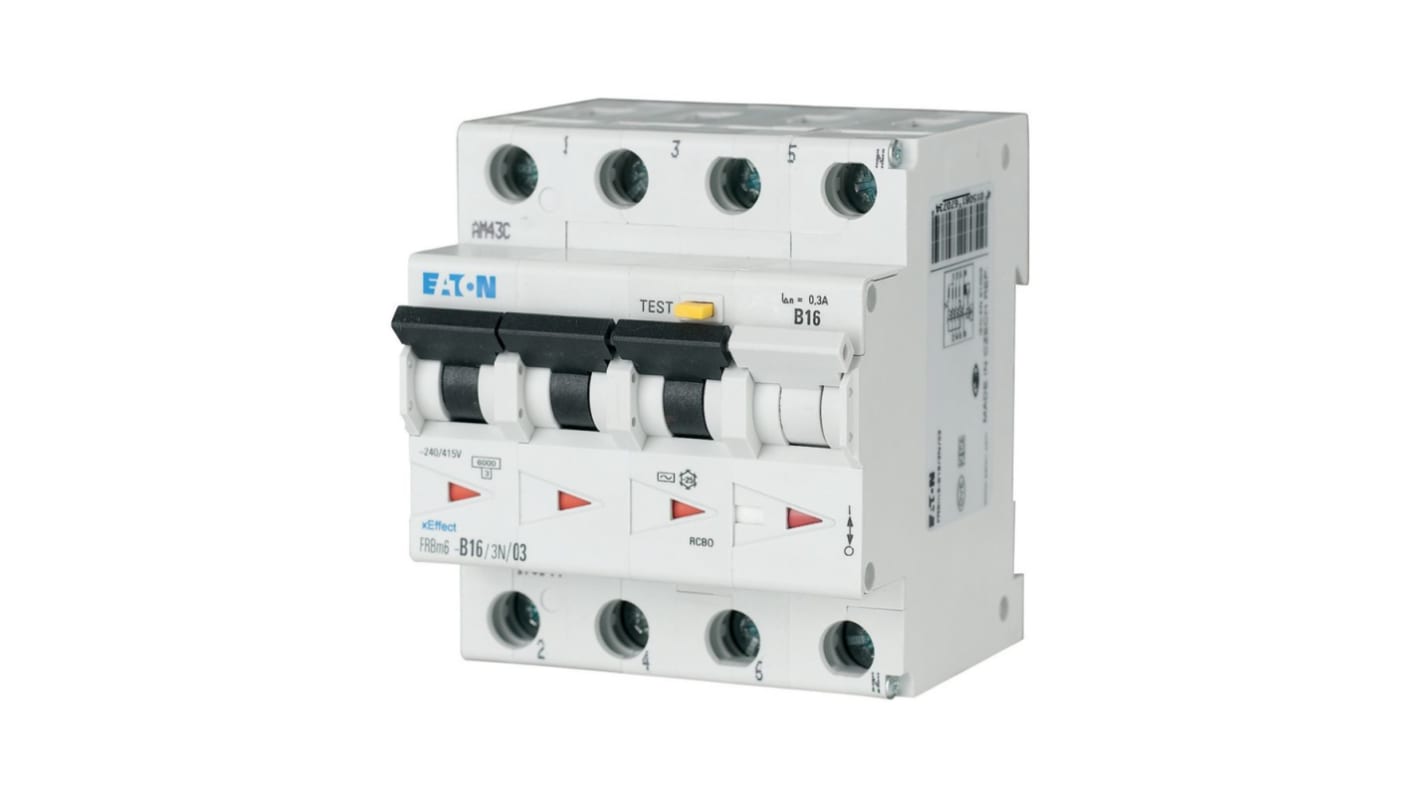

Eaton Residual Current Circuit Breaker with Overload Protection, 16 A Current Rating, 4-Pole, 30 mA Trip Sensitivity,

View all RCBOs

Subtotal (1 unit)*

£246.16

(exc. VAT)

£295.39

(inc. VAT)

Add to Basket
Select or type quantity
Orders below £50.00 (exc. VAT) cost £6.95.
In Stock
  • Plus 10 unit(s) shipping from 16 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£246.16

*price indicative

RS Stock No.:
123-717
Mfr. Part No.:
170999 FRBM6-C16/3N/003-A
Brand:
Eaton
Find similar products by selecting one or more attributes.
Select all

Brand

Eaton

Product Type

Residual Current Circuit Breaker with Overload Protection

Current Rating

16 A

Range

FRBm6

Series

FRBm6

Number of Poles

4

Trip Sensitivity

30mA

Tripping Characteristics

Type C, Type A

Mount Type

DIN Rail

Rated AC Voltage

415 V ac

Depth

80mm

Height

75.5mm

Width

70 mm

Standards/Approvals

IEC 61373 CE, EN45545-2, RoHS

Application

Switchgear For Industrial And Advanced Commercial Applications

Breaking Capacity

6kA

Tripping Mechanism

Non-Delayed

RoHS Status: Exempt

COO (Country of Origin):
RO
The Eaton RCBO is a residual current circuit breaker with overcurrent protection. The RCBO is a versatile device combining a high quality residual current device with a miniature circuit breaker. It features line voltage dependent operation, a red and green contact position indicator, and rear plug protection at the terminals. Its tri stable slide catch allows for easy removal from existing bus bar systems.

CE marked

RoHS compliant

IP20 degree of protection

Suitable for outdoor use

Concurrently switching N neutral
