Accuride Telescopic Rail, 381mm Depth, 67kg Max Load
- RS Stock No.:
- 310-4969
- Mfr. Part No.:
- DZ3307-0014
- Brand:
- Accuride
Image representative of range
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Pair
£90.59
(exc. VAT)
£108.71
(inc. VAT)
- RS Stock No.:
- 310-4969
- Mfr. Part No.:
- DZ3307-0014
- Brand:
- Accuride
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Accuride | |
| Type | Telescopic Slide | |
| Maximum Load | 67kg | |
| Material | Steel | |
| Depth | 381mm | |
| Width | 12.7mm | |
| Height | 50.8mm | |
| Slide Length Closed | 356mm | |
| Extension | 100+% | |
| Lockout | Yes | |
| Series | DZ3307 | |
Select all | ||
|---|---|---|
Brand Accuride | ||
Type Telescopic Slide | ||
Maximum Load 67kg | ||
Material Steel | ||
Depth 381mm | ||
Width 12.7mm | ||
Height 50.8mm | ||
Slide Length Closed 356mm | ||
Extension 100+% | ||
Lockout Yes | ||
Series DZ3307 | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- US
Models 201/204/301/305/3307/3607/3832

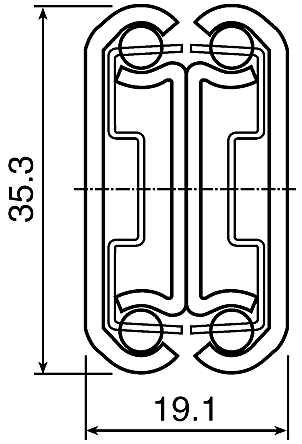

Strong steel construction, 35.3mm high, electro zinc plated and clear chromate
Precision high performance bearings
Mounting brackets and fittings supplied separately
Recommended fixings M4 cheese head screws (2.5mm high x 9.6mm diameter maximum) to DIN 85
Front disconnect and lockout features available for Models 204, 305,3307 and 3607
Precision high performance bearings
Mounting brackets and fittings supplied separately
Recommended fixings M4 cheese head screws (2.5mm high x 9.6mm diameter maximum) to DIN 85
Front disconnect and lockout features available for Models 204, 305,3307 and 3607
Note
All fitting positions must be used to achieve maximum load rating. Flat mounting reduces stated load carrying capacity to approximately 25%. Models 305//307 are dividable for easy assembly/disassembly. Model 305 disconnects for easy assembly/disassembly and has recessed mounting capability to reach a 100% extension with just 10mm side space
