Fibox Polycarbonate Front Panel, 257 x 157 x 30mm
- RS Stock No.:
- 738-9155
- Mfr. Part No.:
- FC PC 25/22 SET
- Brand:
- Fibox

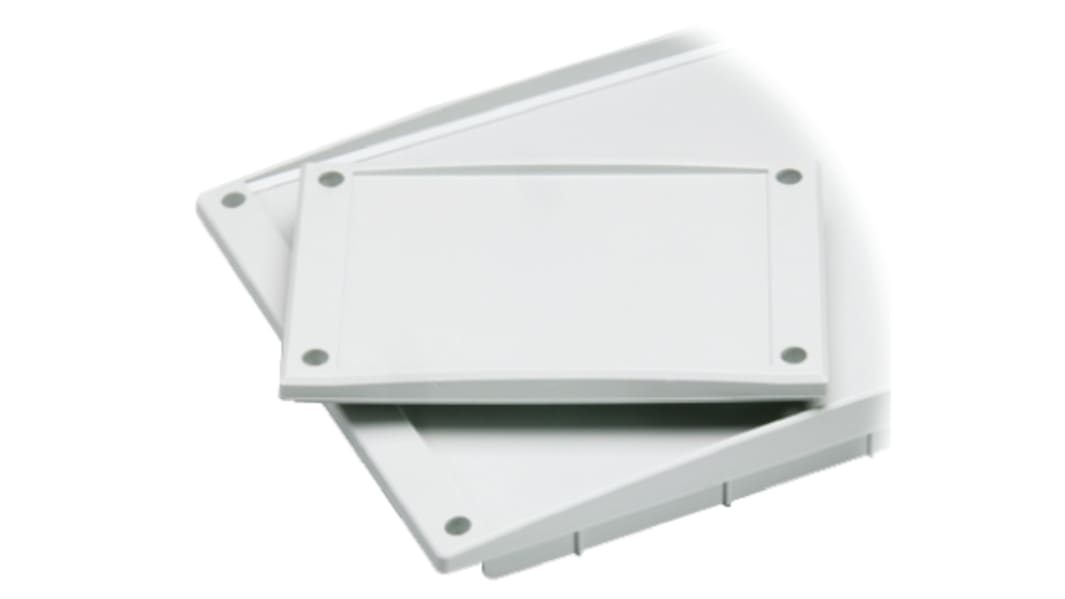

Image representative of range
Subtotal (1 unit)*
£14.95
(exc. VAT)
£17.94
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 22 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £14.95 |
*price indicative
- RS Stock No.:
- 738-9155
- Mfr. Part No.:
- FC PC 25/22 SET
- Brand:
- Fibox
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Fibox | |
Type | Front Panel | |
Material | Polycarbonate | |
Width | 30mm | |
Dimensions | 257 x 157 x 30mm | |
Length | 257mm | |
Select all | ||
---|---|---|
Brand Fibox | ||
Type Front Panel | ||
Material Polycarbonate | ||
Width 30mm | ||
Dimensions 257 x 157 x 30mm | ||
Length 257mm | ||
- COO (Country of Origin):
- FI
CARDMASTER Polycarbonate Enclosures - IP65
The Cardmaster range of enclosures from Fibox are ideal for packaging instrumentation, measurement, monitoring and process control equipment. The box provides two compartments, one for circuit board insertion and the other for terminals and wiring.
RoHS Compliant and Halogen Free
Good chemical resistance
Electrically insulated
Temperature range -40 to +80 °C
Flammability rating UL 94-5V
Impact resistance IK07 (side surface), IK08 (front surface)
Good chemical resistance
Electrically insulated
Temperature range -40 to +80 °C
Flammability rating UL 94-5V
Impact resistance IK07 (side surface), IK08 (front surface)
Note
The aluminium front plates fit flush on the front of the enclosure whereas the polycarbonate front plates have a frame and PUR gasket.
Standards
EN 62208: 2003 (50298: 1998). EN 60950. GostR.
