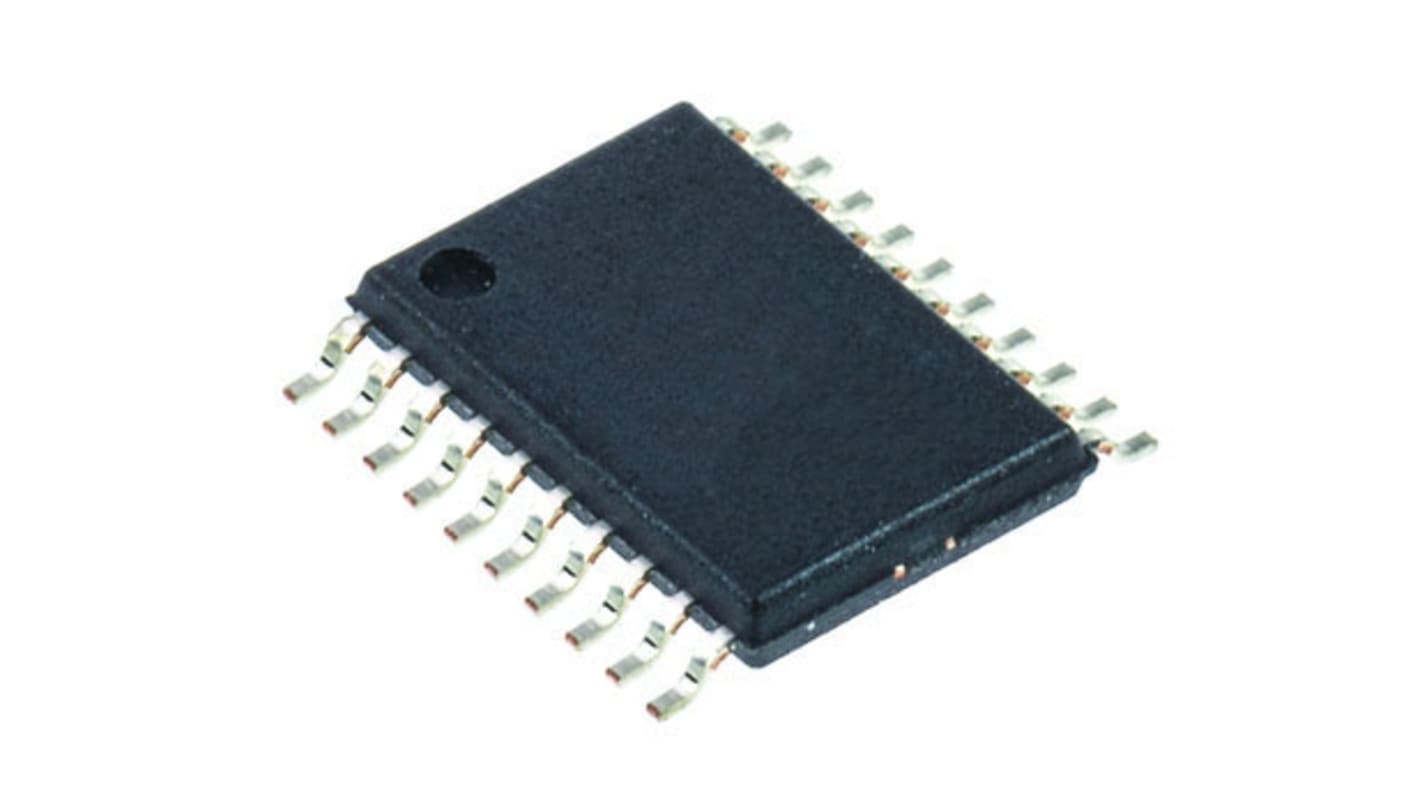

Texas Instruments LM5039MH/NOPB, PWM Controller, 105 V, 2 MHz 20-Pin, HTSSOP
- RS Stock No.:
- 824-6914
- Mfr. Part No.:
- LM5039MH/NOPB
- Brand:
- Texas Instruments
Stock information currently inaccessible
- RS Stock No.:
- 824-6914
- Mfr. Part No.:
- LM5039MH/NOPB
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Maximum Switching Frequency | 2 MHz | |
| Start-up Supply Current | 70µA | |
| Maximum Source Current | 6mA | |
| Maximum Sink Current | 2A | |
| Maximum Supply Current | 6 mA | |
| Zero Power Detection | Yes | |
| Mounting Type | Surface Mount | |
| Package Type | HTSSOP | |
| Pin Count | 20 | |
| Dimensions | 6.5 x 4.4 x 0.9mm | |
| Length | 6.5mm | |
| Width | 4.4mm | |
| Height | 0.9mm | |
| Maximum Operating Supply Voltage | 105 V | |
| Minimum Operating Supply Voltage | 13 V | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Operating Temperature | -40 °C | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Maximum Switching Frequency 2 MHz | ||
Start-up Supply Current 70µA | ||
Maximum Source Current 6mA | ||
Maximum Sink Current 2A | ||
Maximum Supply Current 6 mA | ||
Zero Power Detection Yes | ||
Mounting Type Surface Mount | ||
Package Type HTSSOP | ||
Pin Count 20 | ||
Dimensions 6.5 x 4.4 x 0.9mm | ||
Length 6.5mm | ||
Width 4.4mm | ||
Height 0.9mm | ||
Maximum Operating Supply Voltage 105 V | ||
Minimum Operating Supply Voltage 13 V | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -40 °C | ||
