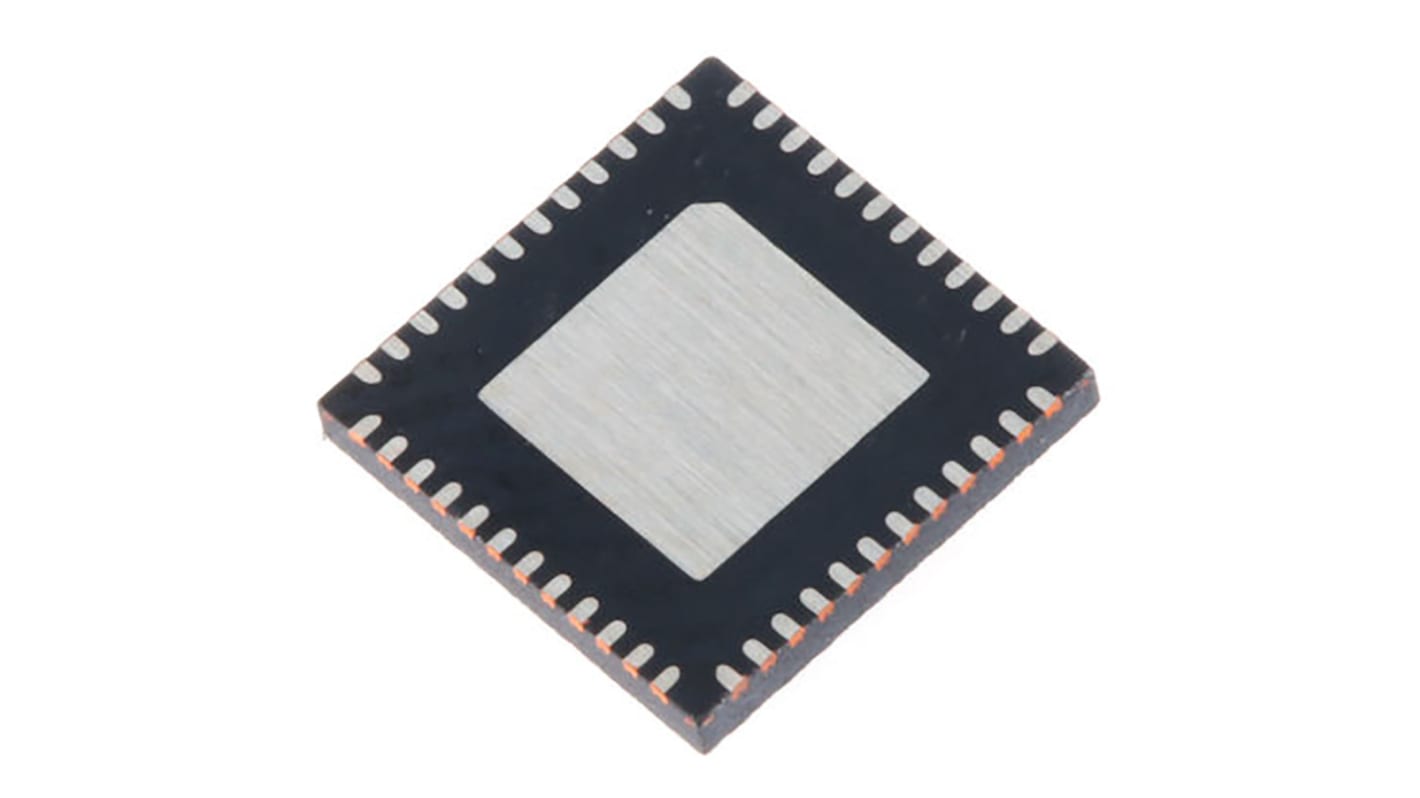

Texas Instruments UCD9224RGZT, PWM Controller, 3.6 V, 2 MHz 48-Pin, QFN
- RS Stock No.:
- 812-4378
- Mfr. Part No.:
- UCD9224RGZT
- Brand:
- Texas Instruments
Discontinued
- RS Stock No.:
- 812-4378
- Mfr. Part No.:
- UCD9224RGZT
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Maximum Switching Frequency | 2 MHz | |
| Maximum Supply Current | 65 mA | |
| Zero Power Detection | Yes | |
| Mounting Type | Surface Mount | |
| Package Type | QFN | |
| Pin Count | 48 | |
| Dimensions | 7.15 x 7.15 x 0.95mm | |
| Length | 7.15mm | |
| Width | 7.15mm | |
| Height | 0.95mm | |
| Maximum Operating Temperature | +125 °C | |
| Maximum Operating Supply Voltage | 3.6 V | |
| Minimum Operating Supply Voltage | 3 V | |
| Minimum Operating Temperature | -40 °C | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Maximum Switching Frequency 2 MHz | ||
Maximum Supply Current 65 mA | ||
Zero Power Detection Yes | ||
Mounting Type Surface Mount | ||
Package Type QFN | ||
Pin Count 48 | ||
Dimensions 7.15 x 7.15 x 0.95mm | ||
Length 7.15mm | ||
Width 7.15mm | ||
Height 0.95mm | ||
Maximum Operating Temperature +125 °C | ||
Maximum Operating Supply Voltage 3.6 V | ||
Minimum Operating Supply Voltage 3 V | ||
Minimum Operating Temperature -40 °C | ||
Digital Controller for Non-Isolated Power, Texas Instruments
Digital Power Control Solutions, Texas Instruments
Texas Instruments offers digitally enabled, configurable and fully programmable power controllers, providing customers with flexibility, efficiency and integration to meet dynamic system needs.
