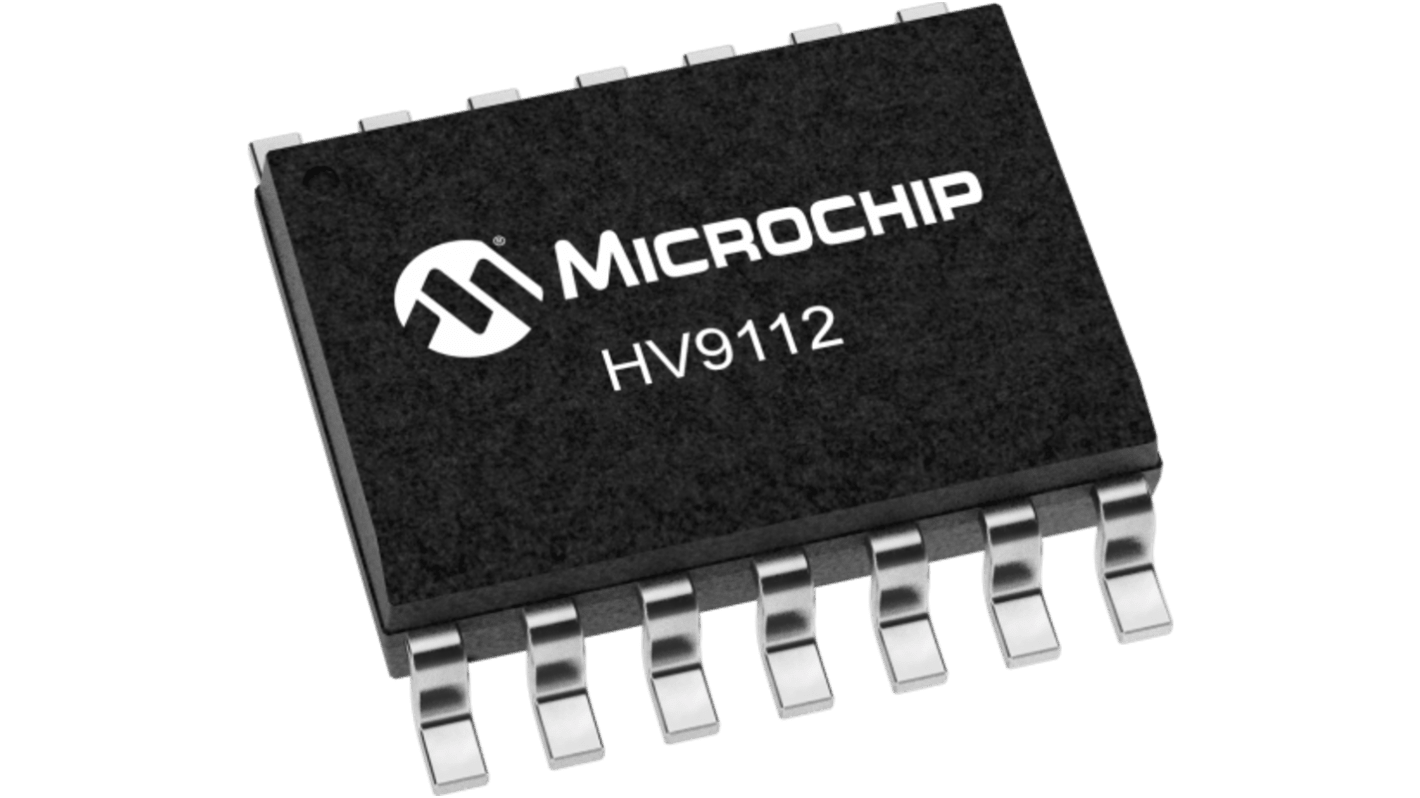

Microchip HV9112NG-G 1 PWM Controller, 3 MHz 80 V 14-Pin, SOIC

View all PWM
Bulk discount available

Subtotal (1 pack of 2 units)*

£4.66

(exc. VAT)

£5.60

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 156 unit(s) shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
2 - 18£2.33£4.66
20 - 98£2.05£4.10
100 - 198£1.845£3.69
200 +£1.615£3.23

*price indicative

RS Stock No.:
649-427
Mfr. Part No.:
HV9112NG-G
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Maximum Switching Frequency

3MHz

Product Type

PWM Controller

Supply Current

0.75mA

Output Voltage

4 V

Output Current

10mA

Number of Outputs

1

Package Type

SOIC

Minimum Supply Voltage

9V

Maximum Supply Voltage

80V

Pin Count

14

Minimum Operating Temperature

-55°C

Maximum Duty Cycle

99%

Maximum Operating Temperature

125°C

PWM Controller Type

Current Mode

Series

HV911

Standards/Approvals

Lead (Pb)-free/RoHS

Automotive Standard

No

COO (Country of Origin):
TH
The Microchip Switch-Mode Power Supply (SMPS) controllers suitable for the control of a variety of converter topologies, including the fly back converter and the forward converter.

Current mode control

Less than 1 mA supply current

Clock frequency up to 1 MHz
