RS PRO Single Pole Single Throw (SPST) Momentary Miniature Push Button Switch, IP67, 13.6 (Dia.)mm, Square Threaded,

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Sub-miniature pushbutton switch, Square

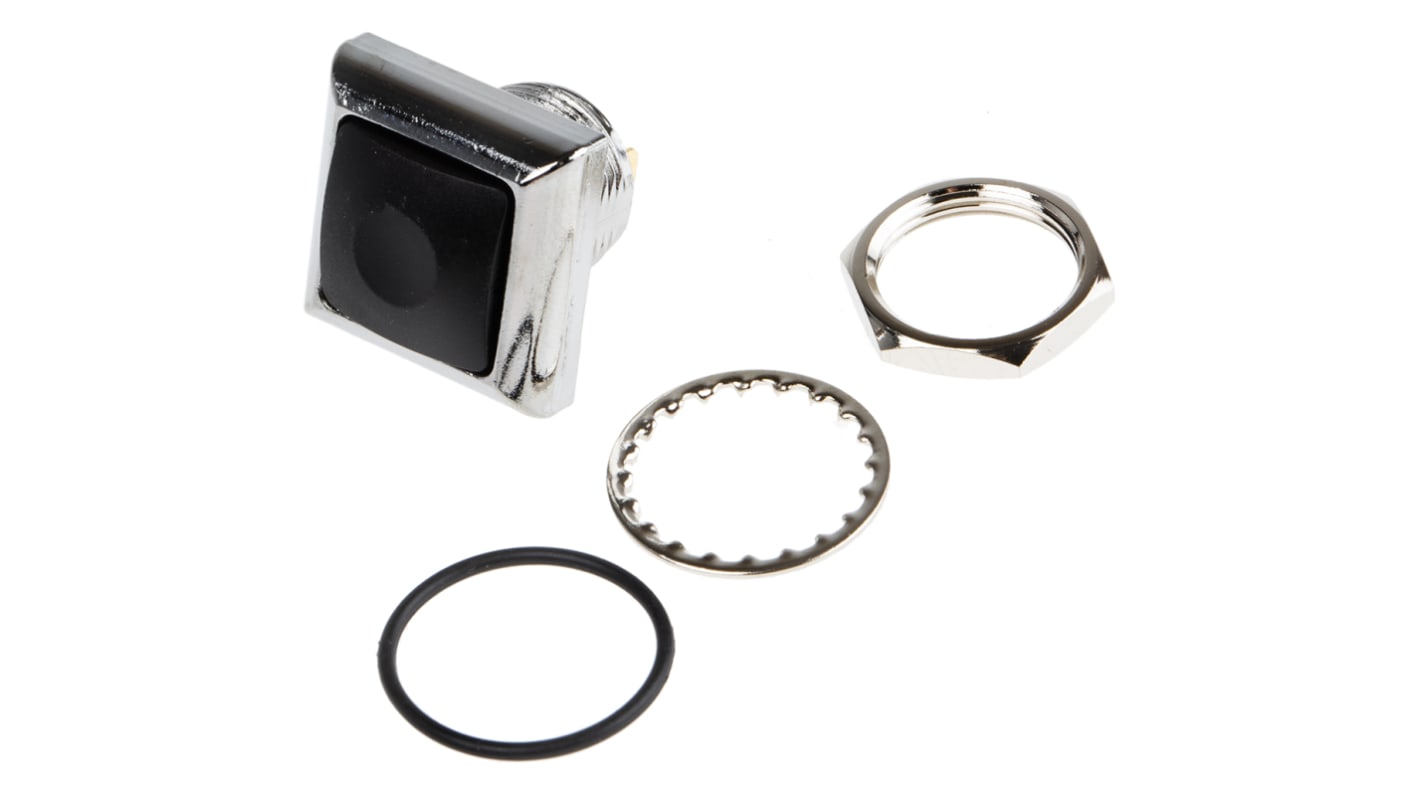

These pushbutton switches have been designed to be suitable for use within a wide range of applications and environments with a temperature range of -30 to +85 °C and are IP7 rated (upper side). They are single pole, single throw with an off-momentary switching action. They are panel mount and each unit is supplied with an M12 nut, locking washer and a splash proof O-ring.

Electrical Life: 500,000 make-and-break cycles at full load
Mechanical life: 1,000,000 cycles min (without load)
Operating force: 2N-5N max
Sealed to IP67 (upper side)
Contact terminals: Gold over silver plated
Panel cut out: 13.6mm
Square button

Specifications
Attribute Value
Switch Operation Momentary
Mounting Type Square Threaded
Illuminated No
Contact Configuration Single Pole Single Throw (SPST)
Panel Cut Out Size 13.6 (Dia.)mm
Panel Cut Out Diameter 13.6mm
IP Rating IP67
Actuator Colour Black
Voltage Rating 50 V dc @ 200 mA, 250 V ac @ 200 mA
Contact Current Rating 200 mA @ 50 V dc, 500 mA @ 32 V ac
Actuator Shape Square
Terminal Type Solder Lug
Actuator Type Cap
Contact AC Voltage Rating 250V
Case Colour Chrome
Contact DC Voltage Rating 50V
