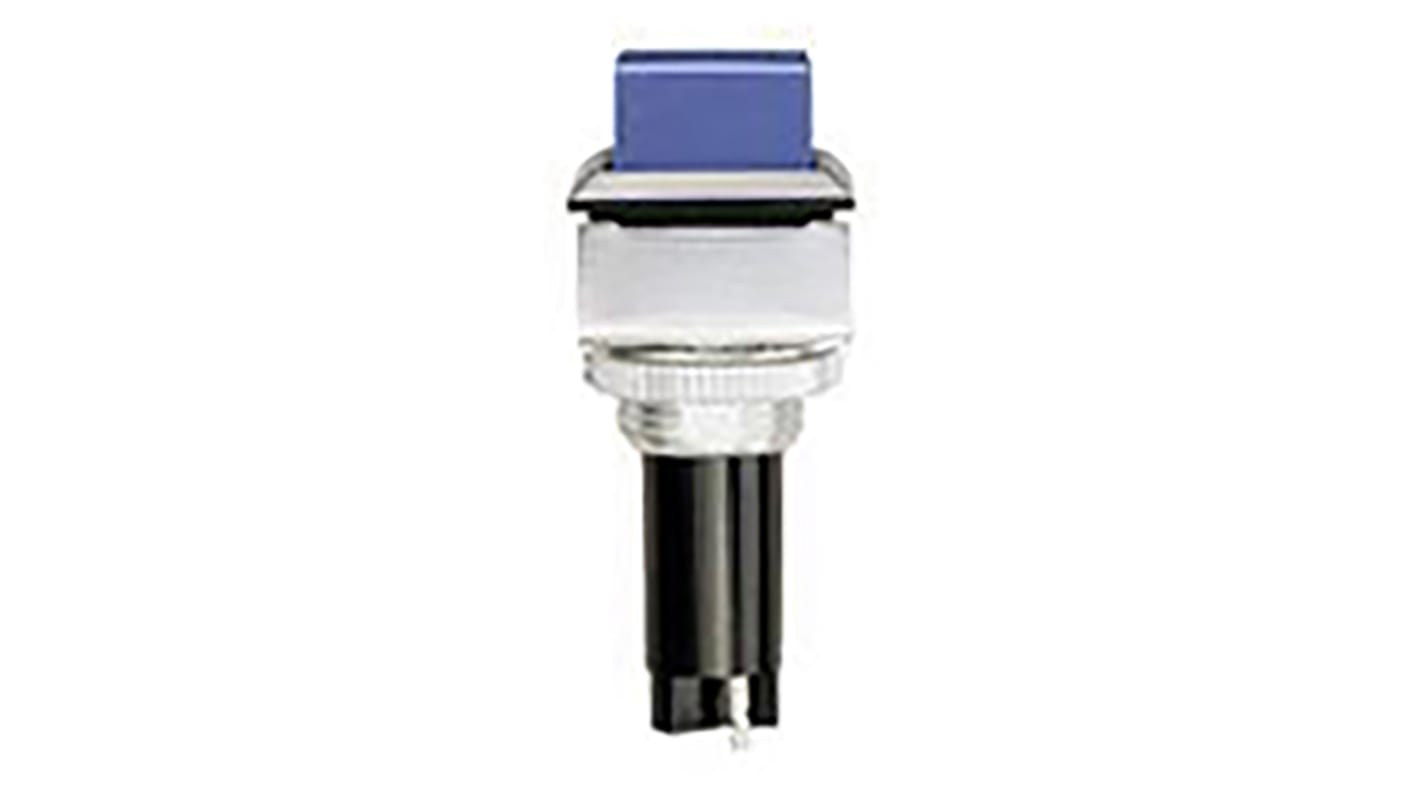

Grayhill Push Button Switch, Overtravel, Positive Feel, Panel Mount, SPST, 220V ac
- RS Stock No.:
- 877-7332
- Mfr. Part No.:
- 30-01-04-500-07
- Brand:
- Grayhill
Discontinued
- RS Stock No.:
- 877-7332
- Mfr. Part No.:
- 30-01-04-500-07
- Brand:
- Grayhill
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Grayhill | |
| Switch Operation | Overtravel, Positive Feel | |
| Illuminated | No | |
| Mounting Type | Panel Mount | |
| Contact Configuration | SPST | |
| Voltage Rating | 220V ac | |
| Contact Current Rating | 1 A | |
| Contact Material | Silver | |
| Contact AC Voltage Rating | 220V | |
| Case Colour | Black | |
| Manufacturer Part No. | 30-01-04-500-07 | |
| Panel Cut Out Width | 15.49mm | |
| Panel Cut Out Height | 15.49mm | |
| Terminal Type | Solder Lug | |
| Select all | ||
|---|---|---|
Brand Grayhill | ||
Switch Operation Overtravel, Positive Feel | ||
Illuminated No | ||
Mounting Type Panel Mount | ||
Contact Configuration SPST | ||
Voltage Rating 220V ac | ||
Contact Current Rating 1 A | ||
Contact Material Silver | ||
Contact AC Voltage Rating 220V | ||
Case Colour Black | ||
Manufacturer Part No. 30-01-04-500-07 | ||
Panel Cut Out Width 15.49mm | ||
Panel Cut Out Height 15.49mm | ||
Terminal Type Solder Lug | ||
- COO (Country of Origin):
- US
30 Series Pushbutton Switches (Decorator Line)
The 30 series Decorator Line of pushbuttons is perfectly suited for applications requiring a more premium look. They are available in either round or square and a selection of different colours. They are available with SPST contacts with the option of positive feel or SPDT and DPDT with momentary or alternating action.
Features:
Attractive Front Panel Bezels (6 choices)
Space-Saving: Only 11/16" Square
SPST with Option of Positive Feel
SPDT, DPDT with Momentary Contact or Alternate Action
Sturdy Metal Sleeve or Bushing and
Nut Provide Secure Mounting
Operating temperature range: -40 to +85 °C
Current rating: 1A at 115 Vac, 0.5A at 220 Vac
Attractive Front Panel Bezels (6 choices)
Space-Saving: Only 11/16" Square
SPST with Option of Positive Feel
SPDT, DPDT with Momentary Contact or Alternate Action
Sturdy Metal Sleeve or Bushing and
Nut Provide Secure Mounting
Operating temperature range: -40 to +85 °C
Current rating: 1A at 115 Vac, 0.5A at 220 Vac
Grayhill Pushbutton Switches
