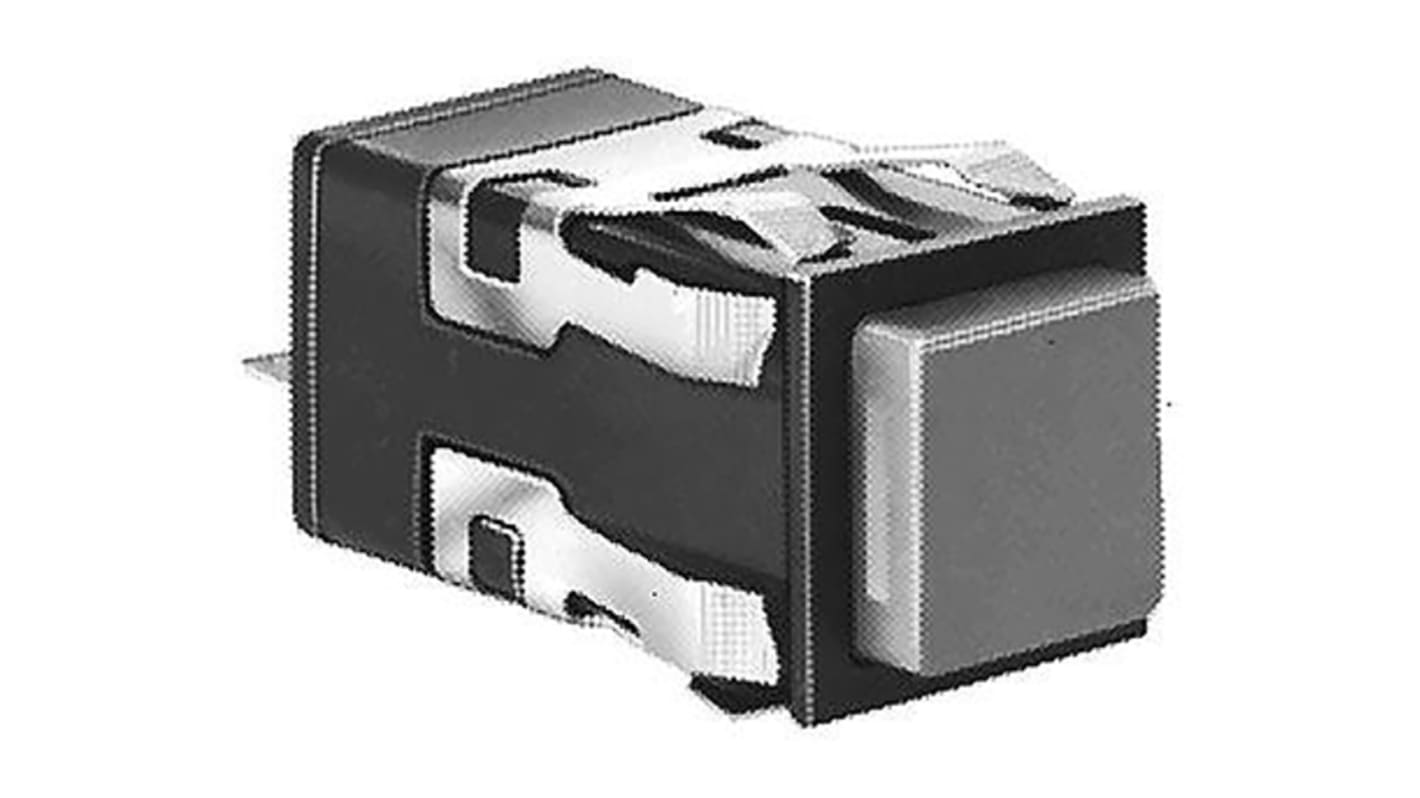

Honeywell Illuminated Push Button Switch, Latching, Panel Mount, DPDT, 24V
- RS Stock No.:
- 847-5673
- Mfr. Part No.:
- AML21CBE2AD
- Brand:
- Honeywell
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 847-5673
- Mfr. Part No.:
- AML21CBE2AD
- Brand:
- Honeywell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Switch Operation | Latching | |
| Illuminated | Yes | |
| Mounting Type | Panel Mount | |
| Contact Configuration | DPDT | |
| Voltage Rating | 24V | |
| Contact Current Rating | 2 A @ 24 V dc | |
| Contact Material | Silver | |
| Case Colour | Black | |
| Manufacturer Part No. | AML21CBE2AD | |
| Legend | Electronic Control | |
| Terminal Type | Solder/Quick Connect | |
| Panel Cut Out Height | 19.05mm | |
| Panel Cut Out Width | 19.05mm | |
| Select all | ||
|---|---|---|
Brand Honeywell | ||
Switch Operation Latching | ||
Illuminated Yes | ||
Mounting Type Panel Mount | ||
Contact Configuration DPDT | ||
Voltage Rating 24V | ||
Contact Current Rating 2 A @ 24 V dc | ||
Contact Material Silver | ||
Case Colour Black | ||
Manufacturer Part No. AML21CBE2AD | ||
Legend Electronic Control | ||
Terminal Type Solder/Quick Connect | ||
Panel Cut Out Height 19.05mm | ||
Panel Cut Out Width 19.05mm | ||
- COO (Country of Origin):
- US
Pushbutton Switches, Modular & Illuminated
Square or rectangular switches and matching indicators with 110 (0.110in) terminals
Illumination is by 6mm wedge bulbs, square types have one lamp circuit, rectangular have two
DPDT momentary or latching action
Illuminated or non-illuminated
Integral lamp puller for easy removal of the bulb
Illumination is by 6mm wedge bulbs, square types have one lamp circuit, rectangular have two
DPDT momentary or latching action
Illuminated or non-illuminated
Integral lamp puller for easy removal of the bulb
Note
Lenses to be ordered separately, see stk no. 335-738 typically.
Approvals
UL; CSA; VDE
