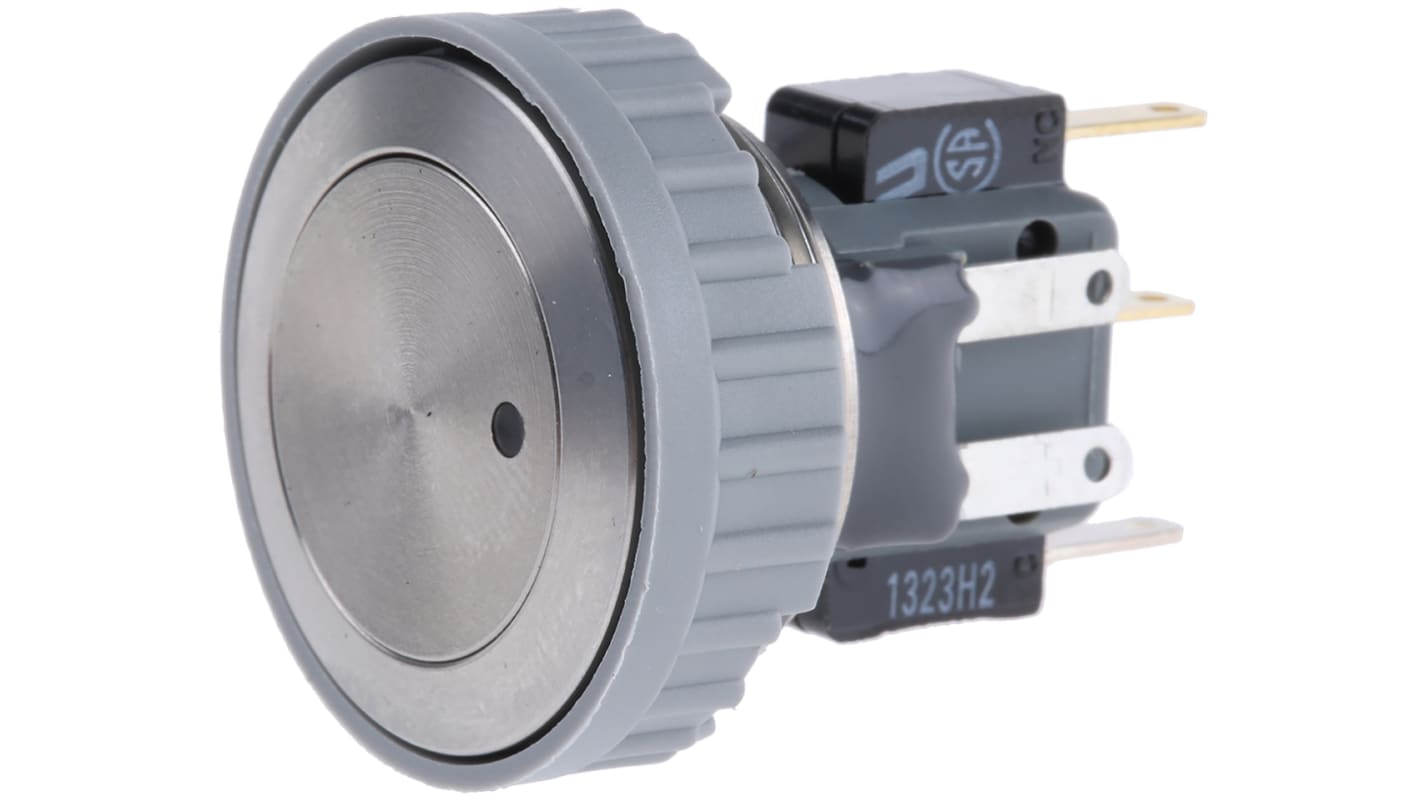

Schurter Illuminated Push Button Switch, Momentary, Panel Mount, 21.2mm Cutout, SPDT, Green LED, 250V ac, IP40

RS Stock No.:: 777-7530
Mfr. Part No.:: 1241.6633.1122000
Brand:: Schurter

Schurter Illuminated Push Button Switch, Momentary, Panel Mount, 21.2mm Cutout, SPDT, Green LED, 250V ac, IP40

View this category

Discontinued product

RS Stock No.:: 777-7530
Mfr. Part No.:: 1241.6633.1122000
Brand:: Schurter

Technical Reference

Datasheet

Legislation and Compliance

COO (Country of Origin):: CH

Product Details

Anti-Vandal M19 & M22 Push Button Switches - MSM Series

Stainless steel button, protected against vandals in accordance with IP40
Non-illuminated, pin-point illumination or ring illumination
Long service life of up to 1.5 million actuations
Small front structure of 1.7 mm
Flat connections: 2.8 mm
Supply voltage for ring illumination: 24 Vdc
Supply voltage for pin-point illumination: 2 Vdc

Specifications

Attribute	Value
Switch Operation	Momentary
Illuminated	Yes
Panel Cut Out Diameter	21.2mm
Mounting Type	Panel Mount
Push Button Colour	Silver
Contact Configuration	SPDT
Voltage Rating	250V ac
Push Button Style	Round
LED Colour	Green
IP Rating	IP40
Contact Current Rating	3 A @ 250 V ac
Contact Material	Silver
Manufacturer Part No.	1241.6633.1122000
Terminal Type	Solder Tag
