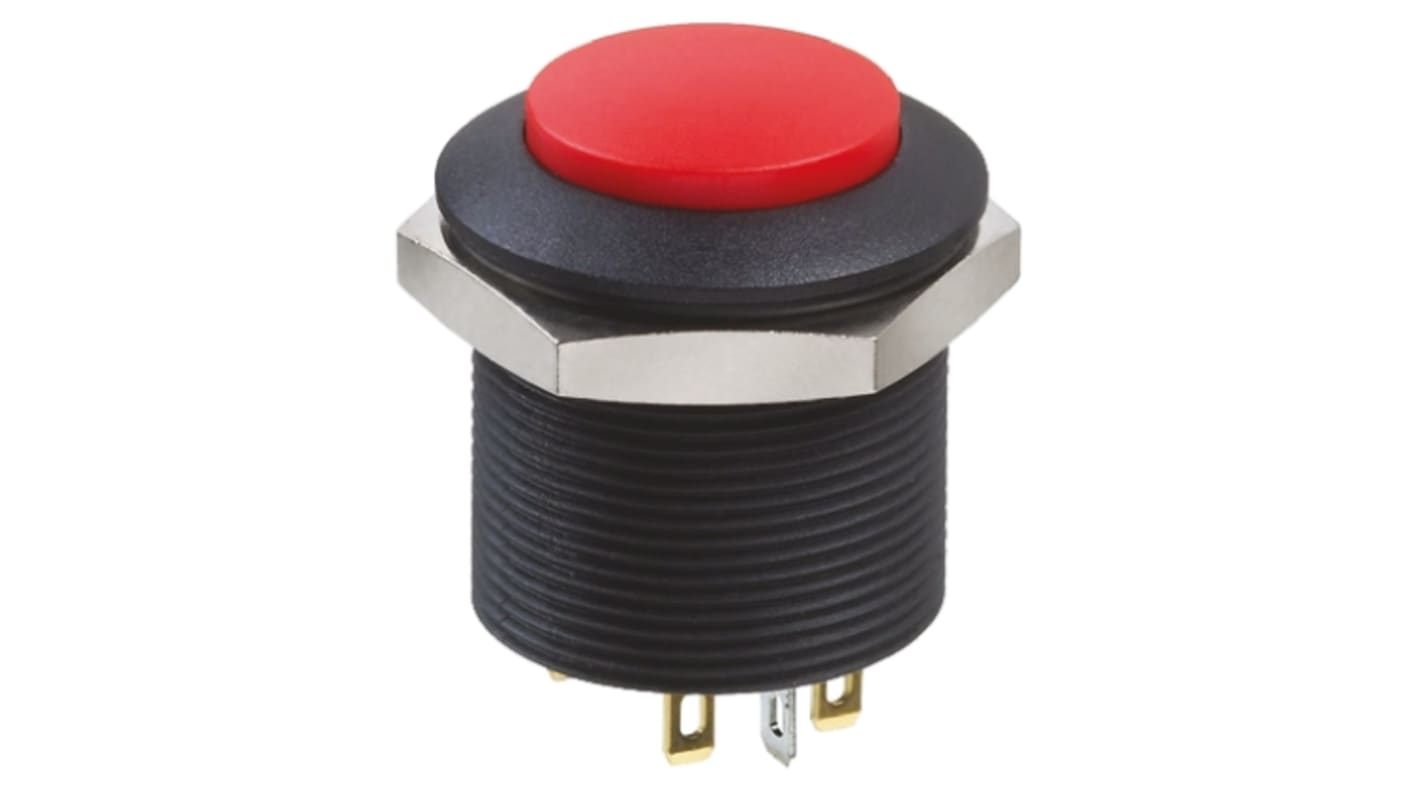

Apem Illuminated Push Button Switch, Latching, Panel Mount, 24.2mm Cutout, DPDT, Red LED, 12V dc

RS Stock No.:: 765-1286
Mfr. Part No.:: FPAR1D1462C1X
Brand:: APEM

Apem Illuminated Push Button Switch, Latching, Panel Mount, 24.2mm Cutout, DPDT, Red LED, 12V dc

View this category

Discontinued product

RS Stock No.:: 765-1286
Mfr. Part No.:: FPAR1D1462C1X
Brand:: APEM

Technical Reference

Legislation and Compliance

COO (Country of Origin):: FR

Product Details

Apem Illuminated Pushbutton Switches – FP Series

Apem FP series illuminated pushbutton switches are a highly visible solution for use within applications such as tractors, buses, trucks, cranes and general automotive. The FP pushbutton switch series is large but lightweight, easy to locate in poorly lit or dark environments and at the same time saves space due to the removal of need for a separate indicator light.

Suited for integrated designs
Large but lightweight
Momentary or latching

Specifications

Attribute	Value
Switch Operation	Latching
Illuminated	Yes
Panel Cut Out Diameter	24.2mm
Mounting Type	Panel Mount
Push Button Colour	Red
Contact Configuration	DPDT
Voltage Rating	12V dc
Push Button Style	Round
LED Colour	Red
Contact Current Rating	200 mA @ 12 V dc
Case Colour	Black
Manufacturer Part No.	FPAR1D1462C1X
Terminal Type	Solder
