RS PRO Single Pole Double Throw (SPDT) Momentary Green LED Push Button Switch, PCB, 32/50/125V ac

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

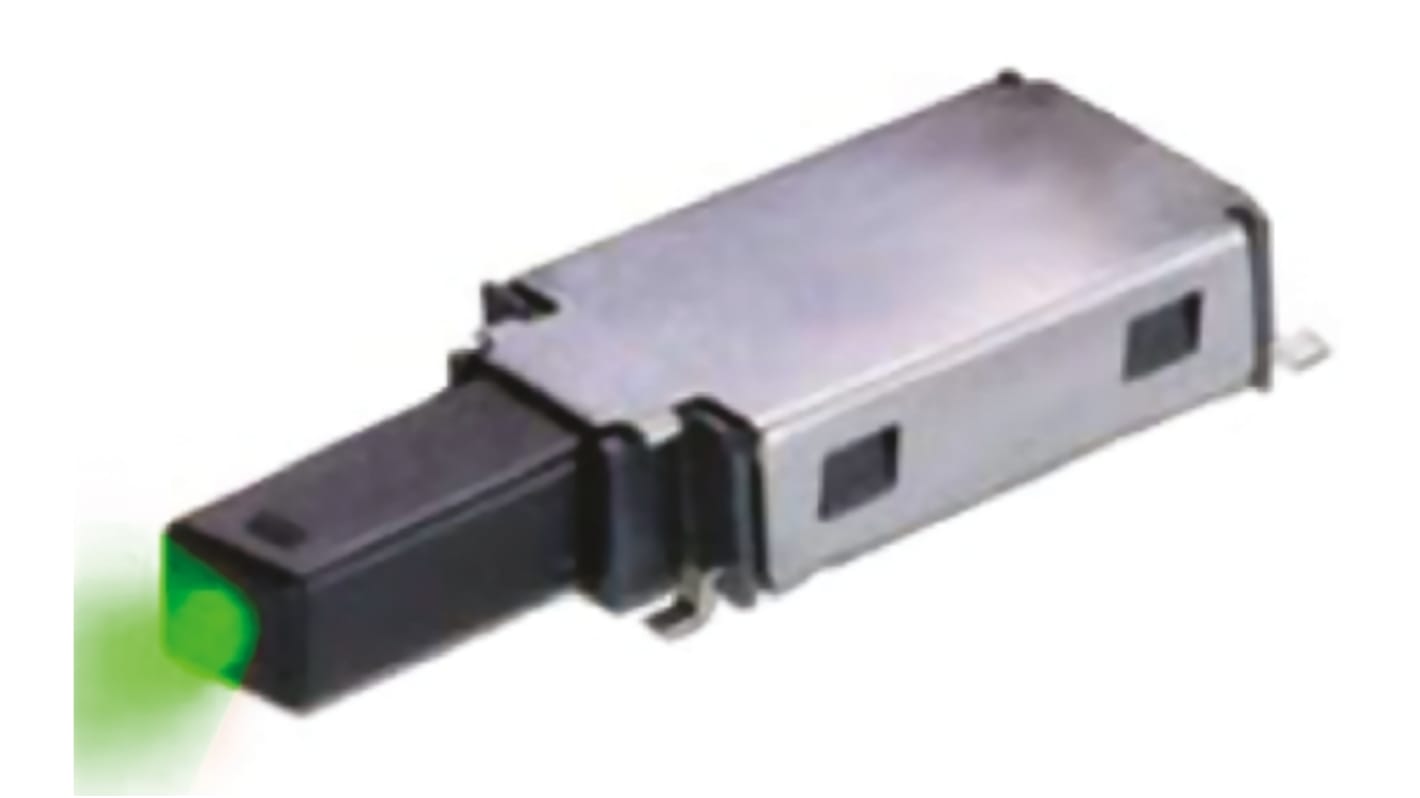

Surface Mount Illuminated Latching Push Button Switch

Illuminated latching switch with the LED built into the actuator.

Operating Life: 30000 cycles
Operating Force: 2.5 N at full travel
Latch Travel: 3.3 mm
Full Travel: 5.1 mm

Specifications
Attribute Value
Switch Operation Momentary
Mounting Type PCB
Illuminated Yes
Contact Configuration Single Pole Double Throw (SPDT)
LED Colour Green
Actuator Colour Black
Voltage Rating 32/50/125V ac
Contact Current Rating 250 mA
Actuator Shape Dome
Actuator Type Cap
Available to back order for despatch when stock is available
Price Each
£ 2.98
(exc. VAT)
£ 3.58
(inc. VAT)
Units
Per unit
1 - 9
£2.98
10 - 24
£2.86
25 - 49
£2.68
50 - 99
£2.53
100 +
£2.38
Packaging Options:
