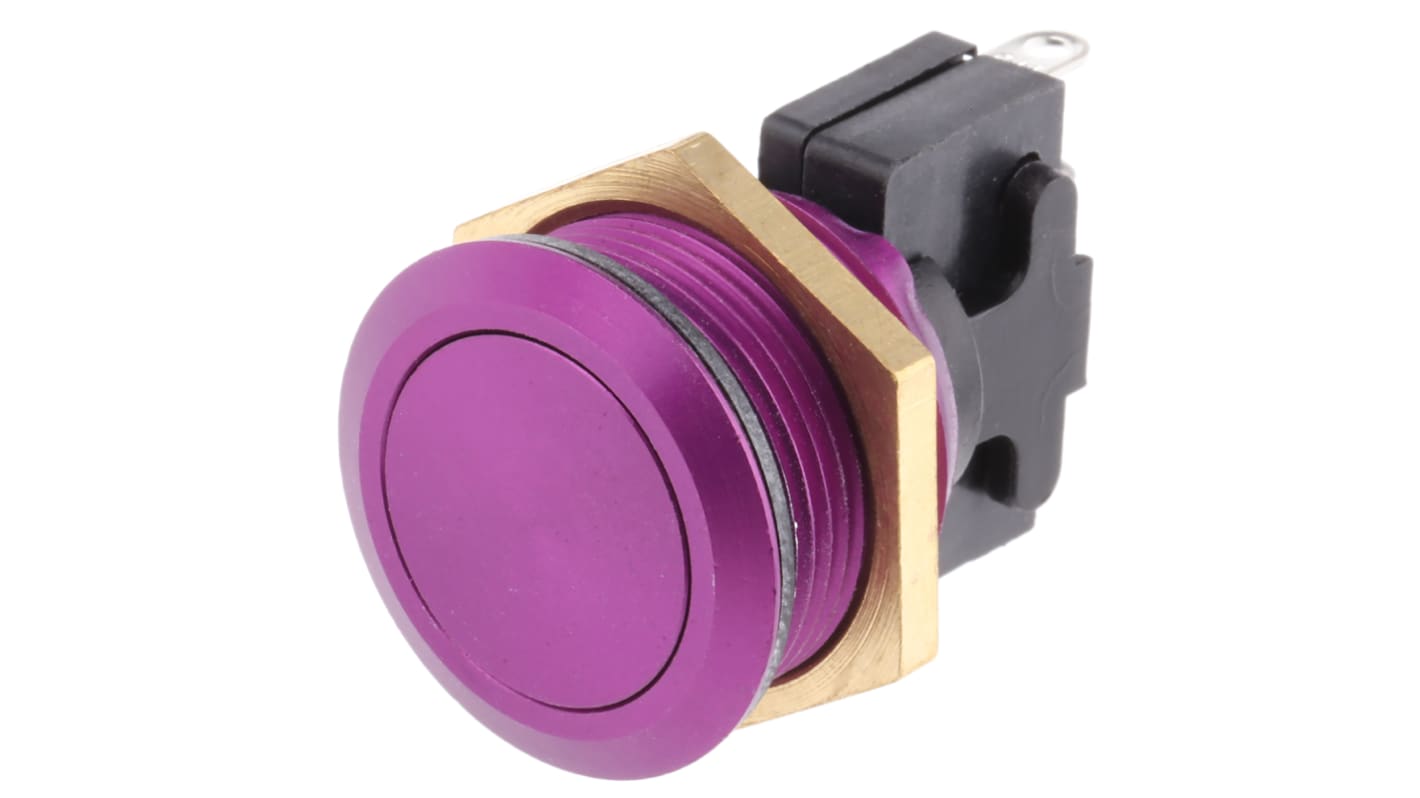

ITW Switches 76-95 Series Push Button Switch, Momentary, Panel Mount, 19.2mm Cutout, SPDT, 250V ac, IP67
- RS Stock No.:
- 405-5212
- Mfr. Part No.:
- 76-9513/4044P
- Brand:
- ITW Switches
31 In stock - FREE next working day delivery available
Added
Price Each
£18.48
(exc. VAT)
£22.18
(inc. VAT)
| Units | Per unit |
| 1 + | £18.48 |
- RS Stock No.:
- 405-5212
- Mfr. Part No.:
- 76-9513/4044P
- Brand:
- ITW Switches
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- BZ
Product Details
10A Robust Switches
This 76-95 Series are vandal resistant, push button switches from ITW. Their design is extremely rugged, making them particularly suited to applications where vandal resistance is necessary. They can be used in numerous applications. Such as:-
• Vandal resistant requirements
• Military environments
• Industrial environments
• Process control
• Elevators
• Medical instrumentation
• Fishing vessels
• Earth moving equipment
• Railway carriage equipment
• External security door controls
• Military environments
• Industrial environments
• Process control
• Elevators
• Medical instrumentation
• Fishing vessels
• Earth moving equipment
• Railway carriage equipment
• External security door controls
Features and Benefits
• Vandal resistant – designed to withstand impacts of significant force.
• Panel sealed to IP67 – (totally protected against dust and protected against the effects of temporary immersion between 15 cm and 1 m. Duration of test 30 minutes).
• Stainless steel body and buttons – resists corrosion, heat damage and chemical damage.
• Front or rear mount versions – both types designed to reduce the possibility of an object being forced behind the switch to lever it from its mounting.
• Momentary action push button switch - only makes electrical contact whilst held in that position, once you let go the switch returns it to the off position.
• Panel sealed to IP67 – (totally protected against dust and protected against the effects of temporary immersion between 15 cm and 1 m. Duration of test 30 minutes).
• Stainless steel body and buttons – resists corrosion, heat damage and chemical damage.
• Front or rear mount versions – both types designed to reduce the possibility of an object being forced behind the switch to lever it from its mounting.
• Momentary action push button switch - only makes electrical contact whilst held in that position, once you let go the switch returns it to the off position.
Supplied with
Mounting hardware
Specifications
Attribute | Value |
|---|---|
| Switch Operation | Momentary |
| Illuminated | No |
| Panel Cut Out Diameter | 19.2mm |
| Mounting Type | Panel Mount |
| Contact Configuration | SPDT |
| Voltage Rating | 250V ac |
| Push Button Style | Round |
| IP Rating | IP67 |
| Series | 76-95 |
| Contact Current Rating | 10 A @ 250 V ac |
| Contact Material | Fine Silver |
| Contact AC Voltage Rating | 250V |
| Manufacturer Part No. | 76-9513/4044P |
| Contact DC Voltage Rating | 5V |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +105°C |
| Terminal Type | Solder |
| Operating Temperature Range | -30 → +105°C |
