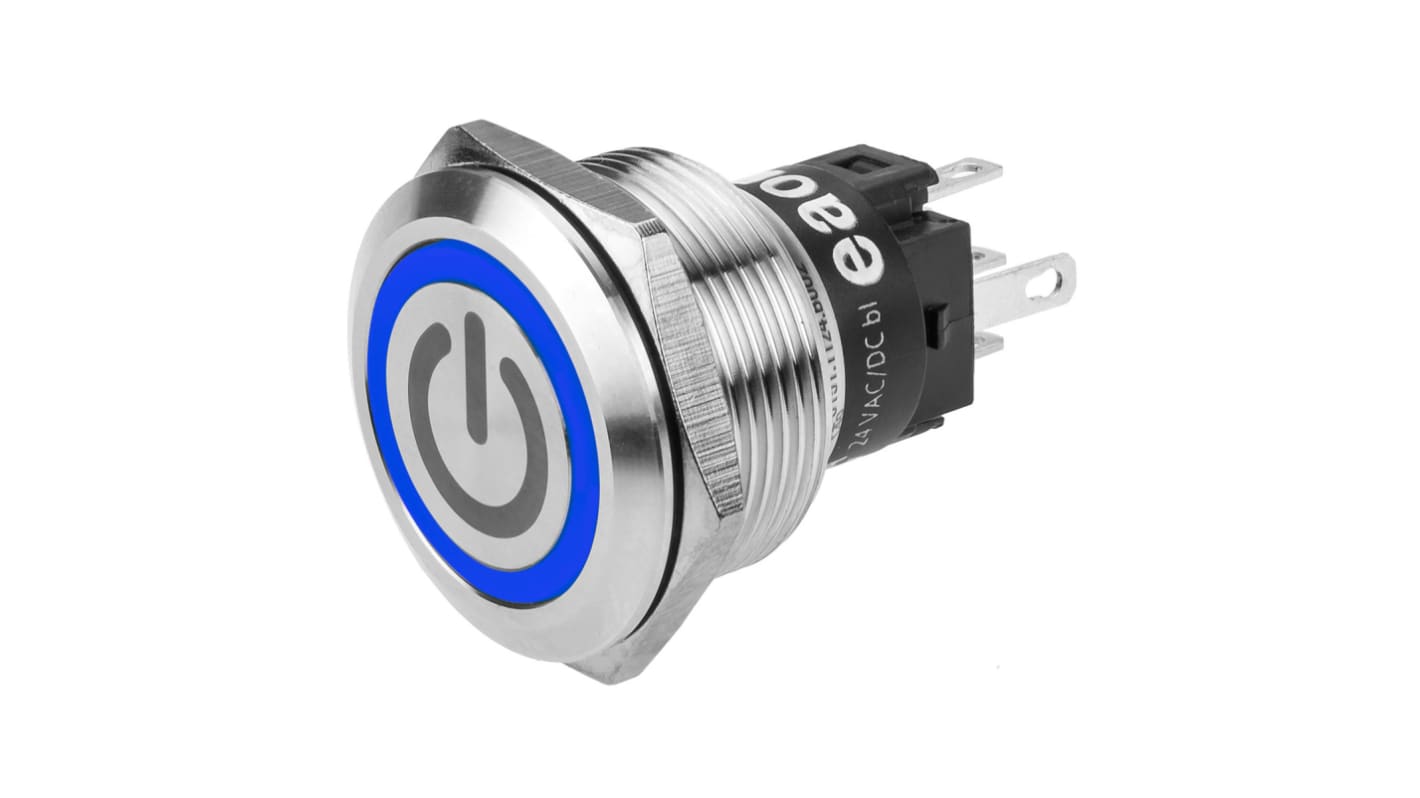

EAO 82 Series Illuminated Push Button Switch, Momentary, Panel Mount, 22.3mm Cutout, SPDT, Blue LED, 240V, IP65, IP67
- RS Stock No.:
- 194-2064
- Mfr. Part No.:
- 82-6151.1123.B002
- Brand:
- EAO
Subtotal (1 unit)*
£21.70
(exc. VAT)
£26.04
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 20 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £21.70 |
*price indicative
- RS Stock No.:
- 194-2064
- Mfr. Part No.:
- 82-6151.1123.B002
- Brand:
- EAO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EAO | |
| Switch Operation | Momentary | |
| Illuminated | Yes | |
| Series | 82 | |
| Panel Cut Out Diameter | 22.3mm | |
| Mounting Type | Panel Mount | |
| Contact Configuration | SPDT | |
| Voltage Rating | 240V | |
| Push Button Style | Round | |
| LED Colour | Blue | |
| IP Rating | IP65, IP67 | |
| Contact Current Rating | 3A | |
| Contact Material | Silver Alloy | |
| Contact DC Voltage Rating | 240V | |
| Legend | Standby Symbol | |
| Contact AC Voltage Rating | 240V | |
| Case Colour | Silver | |
| Manufacturer Part No. | 82-6151.1123.B002 | |
| Maximum Operating Temperature | +70°C | |
| Terminal Type | Plug In, Solder | |
| Operating Temperature Range | -30°C to +70°C | |
| Minimum Operating Temperature | -30°C | |
Select all | ||
|---|---|---|
Brand EAO | ||
Switch Operation Momentary | ||
Illuminated Yes | ||
Series 82 | ||
Panel Cut Out Diameter 22.3mm | ||
Mounting Type Panel Mount | ||
Contact Configuration SPDT | ||
Voltage Rating 240V | ||
Push Button Style Round | ||
LED Colour Blue | ||
IP Rating IP65, IP67 | ||
Contact Current Rating 3A | ||
Contact Material Silver Alloy | ||
Contact DC Voltage Rating 240V | ||
Legend Standby Symbol | ||
Contact AC Voltage Rating 240V | ||
Case Colour Silver | ||
Manufacturer Part No. 82-6151.1123.B002 | ||
Maximum Operating Temperature +70°C | ||
Terminal Type Plug In, Solder | ||
Operating Temperature Range -30°C to +70°C | ||
Minimum Operating Temperature -30°C | ||
Vandal-resistant: Impact resistant
Front protection
Gold-plated silver contacts available for low voltages and currents
Optional illumination and laser markings
Excellent tactile feedback
Long service life: > 1 million cycles of operation
Stainless steel anodised aluminium or brass coloured switches
16 mm, 19 mm or 22 mm mounting
Application
Exposed public areas: e.g. ticketing and vending machines
Industrial: Machinery and factory equipment
Lifting and moving: Elevators and people movers
Building management: Access control and security systems
Audio and video equipment
Medical equipment
Food Industry (corrosion and acid resistant versions available on request)
Front protection
Gold-plated silver contacts available for low voltages and currents
Optional illumination and laser markings
Excellent tactile feedback
Long service life: > 1 million cycles of operation
Stainless steel anodised aluminium or brass coloured switches
16 mm, 19 mm or 22 mm mounting
Application
Exposed public areas: e.g. ticketing and vending machines
Industrial: Machinery and factory equipment
Lifting and moving: Elevators and people movers
Building management: Access control and security systems
Audio and video equipment
Medical equipment
Food Industry (corrosion and acid resistant versions available on request)
