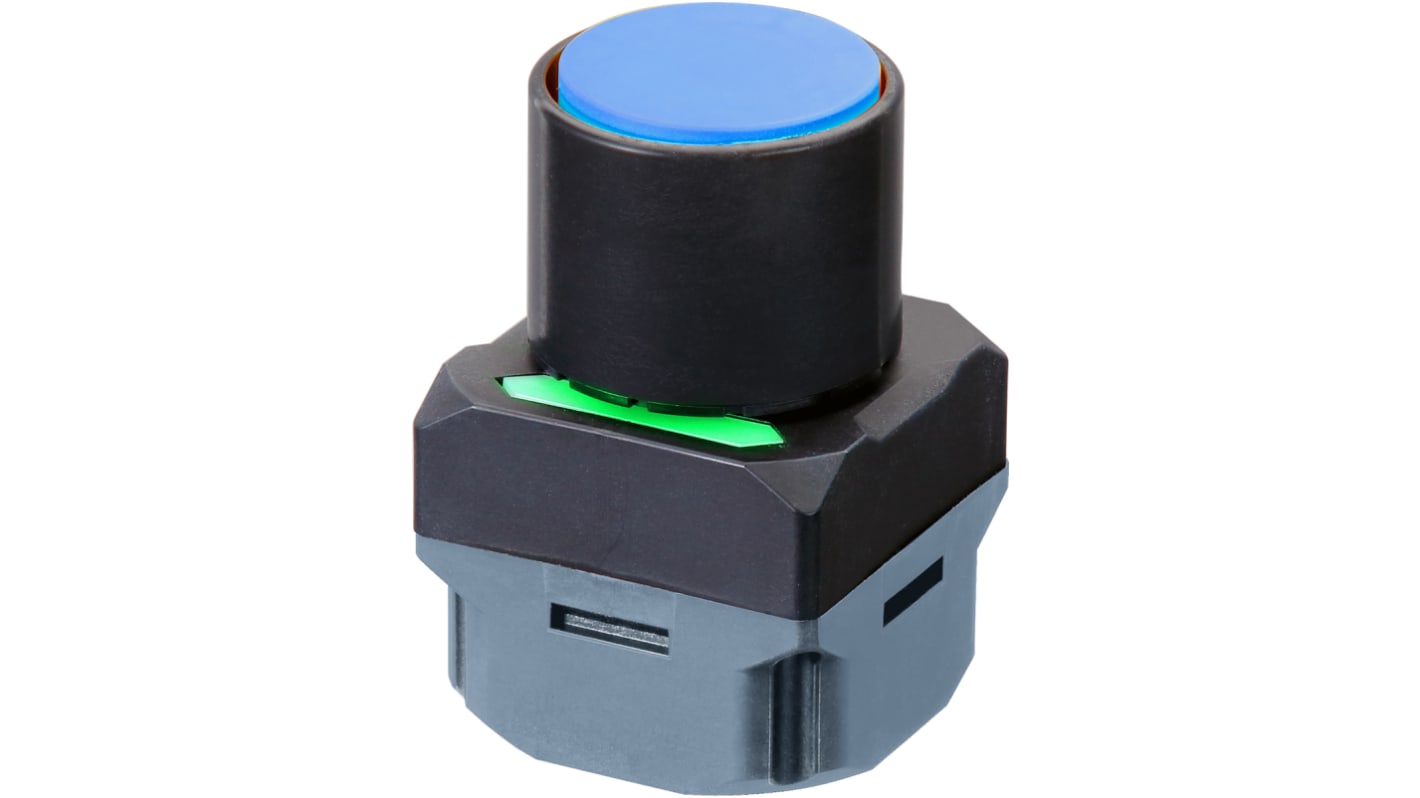

Omron A2W Series Push Button Complete Unit, IP65
- RS Stock No.:
- 183-0071
- Mfr. Part No.:
- A2W-TB-WC1 EU2AB
- Brand:
- Omron
Subtotal (1 unit)*
£138.67
(exc. VAT)
£166.40
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £138.67 |
*price indicative
- RS Stock No.:
- 183-0071
- Mfr. Part No.:
- A2W-TB-WC1 EU2AB
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Series | A2W | |
| Push Button Colour | Blue | |
| Push Button Style | Round | |
| IP Rating | IP65 | |
| Push Button Diameter | 40mm | |
| Manufacturer Part No. | A2W-TB-WC1 EU2AB | |
| Minimum Operating Temperature | -10°C | |
| Maximum DC Voltage | 24V | |
| Operating Temperature Range | - 10 → + 55°C | |
| Terminal Type | Wireless | |
| Body Material | Polycarbonate | |
| Maximum Operating Temperature | +55°C | |
Select all | ||
|---|---|---|
Brand Omron | ||
Series A2W | ||
Push Button Colour Blue | ||
Push Button Style Round | ||
IP Rating IP65 | ||
Push Button Diameter 40mm | ||
Manufacturer Part No. A2W-TB-WC1 EU2AB | ||
Minimum Operating Temperature -10°C | ||
Maximum DC Voltage 24V | ||
Operating Temperature Range - 10 → + 55°C | ||
Terminal Type Wireless | ||
Body Material Polycarbonate | ||
Maximum Operating Temperature +55°C | ||
- COO (Country of Origin):
- JP
Wireless switch using sub-GHz band Combines wireless reliability and ease-of-use in consideration of work environments
A Wireless Call Button without a Battery.
8 pushbuttons can be assigned to one receiver unit
Each receiver has 8 transistor outputs (one-shot operation)
A pushbutton can be assigned to multiple outputs of a receiver
Self generated power created by the button operation eliminates the need for a power supply or batteries
Wireless communication is confirmed with a coloured LED indicator on the pushbuttons
922.5MHz frequency band reduces interference, providing a better signal in locations with obstacles
A high-sensitivity magnetic-base antenna is an option when installing the receiver inside a control panel
Applications
Notifying ON/OFF information (i.e. Call a supervisor, missing item information, work completion notification)
Instructions to automated guided vehicles (i.e Instruction to stop or go)
Instructions for manned guided vehicles (i.e. Instructions for opening and closing shutters or doors of warehouses, fork-lifts)
Instructions to a machine (i.e. Stopping, opening and closing doors)
