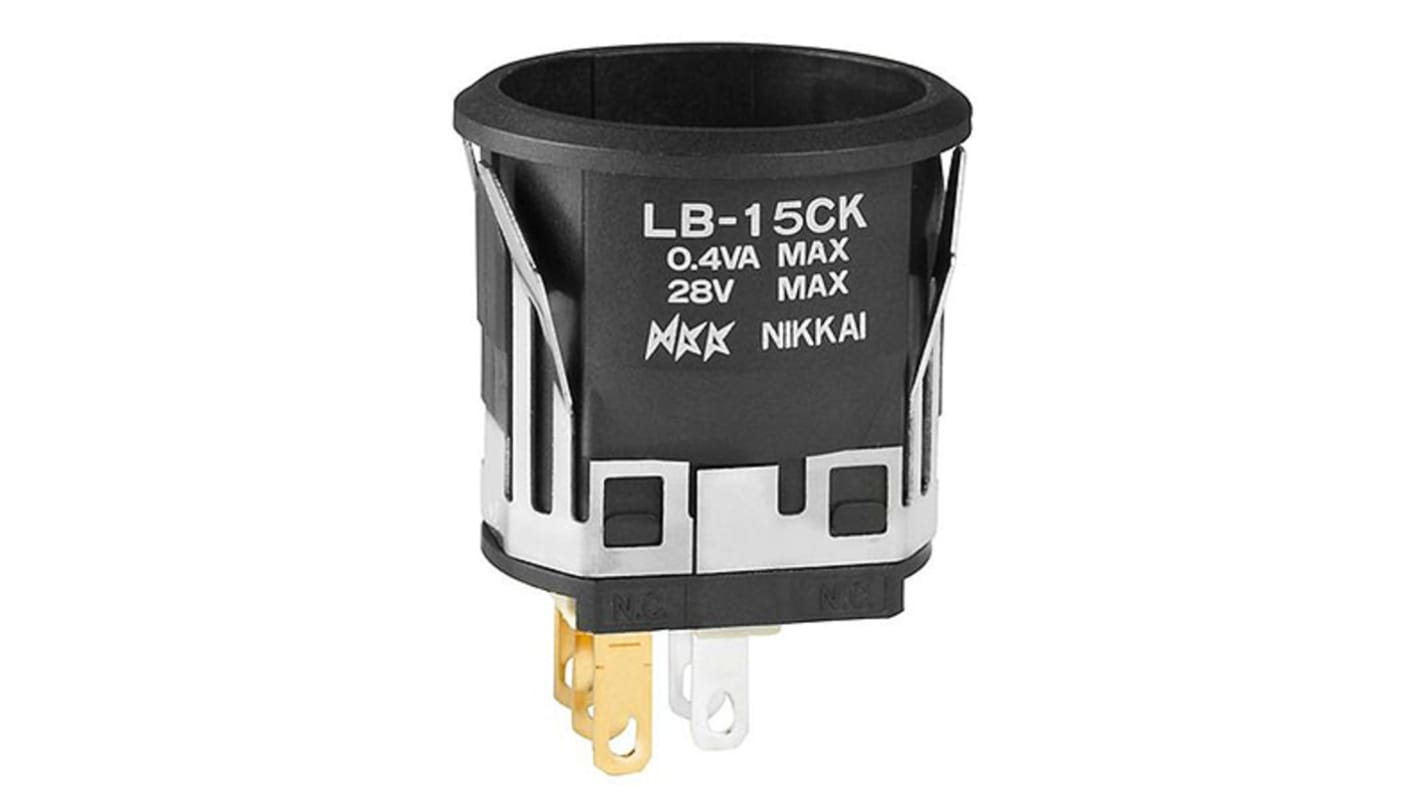

NKK Switches Push Button Switch, Momentary, Snap-In, 22mm Cutout, SPDT, 30 V dc, 125V ac, IP65
- RS Stock No.:
- 125-1666
- Mfr. Part No.:
- LB15CKW01
- Brand:
- NKK Switches
Discontinued
- RS Stock No.:
- 125-1666
- Mfr. Part No.:
- LB15CKW01
- Brand:
- NKK Switches
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NKK Switches | |
| Switch Operation | Momentary | |
| Illuminated | No | |
| Panel Cut Out Diameter | 22mm | |
| Mounting Type | Snap-In | |
| Contact Configuration | SPDT | |
| Voltage Rating | 30 V dc, 125 V ac, 250V ac | |
| IP Rating | IP65 | |
| Contact Current Rating | 3 A | |
| Contact Material | Copper, Silver Alloy | |
| Contact AC Voltage Rating | 125 V, 250V | |
| Contact DC Voltage Rating | 30V | |
| Case Colour | Black | |
| Manufacturer Part No. | LB15CKW01 | |
| Terminal Type | Quick Connect, Solder Lug | |
| Select all | ||
|---|---|---|
Brand NKK Switches | ||
Switch Operation Momentary | ||
Illuminated No | ||
Panel Cut Out Diameter 22mm | ||
Mounting Type Snap-In | ||
Contact Configuration SPDT | ||
Voltage Rating 30 V dc, 125 V ac, 250V ac | ||
IP Rating IP65 | ||
Contact Current Rating 3 A | ||
Contact Material Copper, Silver Alloy | ||
Contact AC Voltage Rating 125 V, 250V | ||
Contact DC Voltage Rating 30V | ||
Case Colour Black | ||
Manufacturer Part No. LB15CKW01 | ||
Terminal Type Quick Connect, Solder Lug | ||
- COO (Country of Origin):
- CN
NKK Illuminated Pushbutton Switches LB Series
The LB Series of illuminated pushbutton lights have a light diffusion and filtering system designed specifically for these products. They produce bright full illumination with front panel relamping.
Features and Benfits
Spot illumination
Super bright LED's
Stainless steel clips
Latchdown feature
Snap action contact mechanism
Combination solder lug
Epoxy sealed quick connect terminals
Compact switch design
Super bright LED's
Stainless steel clips
Latchdown feature
Snap action contact mechanism
Combination solder lug
Epoxy sealed quick connect terminals
Compact switch design
Standards
IP65, IEC60529, UL File No. E44145, CSA File No. 023535_0_000
NKK Illuminated Pushbutton Switches
