RS PRO Double Pole Double Throw (DPDT) Latching Red LED Push Button Switch, IP67, 19.2 (Dia.)mm, Panel Mount, 250V ac

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

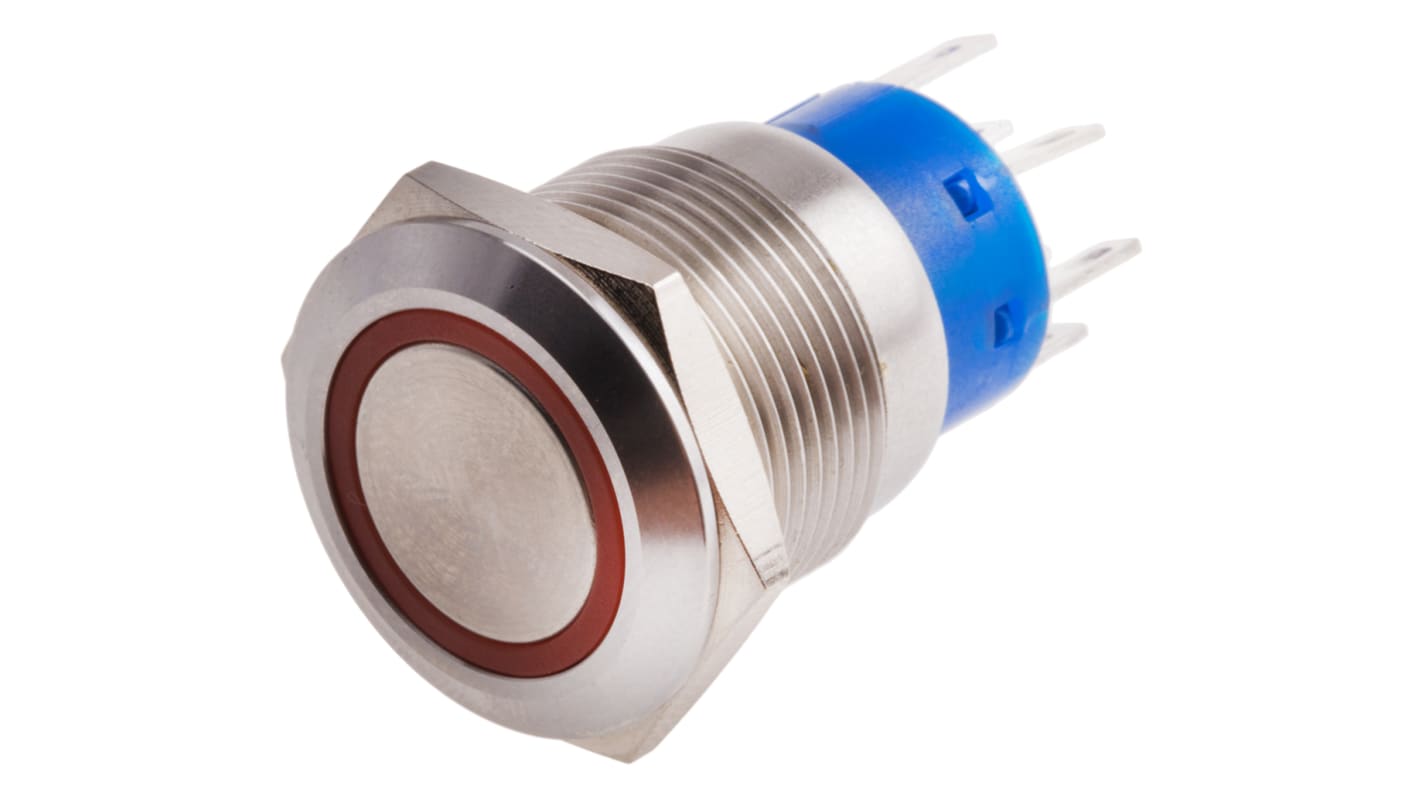

RS Pro 19 mm Stainless Steel DPDT Latching Push Button

Features and Benefits

•IP67 rated.
•Short design, allowing installation into space - restricted applications conventional switches aren't suitable.
•Silver plated copper contacts, for a firm connection.

Typical Applications

•Medical equipment.
•Industrial control gear.
•Communications equipment.
•Premium hobbyist switching.

Specifications
Attribute Value
Switch Operation Latching
Mounting Type Panel Mount
Illuminated Yes
Contact Configuration Double Pole Double Throw (DPDT)
Panel Cut Out Size 19.2 (Dia.)mm
Panel Cut Out Diameter 19.2mm
LED Colour Red
IP Rating IP67
Actuator Colour Silver
Voltage Rating 250V ac
Contact Current Rating 5 A
Actuator Shape Round
Terminal Type Solder Pin
Case Colour Natural
Contact AC Voltage Rating 250V
Actuator Type Flat
76 In stock for FREE next working day delivery
Price Each
£ 10.44
(exc. VAT)
£ 12.53
(inc. VAT)
Units
Per unit
1 - 9
£10.44
10 - 24
£9.91
25 - 49
£9.51
50 - 99
£9.12
100 +
£8.84
