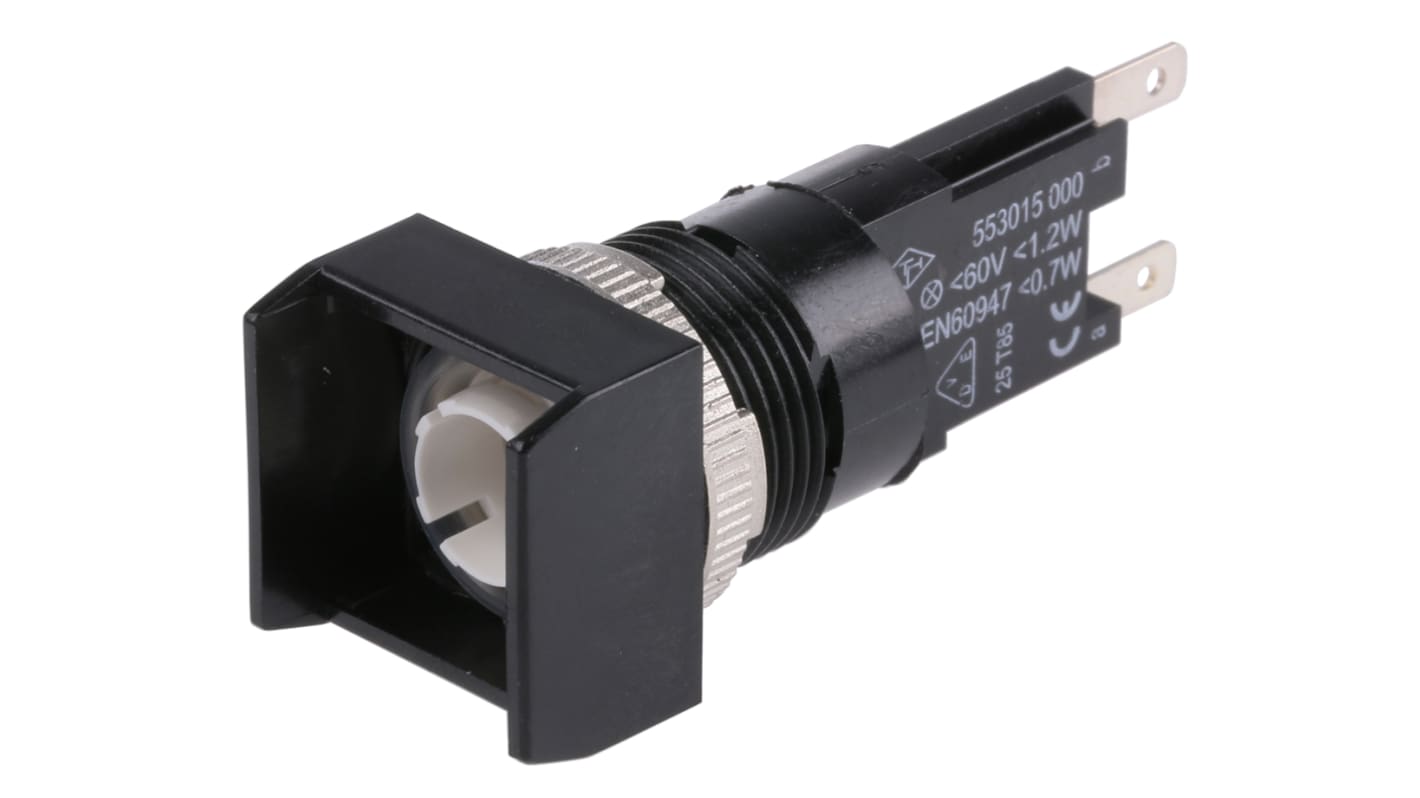

Push Button Switch, IP67, Panel Mount
- RS Stock No.:
- 350-866
- Mfr. Part No.:
- 553015-601
- Brand:
- Saia-Burgess
3 In stock - FREE next working day delivery available
Added
Price Each
£7.58
(exc. VAT)
£9.10
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £7.58 |
| 5 - 9 | £7.35 |
| 10 - 24 | £7.13 |
| 25 - 49 | £6.75 |
| 50 + | £6.22 |
- RS Stock No.:
- 350-866
- Mfr. Part No.:
- 553015-601
- Brand:
- Saia-Burgess
Legislation and Compliance
- COO (Country of Origin):
- PL
Product Details
IP67 Switch Mechanisms & Indicators
Panel mounting switches in modular format
Separate Lenses, contact elements and indicator lamps required
Two contact elements may be fitted to each unit giving up to 4 N/O and 4 N/C contacts
Contact ratings: 4A @ 24Vdc, 5A @ 250 Vac
Standard 16mm diameter mounting
Separate Lenses, contact elements and indicator lamps required
Two contact elements may be fitted to each unit giving up to 4 N/O and 4 N/C contacts
Contact ratings: 4A @ 24Vdc, 5A @ 250 Vac
Standard 16mm diameter mounting
Note
Illuminated switches, standard
Range of illuminated panel-mounted switches available in square, rectangular and circular momentary or latching versions. Square or rectangular lamp terminals are also available. Suitable lamps: T5·5, see the Optoelectronics / Indicators section.
Specifications
Attribute | Value |
|---|---|
| Mounting Type | Panel Mount |
| Operating Temperature Range | -25 → +85°C |
| IP Rating | IP67 |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +85°C |
| Terminal Type | Tab |
