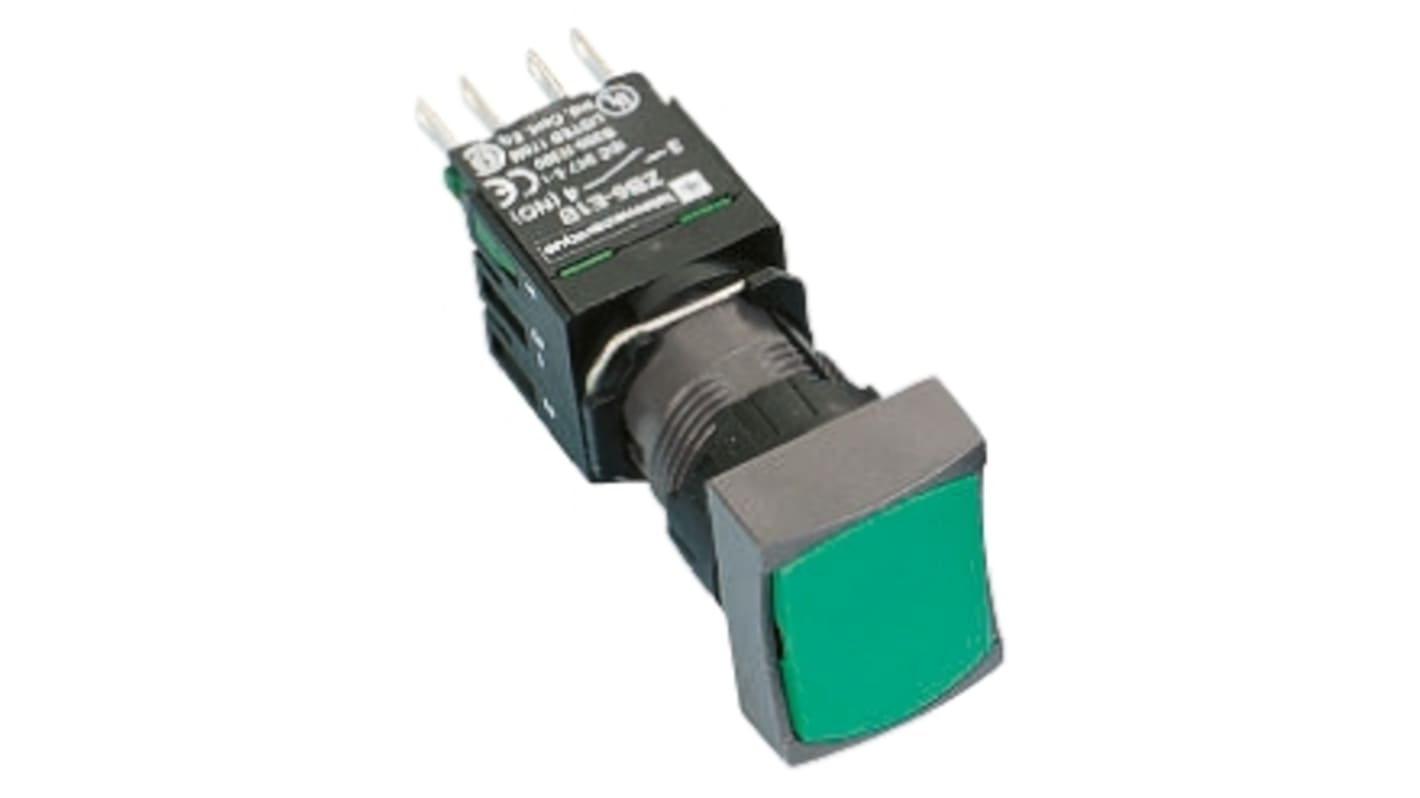

Schneider Electric Harmony Series Illuminated Push Button, Slow Brake, Panel Mount, 16mm Cutout, SPST, 250V, IP65
- RS Stock No.:
- 177-541
- Mfr. Part No.:
- XB6CW3B1B
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£25.53
(exc. VAT)
£30.64
(inc. VAT)
FREE delivery for orders over £50.00
- 5 unit(s) shipping from 27 October 2025
Units | Per unit |
|---|---|
| 1 + | £25.53 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 177-541
- Mfr. Part No.:
- XB6CW3B1B
- Brand:
- Schneider Electric
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Switch Operation | Slow Brake | |
| Illuminated | Yes | |
| Panel Cut Out Diameter | 16mm | |
| Series | Harmony | |
| Mounting Type | Panel Mount | |
| Push Button Colour | Green | |
| Contact Configuration | SPST | |
| Voltage Rating | 250V | |
| Push Button Style | Square | |
| IP Rating | IP65 | |
| Push Button Diameter | 18mm | |
| Push Button Material | Plastic (Bezel) | |
| Contact Current Rating | 3A | |
| Better World Verification | Green Premium | |
| Contact Material | Silver Alloy | |
| Better World Product | Yes | |
| Manufacturer Part No. | XB6CW3B1B | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +70°C | |
| Terminal Type | Quick Connect | |
| Maximum DC Voltage | 250V | |
| Panel Cut Out Height | 18mm | |
| Panel Cut Out Width | 18mm | |
| Operating Temperature Range | -25 → +70°C | |
| Maximum AC Voltage | 240V | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Switch Operation Slow Brake | ||
Illuminated Yes | ||
Panel Cut Out Diameter 16mm | ||
Series Harmony | ||
Mounting Type Panel Mount | ||
Push Button Colour Green | ||
Contact Configuration SPST | ||
Voltage Rating 250V | ||
Push Button Style Square | ||
IP Rating IP65 | ||
Push Button Diameter 18mm | ||
Push Button Material Plastic (Bezel) | ||
Contact Current Rating 3A | ||
Better World Verification Green Premium | ||
Contact Material Silver Alloy | ||
Better World Product Yes | ||
Manufacturer Part No. XB6CW3B1B | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +70°C | ||
Terminal Type Quick Connect | ||
Maximum DC Voltage 250V | ||
Panel Cut Out Height 18mm | ||
Panel Cut Out Width 18mm | ||
Operating Temperature Range -25 → +70°C | ||
Maximum AC Voltage 240V | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
Schneider Electric Harmony XB6 Series Push Button, 16mm Panel Cut Out Diameter, SPST Contact Configuration - XB6CW3B1B
Features & Benefits
• SPST switch configuration allows straightforward on/off operation
• Quick connect terminal design enhances installation and maintenance
• Compact 16mm mounting size fits into constrained spaces
• IP65 rating protects against dust and water ingress
• Silver alloy contacts provide high conductivity and durability
Applications
• Used in automation systems for user interfaces
• Suitable for outdoor needing moisture resistance
• Appropriate for emergency stop functions in production lines
• Facilitates control solutions in electrical equipment
