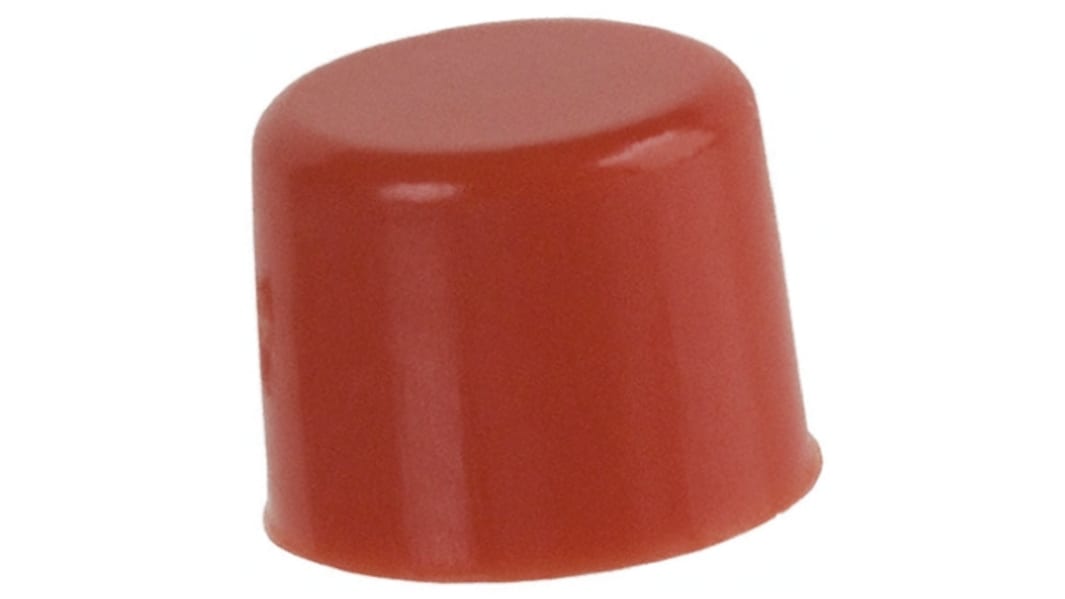

Red Push Button Cap, for use with E010 Series (sealed Momentary Push Button Switch), Cap

  • RS Stock No. 174-6145
  • Mfr. Part No. 752703000
  • Brand C & K
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

80 Series Pushbutton Switches & Accessories

These momentary snap-action push button switches all feature on - momentary on contacts.
A selection of contact configurations are available along with caps, frames washers and nuts.

Typical Applications:
Instrumentation
Computer peripherals
Telecommunications equipment

Momentary pushbutton switches
Solder tags
Plunger Ø 3.1mm
Positive tactile feel
Multi-positions available
Wide variety of termination options
Epoxy terminal seal compatible with bottom wash cleaning

Note

Accessories available include: Caps, Frames, Washers and Mounting Nuts.

//media.rs-online.com/t_line/LF174316-11.gif
Specifications
Attribute Value
Accessory Type Cap
For Use With E010 Series (sealed Momentary Push Button Switch)
Cap Colour Red
850 In stock for FREE next working day delivery
Price Each (In a Pack of 5)
£ 0.496
(exc. VAT)
£ 0.595
(inc. VAT)
Units
Per unit
Per Pack*
5 - 120
£0.496
£2.48
125 - 495
£0.414
£2.07
500 - 1245
£0.392
£1.96
1250 - 2495
£0.378
£1.89
2500 +
£0.368
£1.84
*price indicative
